CPU2006 license: | 9019 | Test date: | Oct-2014 |
---|---|---|---|
Test sponsor: | Cisco Systems | Hardware Availability: | Sep-2014 |
Tested by: | Cisco Systems | Software Availability: | Sep-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2699 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 36 cores, 2 chips, 18 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 45 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | 1 x 400GB SAS, SSD 6GB/s |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

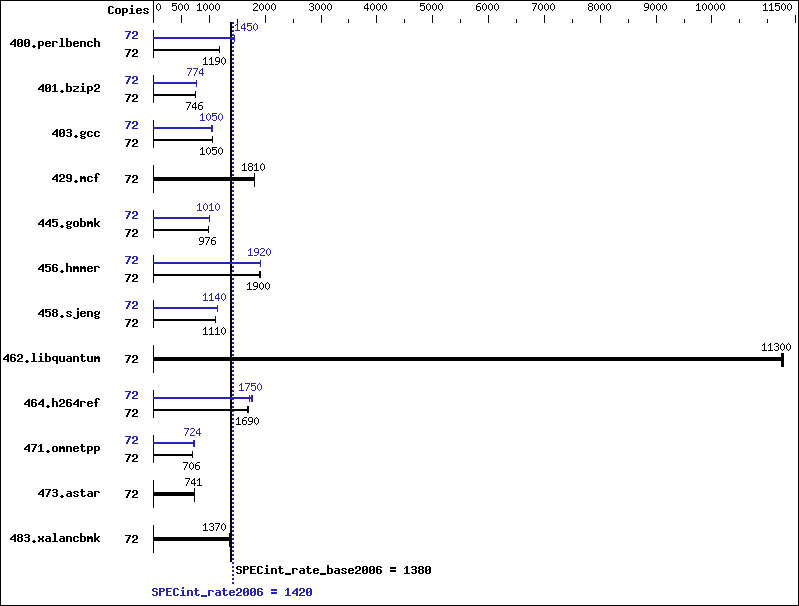

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 72 | 593 | 1190 | 594 | 1190 | 594 | 1190 | 72 | 486 | 1450 | 485 | 1450 | 486 | 1450 |
401.bzip2 | 72 | 931 | 746 | 932 | 746 | 932 | 746 | 72 | 897 | 774 | 898 | 774 | 897 | 775 |
403.gcc | 72 | 547 | 1060 | 550 | 1050 | 551 | 1050 | 72 | 552 | 1050 | 553 | 1050 | 556 | 1040 |
429.mcf | 72 | 362 | 1810 | 363 | 1810 | 361 | 1820 | 72 | 362 | 1810 | 363 | 1810 | 361 | 1820 |
445.gobmk | 72 | 774 | 976 | 774 | 976 | 773 | 977 | 72 | 750 | 1010 | 752 | 1000 | 751 | 1010 |
456.hmmer | 72 | 354 | 1900 | 353 | 1900 | 350 | 1920 | 72 | 350 | 1920 | 350 | 1920 | 351 | 1910 |
458.sjeng | 72 | 787 | 1110 | 786 | 1110 | 786 | 1110 | 72 | 761 | 1140 | 761 | 1140 | 761 | 1140 |
462.libquantum | 72 | 132 | 11300 | 133 | 11300 | 132 | 11300 | 72 | 132 | 11300 | 133 | 11300 | 132 | 11300 |
464.h264ref | 72 | 949 | 1680 | 940 | 1690 | 933 | 1710 | 72 | 924 | 1720 | 903 | 1760 | 912 | 1750 |
471.omnetpp | 72 | 638 | 706 | 636 | 707 | 640 | 704 | 72 | 625 | 720 | 622 | 724 | 620 | 726 |
473.astar | 72 | 684 | 739 | 682 | 741 | 682 | 741 | 72 | 684 | 739 | 682 | 741 | 682 | 741 |
483.xalancbmk | 72 | 364 | 1360 | 364 | 1370 | 363 | 1370 | 72 | 364 | 1360 | 364 | 1370 | 363 | 1370 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
CPU performance set to Enterprise Power Technology set to Energy Efficient Energy Performance BIAS setting set to Balanced Performance Memory RAS configuration set to Maximum Performance Sysinfo program /opt/cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on fc-barcelona-dn1 Wed Oct 1 23:01:21 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2699 v3 @ 2.30GHz 2 "physical id"s (chips) 72 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 18 siblings : 36 physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 cache size : 23040 KB From /proc/meminfo MemTotal: 264417108 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux fc-barcelona-dn1 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Oct 1 21:42 SPEC is set to: /opt/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 345G 107G 221G 33% / Additional information from dmidecode: BIOS Cisco Systems, Inc. C220M4.2.0.3c.0620Msr.092920141650 09/29/2014 Memory: 16x 0xCE00 M393A2G40DB0-CPB 16 GB 2133 MHz 2 rank 8x NO DIMM NO DIMM (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/opt/cpu2006/libs/32:/opt/cpu2006/libs/64:/opt/cpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
429.mcf: | basepeak = yes |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
