CPU2006 license: | 19 | Test date: | May-2015 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | May-2015 |
Tested by: | Fujitsu | Software Availability: | Mar-2015 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7-8860 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
CPU MHz: | 2200 |
FPU: | Integrated |
CPU(s) enabled: | 64 cores, 4 chips, 16 cores/chip, 2 threads/core |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 40 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 512 GB (32 x 16 GB 2Rx4 PC4-2133P-R, running at 1600 MHz) |
Disk Subsystem: | 1 x SATA, 600 GB, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 7.1 (Maipo) 3.10.0-229.el7.x86_64 |
Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux; Fortran: Version 15.0.0.090 of Intel Fortran Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

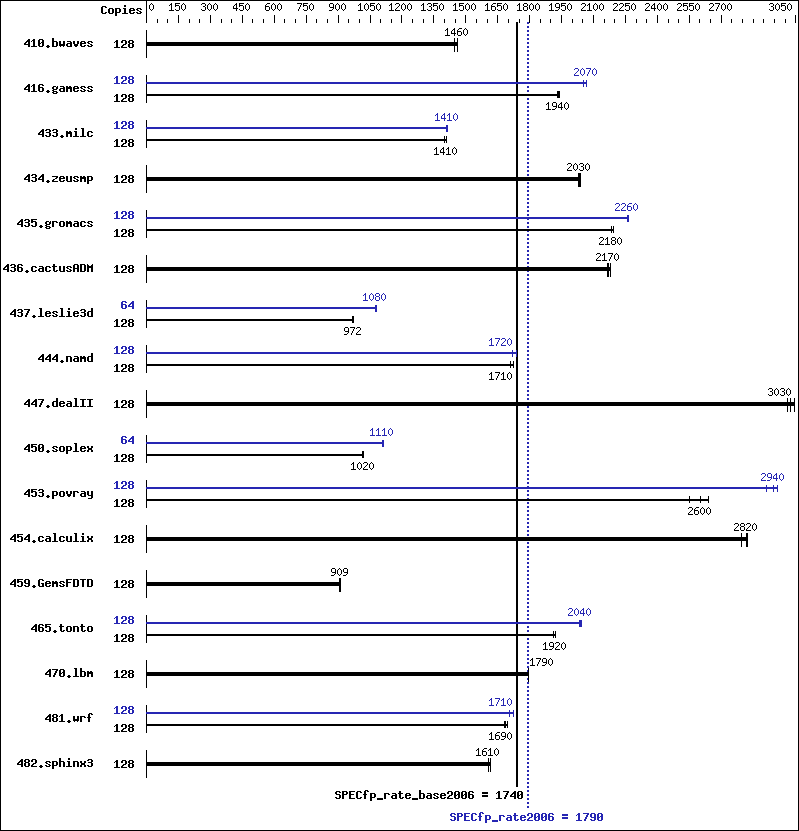

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 128 | 1203 | 1450 | 1191 | 1460 | 1191 | 1460 | 128 | 1203 | 1450 | 1191 | 1460 | 1191 | 1460 |
416.gamess | 128 | 1292 | 1940 | 1297 | 1930 | 1294 | 1940 | 128 | 1212 | 2070 | 1211 | 2070 | 1221 | 2050 |
433.milc | 128 | 833 | 1410 | 839 | 1400 | 834 | 1410 | 128 | 832 | 1410 | 832 | 1410 | 833 | 1410 |
434.zeusmp | 128 | 572 | 2030 | 571 | 2040 | 574 | 2030 | 128 | 572 | 2030 | 571 | 2040 | 574 | 2030 |
435.gromacs | 128 | 416 | 2190 | 418 | 2180 | 418 | 2180 | 128 | 405 | 2260 | 404 | 2260 | 404 | 2260 |
436.cactusADM | 128 | 706 | 2170 | 702 | 2180 | 705 | 2170 | 128 | 706 | 2170 | 702 | 2180 | 705 | 2170 |
437.leslie3d | 128 | 1238 | 972 | 1241 | 970 | 1238 | 972 | 64 | 557 | 1080 | 559 | 1080 | 559 | 1080 |
444.namd | 128 | 595 | 1720 | 600 | 1710 | 601 | 1710 | 128 | 597 | 1720 | 598 | 1720 | 591 | 1740 |
447.dealII | 128 | 484 | 3030 | 486 | 3010 | 481 | 3040 | 128 | 484 | 3030 | 486 | 3010 | 481 | 3040 |
450.soplex | 128 | 1048 | 1020 | 1047 | 1020 | 1050 | 1020 | 64 | 482 | 1110 | 481 | 1110 | 479 | 1110 |
453.povray | 128 | 258 | 2640 | 261 | 2600 | 267 | 2550 | 128 | 230 | 2960 | 231 | 2940 | 234 | 2910 |
454.calculix | 128 | 375 | 2820 | 374 | 2820 | 378 | 2800 | 128 | 375 | 2820 | 374 | 2820 | 378 | 2800 |
459.GemsFDTD | 128 | 1493 | 909 | 1500 | 906 | 1492 | 910 | 128 | 1493 | 909 | 1500 | 906 | 1492 | 910 |
465.tonto | 128 | 659 | 1910 | 656 | 1920 | 656 | 1920 | 128 | 618 | 2040 | 620 | 2030 | 616 | 2050 |
470.lbm | 128 | 981 | 1790 | 980 | 1790 | 980 | 1790 | 128 | 981 | 1790 | 980 | 1790 | 980 | 1790 |
481.wrf | 128 | 842 | 1700 | 849 | 1680 | 848 | 1690 | 128 | 829 | 1720 | 838 | 1710 | 838 | 1710 |
482.sphinx3 | 128 | 1544 | 1620 | 1553 | 1610 | 1555 | 1600 | 128 | 1544 | 1620 | 1553 | 1610 | 1555 | 1600 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS configuration: Energy Performance = Performance
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPECcpu2006/libs/32:/home/SPECcpu2006/libs/64:/home/SPECcpu2006/sh" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
icc -m64 |
icpc -m64 | |
450.soplex: | icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
433.milc: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -auto-ilp32 |
