CPU2006 license: | 19 | Test date: | May-2015 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | May-2015 |
Tested by: | Fujitsu | Software Availability: | Nov-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2690 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 1 chip, 12 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 30 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (8 x 16 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.6 (Santiago) 2.6.32-504.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

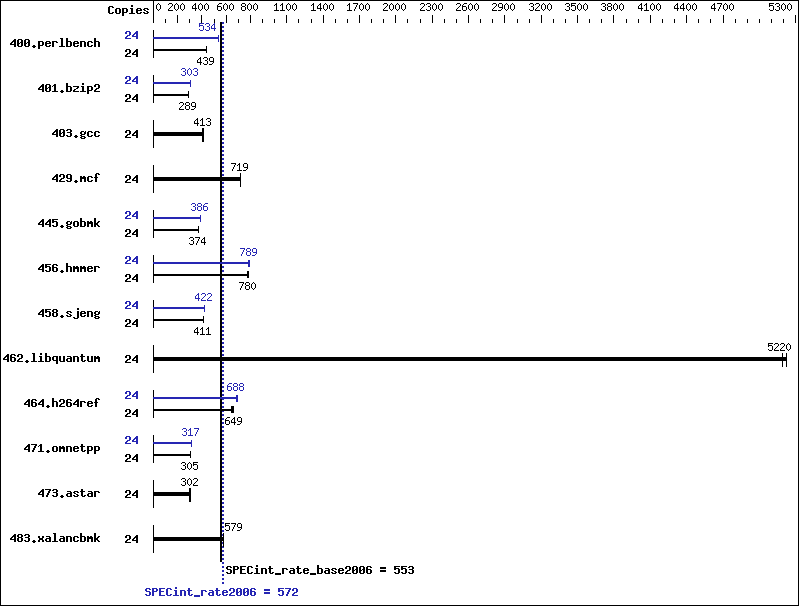

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 535 | 438 | 534 | 439 | 534 | 439 | 24 | 440 | 532 | 439 | 534 | 439 | 534 |
401.bzip2 | 24 | 802 | 289 | 801 | 289 | 800 | 289 | 24 | 765 | 303 | 768 | 302 | 764 | 303 |
403.gcc | 24 | 474 | 408 | 468 | 413 | 468 | 413 | 24 | 474 | 408 | 468 | 413 | 468 | 413 |
429.mcf | 24 | 304 | 720 | 304 | 719 | 304 | 719 | 24 | 304 | 720 | 304 | 719 | 304 | 719 |
445.gobmk | 24 | 673 | 374 | 674 | 374 | 673 | 374 | 24 | 649 | 388 | 654 | 385 | 653 | 386 |
456.hmmer | 24 | 288 | 779 | 284 | 788 | 287 | 780 | 24 | 283 | 791 | 284 | 789 | 286 | 784 |
458.sjeng | 24 | 706 | 411 | 704 | 413 | 708 | 410 | 24 | 688 | 422 | 689 | 421 | 688 | 422 |
462.libquantum | 24 | 95.9 | 5190 | 95.2 | 5220 | 95.2 | 5220 | 24 | 95.9 | 5190 | 95.2 | 5220 | 95.2 | 5220 |
464.h264ref | 24 | 819 | 649 | 804 | 660 | 822 | 646 | 24 | 778 | 683 | 765 | 694 | 772 | 688 |
471.omnetpp | 24 | 497 | 302 | 492 | 305 | 491 | 305 | 24 | 473 | 317 | 474 | 316 | 473 | 317 |
473.astar | 24 | 559 | 302 | 558 | 302 | 562 | 300 | 24 | 559 | 302 | 558 | 302 | 562 | 300 |
483.xalancbmk | 24 | 285 | 581 | 286 | 579 | 286 | 578 | 24 | 285 | 581 | 286 | 579 | 286 | 578 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS configuration: default
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPECcpu2006/libs/32:/home/SPECcpu2006/libs/64:/home/SPECcpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
