| CPU2006 license: | 13 | Test date: | Nov-2015 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | May-2014 |
| Tested by: | Intel Corporation | Software Availability: | Aug-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i5-4340M |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 2900 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx4 PC3-12800U-11) |
| Disk Subsystem: | 1 TB HDD, 5400 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 10 Pro 10.0.10240 N/A Build 10240 |
| Compiler: | C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | SmartHeap Library Version 11.0 from http://www.microquill.com/ |

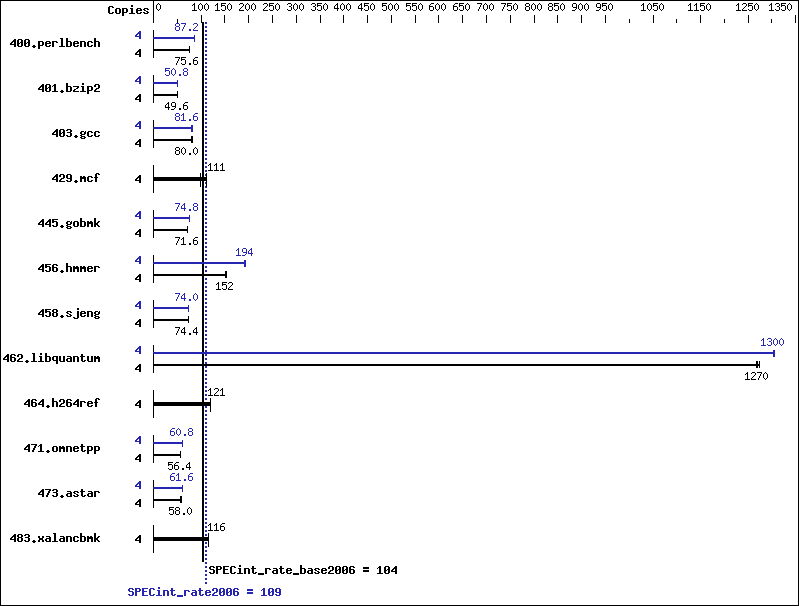

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 514 | 76.0 | 516 | 75.6 | 522 | 74.8 | 4 | 449 | 87.2 | 448 | 87.2 | 448 | 87.2 |
| 401.bzip2 | 4 | 780 | 49.6 | 779 | 49.6 | 773 | 50.0 | 4 | 765 | 50.4 | 761 | 50.8 | 759 | 50.8 |
| 403.gcc | 4 | 404 | 79.6 | 397 | 81.2 | 402 | 80.0 | 4 | 400 | 80.4 | 394 | 81.6 | 393 | 82.0 |
| 429.mcf | 4 | 326 | 112 | 329 | 111 | 370 | 98.8 | 4 | 326 | 112 | 329 | 111 | 370 | 98.8 |
| 445.gobmk | 4 | 587 | 71.6 | 587 | 71.6 | 587 | 71.6 | 4 | 561 | 74.8 | 562 | 74.8 | 560 | 74.8 |
| 456.hmmer | 4 | 244 | 153 | 248 | 150 | 246 | 152 | 4 | 192 | 194 | 193 | 194 | 195 | 192 |
| 458.sjeng | 4 | 651 | 74.4 | 651 | 74.4 | 649 | 74.4 | 4 | 653 | 74.0 | 653 | 74.0 | 653 | 74.0 |
| 462.libquantum | 4 | 65.4 | 1270 | 65.3 | 1270 | 65.1 | 1270 | 4 | 63.6 | 1300 | 63.5 | 1310 | 63.6 | 1300 |
| 464.h264ref | 4 | 737 | 120 | 732 | 121 | 732 | 121 | 4 | 737 | 120 | 732 | 121 | 732 | 121 |
| 471.omnetpp | 4 | 445 | 56.4 | 444 | 56.4 | 440 | 56.8 | 4 | 410 | 61.2 | 415 | 60.0 | 410 | 60.8 |
| 473.astar | 4 | 487 | 57.6 | 484 | 58.0 | 480 | 58.4 | 4 | 457 | 61.6 | 458 | 61.2 | 452 | 62.0 |
| 483.xalancbmk | 4 | 239 | 116 | 239 | 116 | 240 | 115 | 4 | 239 | 116 | 239 | 116 | 240 | 115 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 16.0 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2016 program folder)
Platform Notes
Sysinfo program C:\SPEC16.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on CltA01D48C0E889 Thu Nov 12 04:44:33 2015 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 10 Pro OS Version : 10.0.10240 N/A Build 10240 System Manufacturer: Hewlett-Packard System Model : HP ENVY 15 Notebook PC Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~2901 Mhz BIOS Version : Insyde F.36, 10/24/2013 Total Physical Memory: 8,128 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 256 L3CacheSize : 3072 MaxClockSpeed : 2901 Name : Intel(R) Core(TM) i5-4340M CPU @ 2.90GHz NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
General Notes
Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU + 64GB memory using Windows 8.1 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 |
C++ benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icl -Qvc12 -Qstd=c99 |
C++ benchmarks (except as noted below):
| icl -Qvc12 |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F256000000 |
| 403.gcc: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F256000000 |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
