SPEC® CINT2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Hewlett Packard Enterprise (Test Sponsor: HPE)

ProLiant ML350 Gen9
(2.30 GHz, Intel Xeon E5-2697 v4)

SPECint®2006 = 73.2

CPU2006 license: 3 Test date: Apr-2016
Test sponsor: HPE Hardware Availability: Mar-2016
Tested by: HPE Software Availability: Nov-2015

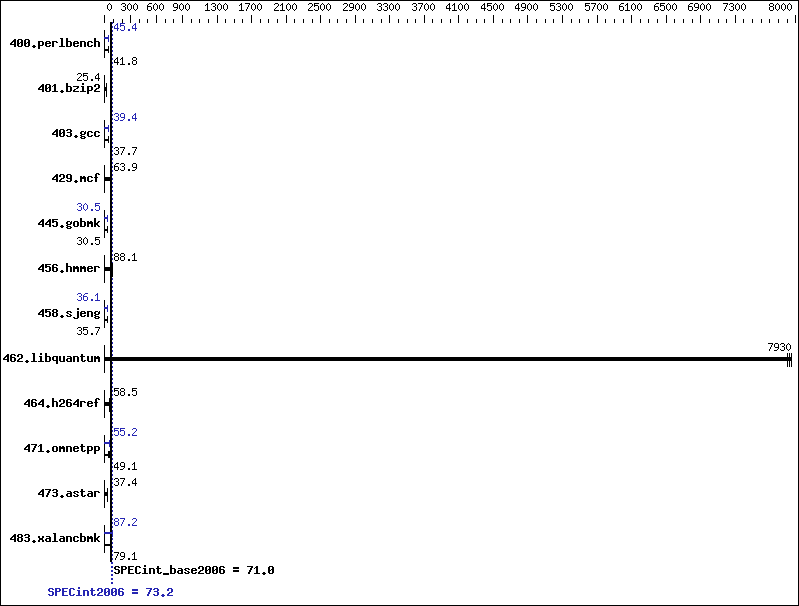

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2697 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.60 GHz
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 36 cores, 2 chips, 18 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (16 x 32 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 1 x 400 GB SAS SSD, RAID 1
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 7.2
(Maipo)
Kernel 3.10.0-327.el7.x86_64
Compiler: C/C++: Version 16.0.0.101 of Intel C++ Studio XE
for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 233    41.9 234    41.8 234    41.7 215    45.4 215    45.5 215    45.4
401.bzip2 380    25.4 380    25.4 381    25.3 380    25.4 380    25.4 381    25.3
403.gcc 213    37.7 214    37.7 214    37.7 204    39.4 204    39.4 204    39.4
429.mcf 141    64.6 143    63.7 143    63.9 141    64.6 143    63.7 143    63.9
445.gobmk 345    30.4 344    30.5 344    30.5 344    30.5 344    30.5 344    30.5
456.hmmer 106    88.3 106    88.1 106    88.1 106    88.3 106    88.1 106    88.1
458.sjeng 339    35.7 339    35.7 340    35.6 335    36.1 335    36.1 335    36.1
462.libquantum 2.61 7930   2.61 7950   2.62 7910   2.61 7930   2.61 7950   2.62 7910
464.h264ref 378    58.5 378    58.6 379    58.4 378    58.5 378    58.6 379    58.4
471.omnetpp 127    49.1 128    48.9 127    49.4 113    55.3 114    55.0 113    55.2
473.astar 189    37.2 188    37.4 187    37.5 189    37.2 188    37.4 187    37.5
483.xalancbmk 87.3  79.1 87.2  79.1 87.2  79.1 79.1  87.2 79.2  87.1 79.1  87.2

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled

Platform Notes

 BIOS Configuration:
   Intel Hyperthreading Option set to Disabled
   Power Profile set to Custom
   Power Regulator set to Static High Performance Mode
   Minimum Processor Idle Power Core C-State set to C1E State
   Minimum Processor Idle Power Package C-State set to No Package State
   Collaborative Power Control set to Disabled
   QPI Snoop Configuration set to Home Snoop
   Thermal Configuration set to Maximum Cooling
   Processor Power and Utilization Monitoring set to Disabled
   Memory Double Refresh Rate set to 1x Refresh
   Energy Performance Bias set to Maximum Performance
 Sysinfo program /home/specuser/specsuite/ic16/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on ml350bdwspec Fri Apr 15 12:22:40 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2697 v4 @ 2.30GHz
       2 "physical id"s (chips)
       36 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 18
       siblings  : 18
       physical 0: cores 0 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 1: cores 0 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
    cache size : 46080 KB

 From /proc/meminfo
    MemTotal:       528066200 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.2 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="7.2"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.2 (Maipo)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:redhat:enterprise_linux:7.2:GA:server"
    redhat-release: Red Hat Enterprise Linux Server release 7.2 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.2 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.2:ga:server

 uname -a:
    Linux ml350bdwspec 3.10.0-327.el7.x86_64 #1 SMP Thu Oct 29 17:29:29 EDT 2015
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Apr 15 12:12

 SPEC is set to: /home/specuser/specsuite/ic16
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda5      xfs   318G  241G   78G  76% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS HP P92 02/22/2016
   Memory:
    8x UNKNOWN NOT AVAILABLE
    16x UNKNOWN NOT AVAILABLE 32 GB 2 rank 2400 MHz

 (End of data from sysinfo program)
  Regarding the sysinfo display about the memory installed, the correct amount of
  memory is 512 GB and the dmidecode description should have one line reading as:
  16x UNKNOWN NOT AVAILABLE 32 GB 2 rank 2400 MHz

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,scatter"
LD_LIBRARY_PATH = "/home/specuser/specsuite/ic16/libs/32:/home/specuser/specsuite/ic16/libs/64:/home/specuser/specsuite/ic16/sh"
OMP_NUM_THREADS = "36"

 Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB
 memory using RedHat EL 7.1

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -auto-p32

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -Wl,-z,muldefs   -L/sh -lsmartheap64

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
400.perlbench:  icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin
445.gobmk:  icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

C++ benchmarks (except as noted below):

 icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin
473.astar:  icpc -m64

Peak Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -opt-prefetch   -ansi-alias
401.bzip2:  basepeak = yes
403.gcc:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -inline-calloc   -opt-malloc-options=3   -auto-ilp32
429.mcf:  basepeak = yes
445.gobmk:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -ansi-alias
456.hmmer:  basepeak = yes
458.sjeng:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -opt-ra-region-strategy=block    -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/HP-Platform-Flags-Intel-V1.2-HSW-revE.html,
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/HP-Platform-Flags-Intel-V1.2-HSW-revE.xml,
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml.
