| CPU2006 license: | 19 | Test date: | Jun-2016 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Sep-2016 |
| Tested by: | Fujitsu | Software Availability: | Sep-2016 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Phi 7250 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 1.60 GHz |
| CPU MHz: | 1400 |
| FPU: | Integrated |
| CPU(s) enabled: | 68 cores, 1 chip, 68 cores/chip, 4 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per two cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 192 GB (6 x 32 GB 2Rx4 PC4-2400T-R, running at 1200 MHz) |
| Disk Subsystem: | 1 x SATA, 927 GB, 7200 RPM |
| Other Hardware: | 16 GB MCDRAM |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.2 (Maipo) 3.10.0-327.13.1.el7.mpsp_1.3.2.100.x86_64 |
| Compiler: | C/C++: Version 16.0.2.181 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

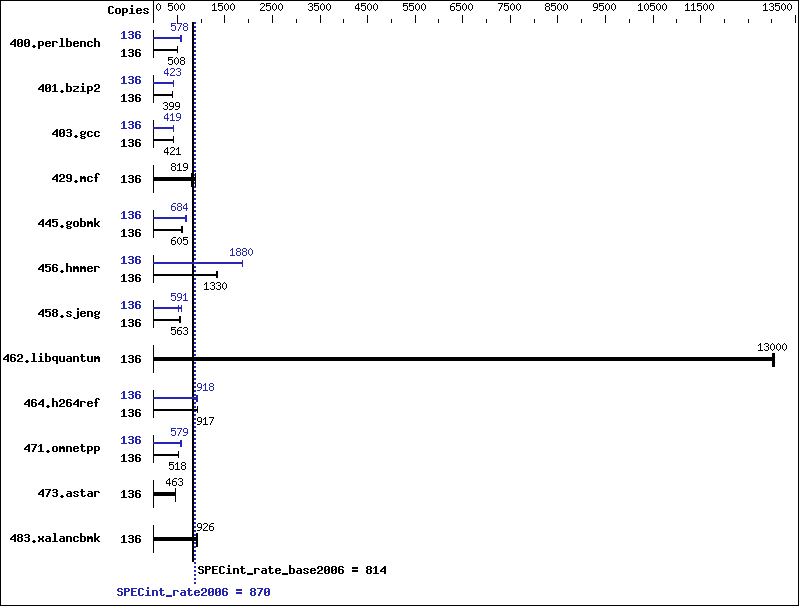

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 136 | 2616 | 508 | 2585 | 514 | 2681 | 496 | 136 | 2298 | 578 | 2309 | 575 | 2297 | 578 |
| 401.bzip2 | 136 | 3317 | 396 | 3293 | 399 | 3253 | 403 | 136 | 3105 | 423 | 3194 | 411 | 3063 | 428 |
| 403.gcc | 136 | 2594 | 422 | 2609 | 420 | 2601 | 421 | 136 | 2624 | 417 | 2606 | 420 | 2615 | 419 |
| 429.mcf | 136 | 1514 | 819 | 1551 | 800 | 1418 | 875 | 136 | 1514 | 819 | 1551 | 800 | 1418 | 875 |
| 445.gobmk | 136 | 2358 | 605 | 2351 | 607 | 2391 | 597 | 136 | 2083 | 685 | 2125 | 671 | 2086 | 684 |
| 456.hmmer | 136 | 956 | 1330 | 951 | 1330 | 947 | 1340 | 136 | 676 | 1880 | 675 | 1880 | 675 | 1880 |
| 458.sjeng | 136 | 2925 | 563 | 2916 | 564 | 2975 | 553 | 136 | 3070 | 536 | 2780 | 592 | 2783 | 591 |
| 462.libquantum | 136 | 216 | 13100 | 216 | 13000 | 216 | 13000 | 136 | 216 | 13100 | 216 | 13000 | 216 | 13000 |
| 464.h264ref | 136 | 3281 | 917 | 3286 | 916 | 3275 | 919 | 136 | 3279 | 918 | 3221 | 934 | 3292 | 914 |
| 471.omnetpp | 136 | 1642 | 518 | 1645 | 517 | 1621 | 524 | 136 | 1480 | 574 | 1467 | 579 | 1465 | 580 |
| 473.astar | 136 | 2061 | 463 | 2062 | 463 | 2062 | 463 | 136 | 2061 | 463 | 2062 | 463 | 2062 | 463 |
| 483.xalancbmk | 136 | 1026 | 914 | 1014 | 926 | 1013 | 926 | 136 | 1026 | 914 | 1014 | 926 | 1013 | 926 |
Submit Notes
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate taskset commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Cluster Mode = Quadrant Memory Mode = Cache Patrol Scrub = Disabled Power Technology = Custom Enhanced Speedstep = Enabled Turbo Mode = Enabled CPU C6 Report = Disabled Package C State limit = C0 Cooling System: Cool-Central Liquid Cooling Technology For details of cooling system please visit: http://www.fujitsu.com/fts/products/computing/servers/primergy/scale-out/cclc/index.html For information about Fujitsu please visit: http://www.fujitsu.com Sysinfo program /home/nakashima/cpu2006/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on cx1640m1-29 Thu Jun 2 19:40:07 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon Phi(TM) CPU 7250 @ 1.40GHz 1 "physical id"s (chips) 272 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 68 siblings : 272 physical 0: cores 0 1 2 3 8 9 10 11 12 13 14 15 16 17 18 19 20 21 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 62 63 64 65 66 67 68 69 70 71 72 73 74 75 cache size : 1024 KB From /proc/meminfo MemTotal: 197749988 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.2 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.2" PRETTY_NAME="Red Hat Enterprise Linux Server 7.2 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.2:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.2 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.2 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.2:ga:server uname -a: Linux cx1640m1-29 3.10.0-327.13.1.el7.mpsp_1.3.2.100.x86_64 #1 SMP Mon May 23 05:37:07 EDT 2016 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jun 2 19:39 SPEC is set to: /home/nakashima/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 xfs 927G 254G 674G 28% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS FUJITSU // American Megatrends Inc. V5.0.0.11 R0.85.0 for D3727-A1x 02/23/2016 Memory: 6x Samsung M393A4K40BB1-CRC 32 GB 2 rank 2400 MHz, configured at 1200 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/nakashima/cpu2006/libs/32:/home/nakashima/cpu2006/libs/64:/home/nakashima/cpu2006/sh" Binaries compiled on a system with 1x Intel 2nd Generation Xeon Phi CPU + 96GB memory using RedHat EL 7.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Base Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xMIC-AVX512 -ipo -O3 -no-prec-div -opt-prefetch |
C++ benchmarks:
| -xMIC-AVX512 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Peak Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -auto-ilp32 |
| 401.bzip2: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xMIC-AVX512 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xMIC-AVX512(pass 2) -prof-gen(pass 1) -par-num-threads=1(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xMIC-AVX512 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
