| CPU2006 license: | 13 | Test date: | Mar-2016 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2015 |
| Tested by: | Intel Corporation | Software Availability: | Aug-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Pentium G4500 |
| CPU Characteristics: | |
| CPU MHz: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx4 PC4-2133P-U) |
| Disk Subsystem: | 1 TB Seagate Barracuda HDD, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 7 Professional 6.1.7601 Service Pack 1 Build 7601 |
| Compiler: | C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 11.0 from http://www.microquill.com/ |

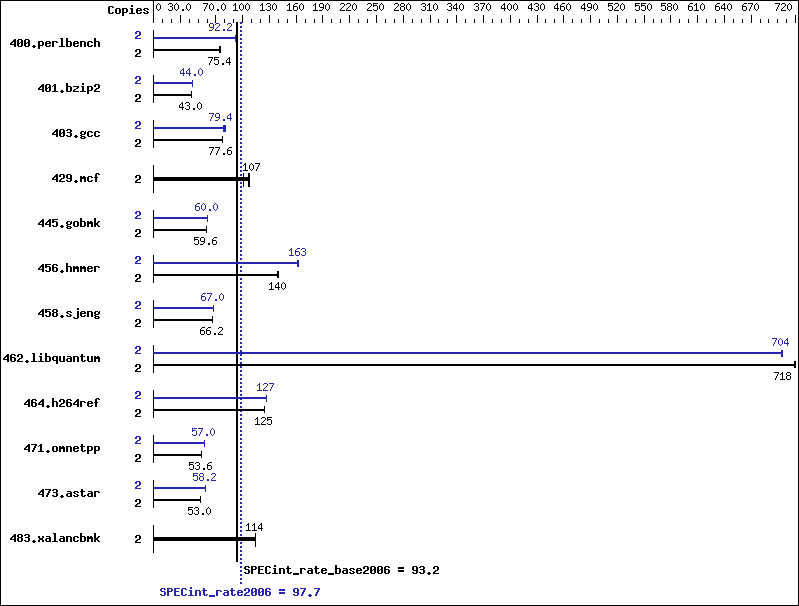

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 264 | 74.2 | 259 | 75.6 | 259 | 75.4 | 2 | 212 | 92.0 | 212 | 92.2 | 212 | 92.2 |
| 401.bzip2 | 2 | 454 | 42.6 | 448 | 43.0 | 449 | 43.0 | 2 | 438 | 44.0 | 440 | 44.0 | 437 | 44.2 |
| 403.gcc | 2 | 208 | 77.6 | 208 | 77.6 | 209 | 77.0 | 2 | 204 | 79.0 | 200 | 80.6 | 203 | 79.4 |
| 429.mcf | 2 | 171 | 107 | 181 | 101 | 170 | 108 | 2 | 171 | 107 | 181 | 101 | 170 | 108 |
| 445.gobmk | 2 | 352 | 59.6 | 352 | 59.6 | 352 | 59.6 | 2 | 349 | 60.0 | 349 | 60.0 | 349 | 60.0 |
| 456.hmmer | 2 | 134 | 140 | 134 | 139 | 134 | 140 | 2 | 115 | 163 | 115 | 162 | 115 | 163 |
| 458.sjeng | 2 | 365 | 66.2 | 365 | 66.2 | 366 | 66.2 | 2 | 361 | 67.2 | 361 | 67.0 | 361 | 67.0 |
| 462.libquantum | 2 | 57.7 | 718 | 57.6 | 719 | 57.7 | 718 | 2 | 58.9 | 704 | 58.8 | 705 | 58.9 | 704 |
| 464.h264ref | 2 | 355 | 125 | 355 | 125 | 355 | 125 | 2 | 349 | 127 | 349 | 127 | 350 | 127 |
| 471.omnetpp | 2 | 234 | 53.6 | 234 | 53.6 | 234 | 53.6 | 2 | 219 | 57.0 | 219 | 57.2 | 219 | 57.0 |
| 473.astar | 2 | 265 | 53.0 | 265 | 53.0 | 266 | 52.8 | 2 | 241 | 58.2 | 241 | 58.2 | 241 | 58.2 |
| 483.xalancbmk | 2 | 121 | 114 | 121 | 114 | 121 | 114 | 2 | 121 | 114 | 121 | 114 | 121 | 114 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 16.0 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2016 program folder)
Platform Notes
Sysinfo program C:\SPEC16.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on CltF832E4885654 Tue Mar 8 07:44:42 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Professional OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 94 Stepping 3 GenuineIntel ~3500 Mhz BIOS Version : American Megatrends Inc. 0704, 1/12/2016 Total Physical Memory: 8,070 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 512 L3CacheSize : 3072 MaxClockSpeed : 3500 Name : Intel(R) Pentium(R) CPU G4500 @ 3.50GHz NumberOfCores : 2 NumberOfLogicalProcessors: 2 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU + 64GB memory using Windows 8.1 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 |
C++ benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc12 | |
| 473.astar: | C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 shlW64M.lib |
| 483.xalancbmk: | basepeak = yes |
