SPEC® CINT2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS Q170M-C motherboard (Intel Core i3-6320)

CPU2006 license: 13 Test date: Mar-2016
Test sponsor: Intel Corporation Hardware Availability: Sep-2015
Tested by: Intel Corporation Software Availability: Aug-2015

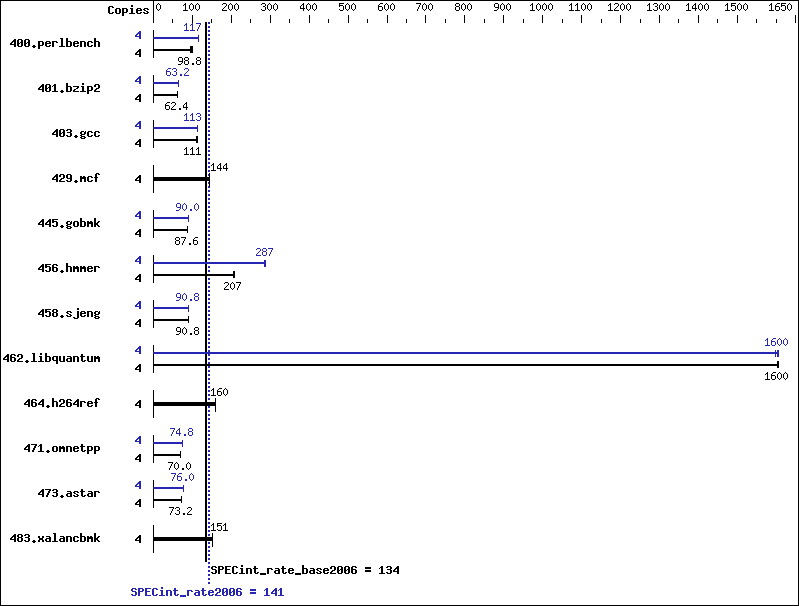

Benchmark results graph
Hardware
CPU Name: Intel Core i3-6320
CPU Characteristics:
CPU MHz: 3900
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx4 PC4-2133P-U)
Disk Subsystem: 1 TB Seagate Barracuda HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Professional
6.1.7601 Service Pack 1 Build 7601
Compiler: C/C++: Version 16.0.0.110 of Intel C++ Studio XE
for Windows;
Libraries: Version 18.00.30723 of Microsoft
Visual Studio 2013
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 11.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 407   96.0 394   99.2 395   98.8 4 335   117   335   116   334   117
401.bzip2 4 620   62.4 624   62.0 619   62.4 4 612   63.2 611   63.2 610   63.2
403.gcc 4 290   111   292   110   287   112   4 284   113   285   113   284   113
429.mcf 4 254   144   253   144   253   144   4 254   144   253   144   253   144
445.gobmk 4 479   87.6 479   87.6 480   87.6 4 466   90.0 466   90.0 466   90.0
456.hmmer 4 180   207   181   207   180   207   4 130   287   130   287   131   286
458.sjeng 4 534   90.8 533   90.8 535   90.4 4 532   90.8 534   90.8 532   90.8
462.libquantum 4 51.7 1600   51.7 1600   51.6 1610   4 51.9 1600   51.6 1610   51.7 1600
464.h264ref 4 555   160   554   160   555   160   4 555   160   554   160   555   160
471.omnetpp 4 356   70.0 357   70.0 356   70.4 4 334   74.8 334   74.8 334   74.8
473.astar 4 384   73.2 384   73.2 384   73.2 4 369   76.0 369   76.0 368   76.4
483.xalancbmk 4 183   151   183   151   183   151   4 183   151   183   151   183   151

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 16.0 was set up to
 generate 32-bit binaries with the command:
 "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2016 program folder)

Platform Notes

 Sysinfo program C:\SPEC16.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on CltF832E48856E2 Tue Mar 15 22:29:43 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Professional
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 94 Stepping 3 GenuineIntel ~3900 Mhz
 BIOS Version  : American Megatrends Inc. 0704, 1/12/2016
 Total Physical Memory: 8,069 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 4096
 MaxClockSpeed : 3900
 Name          : Intel(R) Core(TM) i3-6320 CPU @ 3.90GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU
 + 64GB memory using Windows 8.1 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F256000000

C++ benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F256000000   shlW32M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl -Qvc12   -Qstd=c99
456.hmmer:  C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe
458.sjeng:  C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe
462.libquantum:  C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe   -Qstd=c99

C++ benchmarks (except as noted below):

 icl -Qvc12
473.astar:  C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DWIN32
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F256000000   shlW32M.lib    -link /FORCE:MULTIPLE
401.bzip2:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F256000000
403.gcc:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F256000000
429.mcf:  basepeak = yes
445.gobmk:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F256000000
456.hmmer:  -Qauto-ilp32   -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo(1)   -O3(1)   -Qprec-div-(1)   -Qopt-prefetch(1)   /F256000000
458.sjeng:  -Qauto-ilp32   -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo(1)   -O3(1)   -Qprec-div-(1)   -Qunroll4(1)   /F256000000
462.libquantum:  -Qauto-ilp32   -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F256000000
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F256000000   shlW32M.lib    -link /FORCE:MULTIPLE
473.astar:  -Qauto-ilp32   -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F256000000   shlW64M.lib
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca
456.hmmer:  -link -LIBPATH:C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/compiler/lib/intel64 -link -LIBPATH:C:\Program Files (x86)\Microsoft SDKs\Windows?7.1A\Libd   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 12.0/VC/lib/AMD64
458.sjeng:  -link -LIBPATH:C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/compiler/lib/intel64 -link -LIBPATH:C:\Program Files (x86)\Microsoft SDKs\Windows?7.1A\Libd   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 12.0/VC/lib/AMD64
462.libquantum:  -link -LIBPATH:C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/compiler/lib/intel64 -link -LIBPATH:C:\Program Files (x86)\Microsoft SDKs\Windows?7.1A\Libd   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 12.0/VC/lib/AMD64

C++ benchmarks:

473.astar:  -link /FORCE:MULTIPLE -link -LIBPATH:C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/compiler/lib/intel64 -link -LIBPATH:C:\Program Files (x86)\Microsoft SDKs\Windows?7.1A\Libd   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 12.0/VC/lib/AMD64

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.xml.
