SPEC® CFP2006 Result

SGI (Test Sponsor: Japan Advanced Institute of Science and Technology)

SGI UV 3000 (Intel Xeon E5-4655 v3, 2.90 GHz)

SPECfp®_rate2006 = Not Run

SPECfp_rate_base2006 = 51500

CPU2006 license:	4	Test date:	Aug-2016
Test sponsor:	Japan Advanced Institute of Science and Technology	Hardware Availability:	Sep-2015
Tested by:	SGI	Software Availability:	May-2016

Hardware
CPU Name:	Intel Xeon E5-4655 v3
CPU Characteristics:	Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz:	2900
FPU:	Integrated
CPU(s) enabled:	1536 cores, 256 chips, 6 cores/chip
CPU(s) orderable:	4-256 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	30 MB I+D on chip per chip
Other Cache:	None
Memory:	32 TB (2048 x 16 GB 2Rx4 PC4-2133P-R)
Disk Subsystem:	32640 GB tmpfs
Other Hardware:	NUMAlink6 routers

Software
Operating System:	SUSE Linux Enterprise Server 12 (x86_64) SP1, Kernel 3.12.48-52.27-default
Compiler:	C/C++: Version 16.0.2.181 of Intel C++ Studio XE for Linux; Fortran: Version 16.0.2.181 of Intel Fortran Studio XE for Linux
Auto Parallel:	No
File System:	tmpfs
System State:	Run level 3 (multi-user)
Base Pointers:	32/64-bit
Peak Pointers:	Not Applicable
Other Software:	None

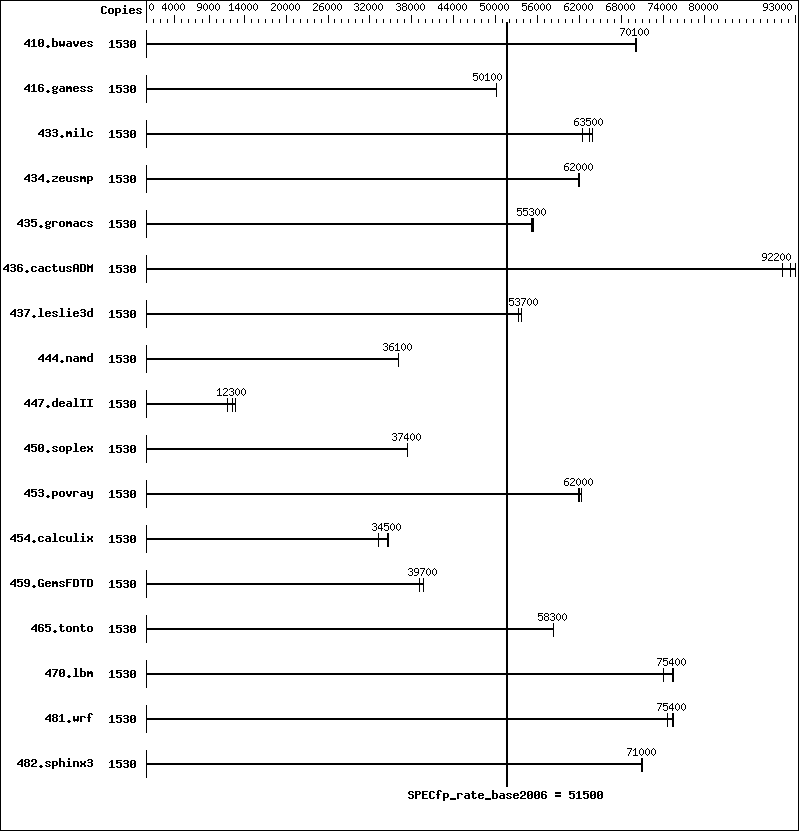

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	1530	297	70100	296	70200	297	70000
416.gamess	1530	598	50100	598	50100	598	50100
433.milc	1530	221	63500	225	62500	220	63900
434.zeusmp	1530	225	61900	225	62000	224	62000
435.gromacs	1530	198	55300	197	55500	198	55200
436.cactusADM	1530	198	92200	197	92900	201	91200
437.leslie3d	1530	268	53700	268	53700	270	53300
444.namd	1530	340	36100	340	36100	340	36100
447.dealII	1530	1367	12800	1418	12300	1503	11600
450.soplex	1530	341	37400	341	37400	341	37400
453.povray	1530	131	62000	131	62300	131	61900
454.calculix	1530	365	34500	364	34700	380	33200
459.GemsFDTD	1530	416	39100	409	39700	409	39700
465.tonto	1530	258	58300	258	58200	258	58400
470.lbm	1530	284	74000	279	75400	279	75500
481.wrf	1530	226	75500	227	75400	229	74600
482.sphinx3	1530	420	71000	420	71000	420	71000

Submit Notes

 The dplace mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate dplace commands to bind each copy to a specific processor.
 Benchmark copies were launched in a staggered fashion to minimize kernel contention
 associated with synchronized launches.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

 The tmpfs filesystem was set up with:
   mkdir -p /mnt/shm/cpu2006-sgi-ic16
   mount -t tmpfs -o rw,size=32640g,mpol=bind:1-255 tmpfs /mnt/shm/cpu2006-sgi-ic16

Platform Notes

Intel Hyperthreading set to Disabled
The dmidecode output is in error - There were 2048 memory DIMMs running at 2133.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/mnt/shm/cpu2006-sgi-ic16/libs/32:/mnt/shm/cpu2006-sgi-ic16/libs/64:/mnt/shm/cpu2006-sgi-ic16/sh"

 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1 > /proc/sys/vm/drop_caches

Base Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/SGI-UV3000-Platform-Flags.20160906.html,
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/SGI-UV3000-Platform-Flags.20160906.xml,
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml.
