| CPU2006 license: | 13 | Test date: | Mar-2016 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jul-2014 |
| Tested by: | Intel Corporation | Software Availability: | Aug-2015 |
| Hardware | |
|---|---|
| CPU Name: | AMD A6-7400K |
| CPU Characteristics: | AMD Turbo CORE technology up to 3.90 GHz |
| CPU MHz: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 96 KB I on chip per chip; 16 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600U-11) |
| Disk Subsystem: | Seagate Barracuda 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 7 Enterprise 6.1.7601 Service Pack 1 Build 7601 |
| Compiler: | C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 11.0 from http://www.microquill.com/ |

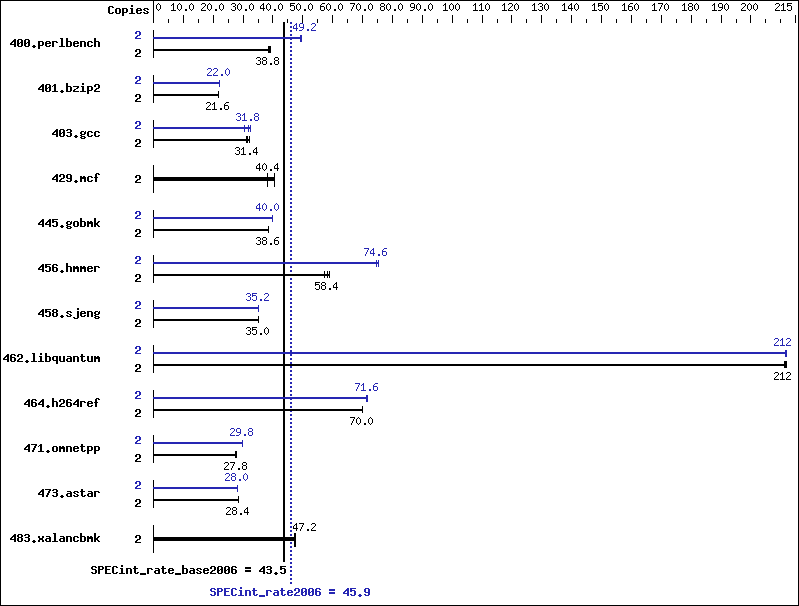

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 507 | 38.6 | 502 | 38.8 | 502 | 39.0 | 2 | 396 | 49.2 | 396 | 49.4 | 398 | 49.2 |
| 401.bzip2 | 2 | 888 | 21.8 | 894 | 21.6 | 890 | 21.6 | 2 | 880 | 22.0 | 875 | 22.0 | 879 | 22.0 |
| 403.gcc | 2 | 515 | 31.2 | 502 | 32.0 | 514 | 31.4 | 2 | 505 | 31.8 | 527 | 30.6 | 497 | 32.4 |
| 429.mcf | 2 | 451 | 40.4 | 448 | 40.6 | 479 | 38.0 | 2 | 451 | 40.4 | 448 | 40.6 | 479 | 38.0 |
| 445.gobmk | 2 | 546 | 38.4 | 544 | 38.6 | 545 | 38.6 | 2 | 525 | 40.0 | 526 | 39.8 | 525 | 40.0 |
| 456.hmmer | 2 | 325 | 57.4 | 317 | 58.8 | 319 | 58.4 | 2 | 250 | 74.6 | 250 | 74.6 | 248 | 75.4 |
| 458.sjeng | 2 | 690 | 35.0 | 689 | 35.2 | 692 | 35.0 | 2 | 688 | 35.2 | 689 | 35.2 | 688 | 35.2 |
| 462.libquantum | 2 | 196 | 212 | 196 | 212 | 196 | 211 | 2 | 196 | 212 | 196 | 212 | 196 | 212 |
| 464.h264ref | 2 | 632 | 70.0 | 632 | 70.0 | 632 | 70.0 | 2 | 620 | 71.4 | 618 | 71.6 | 618 | 71.6 |
| 471.omnetpp | 2 | 451 | 27.8 | 452 | 27.6 | 451 | 27.8 | 2 | 419 | 29.8 | 420 | 29.8 | 420 | 29.8 |
| 473.astar | 2 | 496 | 28.4 | 494 | 28.4 | 494 | 28.4 | 2 | 503 | 28.0 | 503 | 28.0 | 501 | 28.0 |
| 483.xalancbmk | 2 | 290 | 47.6 | 292 | 47.2 | 293 | 47.2 | 2 | 290 | 47.6 | 292 | 47.2 | 293 | 47.2 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 16.0 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2016 program folder)
Platform Notes
Sysinfo program C:\SPEC16.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on CltE03F49ACBFDE Fri Mar 18 12:46:34 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Enterprise OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: AMD64 Family 21 Model 48 Stepping 1 AuthenticAMD ~3500 Mhz BIOS Version : American Megatrends Inc. 2502, 12/11/2015 Total Physical Memory: 7,108 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 25359 L3CacheSize : 0 MaxClockSpeed : 3500 Name : AMD A6-7400K Radeon R5, 6 Compute Cores 2C+4G NumberOfCores : 1 NumberOfLogicalProcessors: 2 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU + 64GB memory using Windows 8.1 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 |
C++ benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc12 | |
| 473.astar: | C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 /arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 shlW64M.lib |
| 483.xalancbmk: | basepeak = yes |
