SPEC® CINT2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS A88X-PRO Motherboard (AMD A6 PRO-8550 with
Radeon R5 Graphics)

CPU2006 license: 13 Test date: Jul-2016
Test sponsor: Intel Corporation Hardware Availability: Sep-2015
Tested by: Intel Corporation Software Availability: Aug-2015

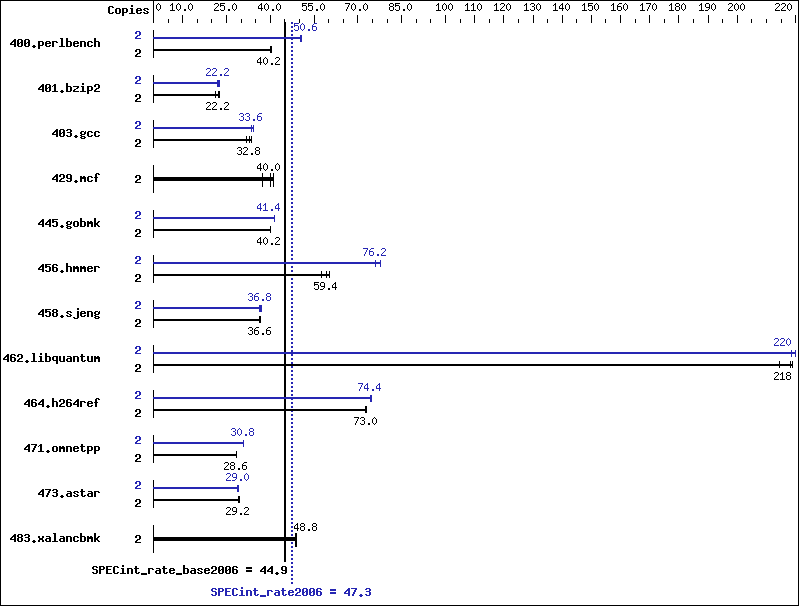

Benchmark results graph
Hardware
CPU Name: AMD A6 PRO-8550B
CPU Characteristics: AMD Turbo CORE technology up to 4.00 GHz
CPU MHz: 3700
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 96 KB I on chip per chip; 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx8 PC3-10600U-11)
Disk Subsystem: Seagate Barracuda 250 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Ultimate
6.1.7601 Service Pack 1 Build 7601
Compiler: C/C++: Version 16.0.0.110 of Intel C++ Studio XE
for Windows;
Libraries: Version 18.00.30723 of Microsoft
Visual Studio 2013
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 11.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 486 40.2 488 40.0 485 40.4 2 387 50.6 386 50.6 388 50.4
401.bzip2 2 856 22.6 898 21.4 867 22.2 2 873 22.2 877 22.0 850 22.6
403.gcc 2 483 33.4 491 32.8 504 32.0 2 472 34.2 480 33.6 483 33.4
429.mcf 2 457 40.0 491 37.2 442 41.2 2 457 40.0 491 37.2 442 41.2
445.gobmk 2 522 40.2 524 40.0 522 40.2 2 506 41.4 506 41.4 507 41.4
456.hmmer 2 325 57.4 314 59.4 309 60.4 2 240 77.6 246 76.0 245 76.2
458.sjeng 2 661 36.6 660 36.6 670 36.2 2 655 37.0 659 36.8 664 36.4
462.libquantum 2 189 219   193 215   190 218   2 189 220   189 220   190 218
464.h264ref 2 609 72.6 606 73.0 607 73.0 2 593 74.6 595 74.4 594 74.4
471.omnetpp 2 436 28.6 436 28.6 437 28.6 2 404 31.0 405 30.8 405 30.8
473.astar 2 480 29.2 479 29.4 480 29.2 2 486 29.0 486 29.0 486 28.8
483.xalancbmk 2 283 48.6 283 48.8 281 49.0 2 283 48.6 283 48.8 281 49.0

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 16.0 was set up to
 generate 32-bit binaries with the command:
 "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2016 program folder)

Platform Notes

 Sysinfo program C:\SPEC16.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on CltE03F49ACBFDE Wed Jul 13 11:06:24 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Ultimate
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: AMD64 Family 21 Model 56 Stepping 1 AuthenticAMD ~3700 Mhz
 BIOS Version  : American Megatrends Inc. 2502, 12/11/2015
 Total Physical Memory: 7,108 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 25359
 L3CacheSize   : 0
 MaxClockSpeed : 3700
 Name          : AMD PRO A6-8550B R5, 6 Compute Cores 2C+4G
 NumberOfCores : 1
 NumberOfLogicalProcessors: 2

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU
 + 64GB memory using Windows 8.1 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F256000000

C++ benchmarks:

 /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F256000000   shlW32M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl -Qvc12   -Qstd=c99
456.hmmer:  C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe
458.sjeng:  C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe
462.libquantum:  C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe   -Qstd=c99

C++ benchmarks (except as noted below):

 icl -Qvc12
473.astar:  C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DWIN32
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F256000000   shlW32M.lib    -link /FORCE:MULTIPLE
401.bzip2:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F256000000
403.gcc:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F256000000
429.mcf:  basepeak = yes
445.gobmk:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F256000000
456.hmmer:  -Qauto-ilp32   /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo(1)   -O3(1)   -Qprec-div-(1)   -Qopt-prefetch(1)   /F256000000
458.sjeng:  -Qauto-ilp32   /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo(1)   -O3(1)   -Qprec-div-(1)   -Qunroll4(1)   /F256000000
462.libquantum:  -Qauto-ilp32   /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F256000000
464.h264ref:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F256000000

C++ benchmarks:

471.omnetpp:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F256000000   shlW32M.lib    -link /FORCE:MULTIPLE
473.astar:  -Qauto-ilp32   /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F256000000   shlW64M.lib
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca
456.hmmer:  -link -LIBPATH:C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/compiler/lib/intel64 -link -LIBPATH:C:\Program Files (x86)\Microsoft SDKs\Windows?7.1A\Libd   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 12.0/VC/lib/AMD64
458.sjeng:  -link -LIBPATH:C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/compiler/lib/intel64 -link -LIBPATH:C:\Program Files (x86)\Microsoft SDKs\Windows?7.1A\Libd   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 12.0/VC/lib/AMD64
462.libquantum:  -link -LIBPATH:C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/compiler/lib/intel64 -link -LIBPATH:C:\Program Files (x86)\Microsoft SDKs\Windows?7.1A\Libd   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 12.0/VC/lib/AMD64

C++ benchmarks:

473.astar:  -link /FORCE:MULTIPLE -link -LIBPATH:C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/compiler/lib/intel64 -LIBPATH:C:\Program Files (x86)\Microsoft SDKs\Windows?7.1A\Libd   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 12.0/VC/lib/AMD64

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.xml.
