| CPU2006 license: | 13 | Test date: | Jun-2016 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jan-2014 |
| Tested by: | Intel Corporation | Software Availability: | Aug-2015 |
| Hardware | |
|---|---|
| CPU Name: | AMD A10-7700K |
| CPU Characteristics: | AMD Turbo CORE technology up to 3.80 GHz |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 192 KB I on chip per chip, 96 KB I shared / 2 cores; 16 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600U-11) |
| Disk Subsystem: | Seagate Barracuda 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 7 Ultimate 6.1.7601 Service Pack 1 Build 7601 |
| Compiler: | C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Fortran: Version 16.0.0.110 of Intel Fortran Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 11.0 from http://www.microquill.com/ |

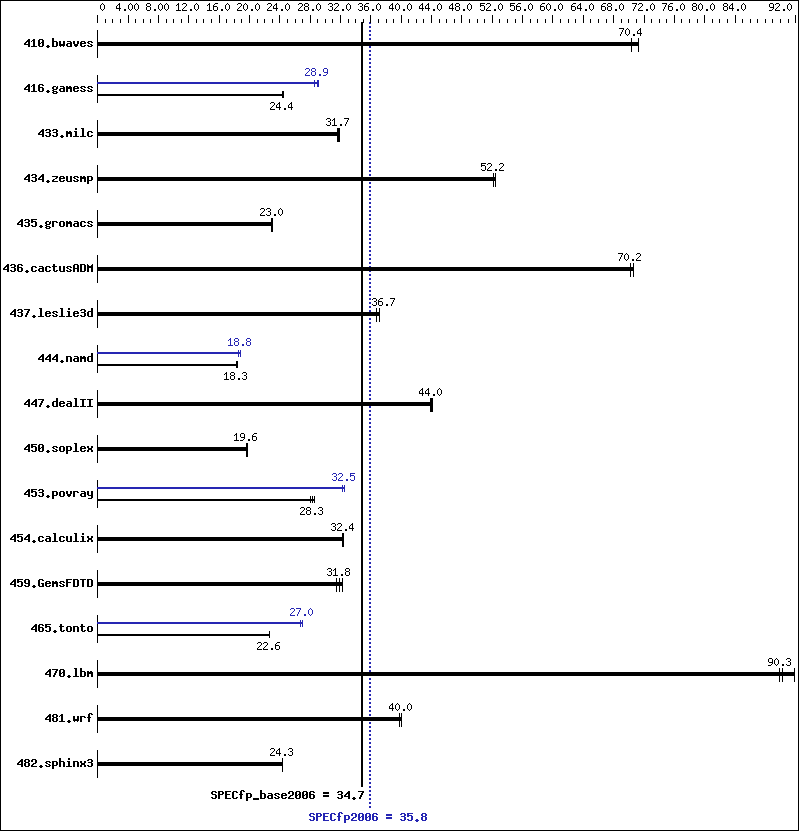

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 193 | 70.4 | 193 | 70.3 | 191 | 71.3 | 193 | 70.4 | 193 | 70.3 | 191 | 71.3 |
| 416.gamess | 803 | 24.4 | 803 | 24.4 | 798 | 24.5 | 677 | 28.9 | 674 | 29.1 | 684 | 28.6 |
| 433.milc | 290 | 31.7 | 289 | 31.8 | 290 | 31.6 | 290 | 31.7 | 289 | 31.8 | 290 | 31.6 |
| 434.zeusmp | 174 | 52.2 | 174 | 52.2 | 174 | 52.4 | 174 | 52.2 | 174 | 52.2 | 174 | 52.4 |
| 435.gromacs | 312 | 22.9 | 310 | 23.0 | 311 | 23.0 | 312 | 22.9 | 310 | 23.0 | 311 | 23.0 |
| 436.cactusADM | 169 | 70.6 | 170 | 70.2 | 170 | 70.2 | 169 | 70.6 | 170 | 70.2 | 170 | 70.2 |
| 437.leslie3d | 256 | 36.7 | 256 | 36.7 | 254 | 37.1 | 256 | 36.7 | 256 | 36.7 | 254 | 37.1 |
| 444.namd | 438 | 18.3 | 436 | 18.4 | 438 | 18.3 | 431 | 18.6 | 427 | 18.8 | 427 | 18.8 |
| 447.dealII | 260 | 44.0 | 261 | 43.8 | 260 | 44.1 | 260 | 44.0 | 261 | 43.8 | 260 | 44.1 |
| 450.soplex | 426 | 19.6 | 423 | 19.7 | 425 | 19.6 | 426 | 19.6 | 423 | 19.7 | 425 | 19.6 |
| 453.povray | 186 | 28.6 | 190 | 28.1 | 188 | 28.3 | 165 | 32.3 | 164 | 32.5 | 164 | 32.5 |
| 454.calculix | 255 | 32.4 | 255 | 32.4 | 255 | 32.3 | 255 | 32.4 | 255 | 32.4 | 255 | 32.3 |
| 459.GemsFDTD | 337 | 31.5 | 334 | 31.8 | 329 | 32.2 | 337 | 31.5 | 334 | 31.8 | 329 | 32.2 |
| 465.tonto | 435 | 22.6 | 435 | 22.6 | 434 | 22.7 | 365 | 27.0 | 365 | 27.0 | 369 | 26.7 |
| 470.lbm | 153 | 89.9 | 152 | 90.3 | 150 | 91.9 | 153 | 89.9 | 152 | 90.3 | 150 | 91.9 |
| 481.wrf | 281 | 39.8 | 278 | 40.1 | 279 | 40.0 | 281 | 39.8 | 278 | 40.1 | 279 | 40.0 |
| 482.sphinx3 | 801 | 24.3 | 799 | 24.4 | 801 | 24.3 | 801 | 24.3 | 799 | 24.4 | 801 | 24.3 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 16.0 was set up to generate 64-bit binaries with the command: "psxevars.bat intel64" (shortcut provided in the Intel(r) Parallel Studio XE 2016 program folder)
Platform Notes
Sysinfo program C:\SPEC16.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt1C872C5C6B24 Wed Jun 1 20:29:21 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Ultimate OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: AMD64 Family 21 Model 48 Stepping 1 AuthenticAMD ~3400 Mhz BIOS Version : American Megatrends Inc. 2502, 12/11/2015 Total Physical Memory: 7,108 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 25359 L3CacheSize : 0 MaxClockSpeed : 3400 Name : AMD A10-7700K Radeon R7, 10 Compute Cores 4C+6G NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
450.soplex (base): "getline_test" src.alt was used. 447.dealII (base): "max_prototype" src.alt was used. 447.dealII (base): "cxx11_make_pair" src.alt was used. 450.soplex (base): "getline_test" src.alt was used. 447.dealII (base): "max_prototype" src.alt was used. 447.dealII (base): "cxx11_make_pair" src.alt was used. OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU + 64GB memory using Windows 8.1 Enterprise 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc12 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc12 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc12 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 -names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DSPEC_CPU_BOOST_CONFIG_MSC_VER -DSPEC_NEED_ALGORITHM |
| 450.soplex: | -DSPEC_CPU_P64 -DSPEC_GETLINE_TEST |
| 453.povray: | -DSPEC_CPU_P64 |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
C++ benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qcxx-features /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
Benchmarks using both Fortran and C:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc12 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc12 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc12 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
