| CPU2006 license: | 3 | Test date: | Oct-2016 |
|---|---|---|---|
| Test sponsor: | HPE | Hardware Availability: | Aug-2016 |
| Tested by: | HPE | Software Availability: | Sep-2016 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8890 v4 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.40 GHz |
| CPU MHz: | 2200 |
| FPU: | Integrated |
| CPU(s) enabled: | 96 cores, 4 chips, 24 cores/chip |
| CPU(s) orderable: | 2,4 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 60 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (32 x 16 GB 2Rx4 PC4-2400T-R, running at 1600 MHz) |
| Disk Subsystem: | 1 x 800 GB NVMe PCIe SSD, RAID 0 |
| Other Hardware: | DL580 Gen9 NVMe SSD Express Bay Enablement Kit |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 (x86_64) SP1, Kernel 3.12.49-11-default |
| Compiler: | C/C++: Version 17.0.0.098 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

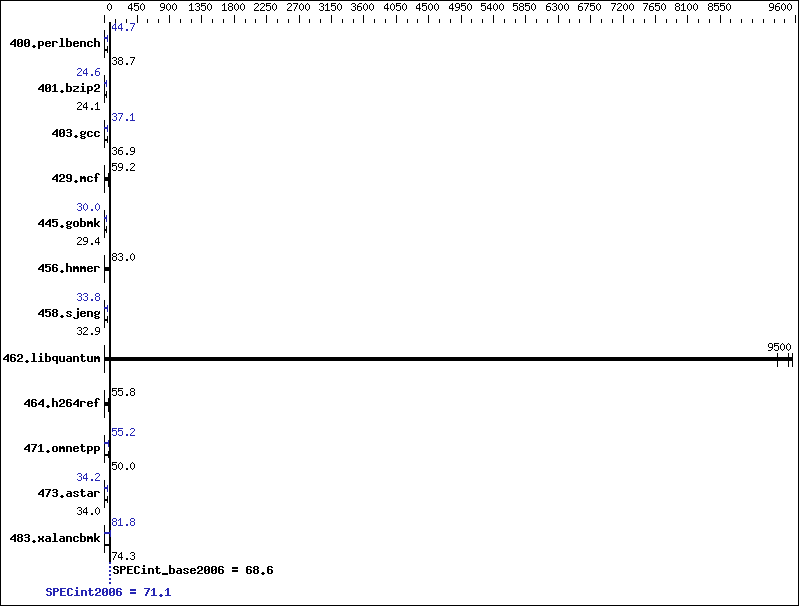

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 253 | 38.7 | 253 | 38.7 | 252 | 38.7 | 219 | 44.7 | 219 | 44.6 | 219 | 44.7 |
| 401.bzip2 | 398 | 24.2 | 400 | 24.1 | 400 | 24.1 | 392 | 24.6 | 392 | 24.6 | 392 | 24.6 |
| 403.gcc | 218 | 37.0 | 218 | 36.9 | 218 | 36.9 | 217 | 37.1 | 217 | 37.1 | 218 | 36.9 |
| 429.mcf | 157 | 57.9 | 154 | 59.3 | 154 | 59.2 | 157 | 57.9 | 154 | 59.3 | 154 | 59.2 |
| 445.gobmk | 357 | 29.4 | 357 | 29.4 | 356 | 29.4 | 350 | 29.9 | 350 | 30.0 | 350 | 30.0 |
| 456.hmmer | 112 | 83.2 | 112 | 83.0 | 112 | 83.0 | 112 | 83.2 | 112 | 83.0 | 112 | 83.0 |
| 458.sjeng | 368 | 32.9 | 369 | 32.8 | 368 | 32.9 | 358 | 33.8 | 358 | 33.8 | 358 | 33.8 |
| 462.libquantum | 2.17 | 9550 | 2.22 | 9350 | 2.18 | 9500 | 2.17 | 9550 | 2.22 | 9350 | 2.18 | 9500 |
| 464.h264ref | 396 | 55.8 | 397 | 55.7 | 395 | 56.0 | 396 | 55.8 | 397 | 55.7 | 395 | 56.0 |
| 471.omnetpp | 123 | 50.7 | 125 | 50.0 | 127 | 49.2 | 113 | 55.2 | 113 | 55.2 | 113 | 55.1 |
| 473.astar | 206 | 34.0 | 207 | 34.0 | 208 | 33.8 | 205 | 34.2 | 206 | 34.1 | 205 | 34.2 |
| 483.xalancbmk | 92.3 | 74.8 | 92.8 | 74.3 | 92.9 | 74.3 | 84.4 | 81.8 | 84.5 | 81.6 | 84.3 | 81.8 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled by default.
Platform Notes
BIOS Configuration: HP Power Profile set to Balanced Power and Performance QPI Snoop Configuration set to Home Snoop Collaborative Power Control set to Disabled Thermal Configuration set to Maximum Cooling Processor Power and Utilization Monitoring set to Disabled Intel Hyper Threading set to Disabled Memory Refresh Rate set to 1x Refresh Sysinfo program /home/IC17/config/sysinfo.rev6993 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1) running on linux-vi0i Fri Oct 7 14:27:30 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-8890 v4 @ 2.20GHz 4 "physical id"s (chips) 96 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 24 siblings : 24 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 2: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 3: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 cache size : 61440 KB From /proc/meminfo MemTotal: 529314968 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 1 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP1" VERSION_ID="12.1" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp1" uname -a: Linux linux-vi0i 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015 (8d714a0) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Oct 7 14:23 SPEC is set to: /home/IC17 Filesystem Type Size Used Avail Use% Mounted on /dev/nvme0n1p4 xfs 703G 100G 604G 15% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS HP U17 08/06/2016 Memory: 64x UNKNOWN NOT AVAILABLE 32x UNKNOWN NOT AVAILABLE 16 GB 2 rank 2400 MHz, configured at 1600 MHz (End of data from sysinfo program) Regarding the sysinfo display about the memory installed, the correct amount of memory is 512 GB and the dmidecode description should have one line reading as: 32x UNKNOWN NOT AVAILABLE 16 GB 2 rank 2400 MHz, configured at 1600 MHz
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/IC17/libs/32:/home/IC17/libs/64:/home/IC17/sh10.2" OMP_NUM_THREADS = "96" Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM memory using Redhat Enterprise Linux 7.2
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch -auto-p32 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh10.2 -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 |
| 445.gobmk: | icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 |
C++ benchmarks (except as noted below):
| icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -qopt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -auto-ilp32 -qopt-prefetch |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -qopt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -qopt-ra-region-strategy=block -Wl,-z,muldefs -L/sh10.2 -lsmartheap |
| 473.astar: | -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh10.2 -lsmartheap64 |
| 483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch -Wl,-z,muldefs -L/sh10.2 -lsmartheap |
