CPU2006 license: | 9006 | Test date: | Mar-2016 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | Dec-2016 |
Tested by: | NEC Corporation | Software Availability: | Jan-2016 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2699 v4 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
CPU MHz: | 2200 |
FPU: | Integrated |
CPU(s) enabled: | 44 cores, 2 chips, 22 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 55 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (8 x 16 GB 2Rx4 PC4-2400T-R) |
Disk Subsystem: | NEC Storage M310 via Fibre Channel (See additional details below) |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 7.2 (Maipo) Kernel 3.10.0-327.4.5.el7.x86_64 |
Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux; Fortran: Version 16.0.0.101 of Intel Fortran Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

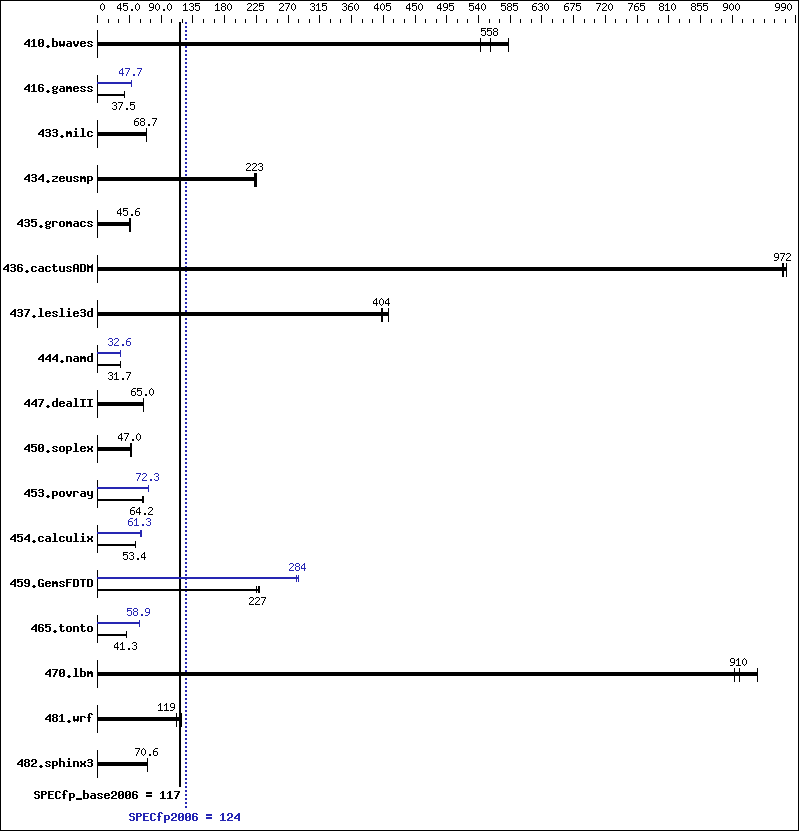

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 23.4 | 582 | 24.4 | 558 | 25.0 | 544 | 23.4 | 582 | 24.4 | 558 | 25.0 | 544 |
416.gamess | 523 | 37.5 | 524 | 37.3 | 521 | 37.6 | 410 | 47.7 | 411 | 47.7 | 411 | 47.6 |
433.milc | 133 | 69.0 | 134 | 68.7 | 134 | 68.5 | 133 | 69.0 | 134 | 68.7 | 134 | 68.5 |
434.zeusmp | 40.8 | 223 | 40.8 | 223 | 40.5 | 225 | 40.8 | 223 | 40.8 | 223 | 40.5 | 225 |
435.gromacs | 160 | 44.6 | 156 | 45.8 | 156 | 45.6 | 160 | 44.6 | 156 | 45.8 | 156 | 45.6 |
436.cactusADM | 12.3 | 972 | 12.2 | 977 | 12.3 | 972 | 12.3 | 972 | 12.2 | 977 | 12.3 | 972 |
437.leslie3d | 22.8 | 412 | 23.3 | 403 | 23.3 | 404 | 22.8 | 412 | 23.3 | 403 | 23.3 | 404 |
444.namd | 253 | 31.7 | 253 | 31.7 | 253 | 31.7 | 246 | 32.6 | 246 | 32.6 | 246 | 32.6 |
447.dealII | 175 | 65.3 | 176 | 65.0 | 177 | 64.5 | 175 | 65.3 | 176 | 65.0 | 177 | 64.5 |
450.soplex | 177 | 47.0 | 177 | 47.2 | 178 | 46.9 | 177 | 47.0 | 177 | 47.2 | 178 | 46.9 |
453.povray | 84.3 | 63.1 | 82.2 | 64.7 | 82.9 | 64.2 | 73.6 | 72.3 | 73.4 | 72.5 | 74.5 | 71.4 |
454.calculix | 154 | 53.5 | 155 | 53.4 | 155 | 53.4 | 134 | 61.4 | 135 | 61.3 | 135 | 61.3 |
459.GemsFDTD | 46.7 | 227 | 47.1 | 225 | 46.1 | 230 | 37.3 | 284 | 37.7 | 282 | 37.3 | 284 |
465.tonto | 238 | 41.3 | 243 | 40.5 | 238 | 41.4 | 167 | 58.8 | 166 | 59.3 | 167 | 58.9 |
470.lbm | 15.1 | 910 | 14.7 | 936 | 15.2 | 903 | 15.1 | 910 | 14.7 | 936 | 15.2 | 903 |
481.wrf | 94.2 | 119 | 99.7 | 112 | 93.9 | 119 | 94.2 | 119 | 99.7 | 112 | 93.9 | 119 |
482.sphinx3 | 276 | 70.6 | 276 | 70.6 | 276 | 70.6 | 276 | 70.6 | 276 | 70.6 | 276 | 70.6 |
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Settings: Energy Performance: Performance Patrol Scrub: Disabled Snoop Mode: Home Snoop Hyper-Threading: Disabled Storage Configuration for Disk Subsystem: NEC Storage M310 has 4 x 600 GB 10000 RPM SAS disks under RAID-10 configuration mounted over 8Gbps Fibre Channel interface with these options "defaults" in the /etc/fstab.
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact" LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" OMP_NUM_THREADS = "44" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -ansi-alias |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -ansi-alias |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
465.tonto: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | -xCORE-AVX2 -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
481.wrf: | basepeak = yes |
