| CPU2006 license: | 9050 | Test date: | Jun-2017 |
|---|---|---|---|
| Test sponsor: | Quanta Computer Inc. | Hardware Availability: | Jul-2017 |
| Tested by: | Quanta Cloud Technology | Software Availability: | Nov-2016 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Platinum 8180 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.80 GHz |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 56 cores, 2 chips, 28 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 38.5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 384 GB (24 x 16 GB 2Rx8 PC4-2666V-R) |
| Disk Subsystem: | 1 x 480 GB SATA SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.3 (Maipo) 3.10.0-514.el7.x86_64 |
| Compiler: | C/C++: Version 17.0.1.132 of Intel C/C++ Compiler for Linux |
| Auto Parallel: | Yes |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

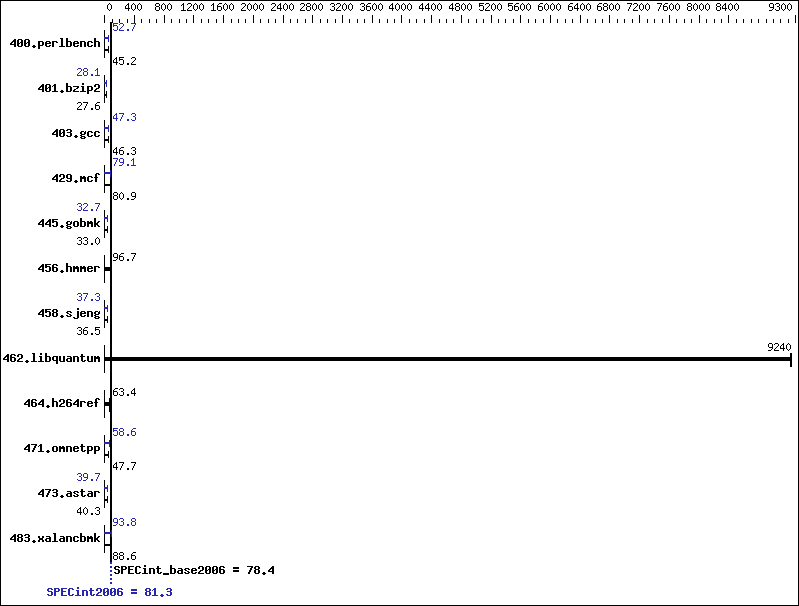

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 216 | 45.3 | 216 | 45.2 | 216 | 45.2 | 184 | 53.0 | 186 | 52.7 | 186 | 52.7 |
| 401.bzip2 | 350 | 27.6 | 350 | 27.6 | 349 | 27.6 | 343 | 28.1 | 343 | 28.1 | 343 | 28.1 |
| 403.gcc | 174 | 46.4 | 174 | 46.3 | 174 | 46.3 | 170 | 47.2 | 170 | 47.3 | 170 | 47.3 |
| 429.mcf | 113 | 80.9 | 113 | 80.9 | 113 | 80.8 | 116 | 78.4 | 113 | 80.6 | 115 | 79.1 |
| 445.gobmk | 317 | 33.0 | 317 | 33.0 | 318 | 33.0 | 320 | 32.8 | 320 | 32.7 | 320 | 32.7 |
| 456.hmmer | 97.0 | 96.2 | 96.4 | 96.8 | 96.5 | 96.7 | 97.0 | 96.2 | 96.4 | 96.8 | 96.5 | 96.7 |
| 458.sjeng | 332 | 36.5 | 332 | 36.5 | 332 | 36.5 | 324 | 37.3 | 324 | 37.3 | 324 | 37.3 |
| 462.libquantum | 2.24 | 9240 | 2.25 | 9220 | 2.24 | 9250 | 2.24 | 9240 | 2.25 | 9220 | 2.24 | 9250 |
| 464.h264ref | 349 | 63.4 | 349 | 63.4 | 349 | 63.4 | 349 | 63.4 | 349 | 63.4 | 349 | 63.4 |
| 471.omnetpp | 132 | 47.5 | 127 | 49.1 | 131 | 47.7 | 107 | 58.6 | 106 | 58.7 | 109 | 57.3 |
| 473.astar | 174 | 40.3 | 175 | 40.2 | 174 | 40.3 | 177 | 39.7 | 177 | 39.8 | 177 | 39.7 |
| 483.xalancbmk | 77.9 | 88.6 | 81.5 | 84.7 | 77.9 | 88.6 | 73.6 | 93.8 | 73.5 | 93.8 | 75.3 | 91.6 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Sysinfo program /root/Desktop/speccpu-auto/config/sysinfo.rev6993 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1) running on localhost.localdomain Tue Jun 20 19:58:30 2017 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz 2 "physical id"s (chips) 112 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 28 siblings : 56 physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 cache size : 39424 KB From /proc/meminfo MemTotal: 395678724 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.3 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.3" PRETTY_NAME="Red Hat Enterprise Linux Server 7.3 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.3:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.3 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.3 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.3:ga:server uname -a: Linux localhost.localdomain 3.10.0-514.el7.x86_64 #1 SMP Wed Oct 19 11:24:13 EDT 2016 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jun 20 19:42 SPEC is set to: /root/Desktop/speccpu-auto Filesystem Type Size Used Avail Use% Mounted on /dev/nvme0n1p2 xfs 400G 32G 369G 8% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS American Megatrends Inc. 3A03.D01 05/04/2017 Memory: 24x Micron 18ASF2G72PDZ-2G6D1 16 GB 2 rank 2666 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/root/Desktop/speccpu-auto/lib/ia32:/root/Desktop/speccpu-auto/lib/intel64:/root/Desktop/speccpu-auto/sh10.2" OMP_NUM_THREADS = "56" Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM memory using Redhat Enterprise Linux 7.2 Transparent Huge Pages enabled by default.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX512 -ipo -O3 -no-prec-div -parallel -qopt-prefetch -auto-p32 |
C++ benchmarks:
| -xCORE-AVX512 -ipo -O3 -no-prec-div -qopt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh10.2 -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 |
| 445.gobmk: | icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 |
C++ benchmarks (except as noted below):
| icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX512(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -qopt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX512(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -auto-ilp32 -qopt-prefetch |
| 403.gcc: | -xCORE-AVX512 -ipo -O3 -no-prec-div -inline-calloc -qopt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | -xCORE-AVX512 -ipo -O3 -no-prec-div -parallel -qopt-prefetch -auto-p32 |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX512(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX512(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX512(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -qopt-ra-region-strategy=block -Wl,-z,muldefs -L/sh10.2 -lsmartheap |
| 473.astar: | -xCORE-AVX512 -ipo -O3 -no-prec-div -qopt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh10.2 -lsmartheap64 |
| 483.xalancbmk: | -xCORE-AVX512 -ipo -O3 -no-prec-div -qopt-prefetch -Wl,-z,muldefs -L/sh10.2 -lsmartheap |
