CPU2006 license: | 3175 | Test date: | May-2017 |
---|---|---|---|
Test sponsor: | Huawei | Hardware Availability: | Jul-2017 |
Tested by: | Huawei | Software Availability: | Nov-2016 |
Hardware | |
---|---|
CPU Name: | Intel Xeon Platinum 8180 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.80 GHz |
CPU MHz: | 2500 |
FPU: | Integrated |
CPU(s) enabled: | 56 cores, 2 chips, 28 cores/chip |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
L3 Cache: | 38.5 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 384 GB (24 x 16 GB 2Rx8 PC4-2666V-R) |
Disk Subsystem: | 1 x 1200 GB SAS, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 12 SP2 (x86_64) 4.4.21-69-default |
Compiler: | C/C++: Version 17.0.0.098 of Intel C/C++ Compiler for Linux; Fortran: Version 17.0.0.098 of Intel Fortran Compiler for Linux |
Auto Parallel: | Yes |
File System: | xfs |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

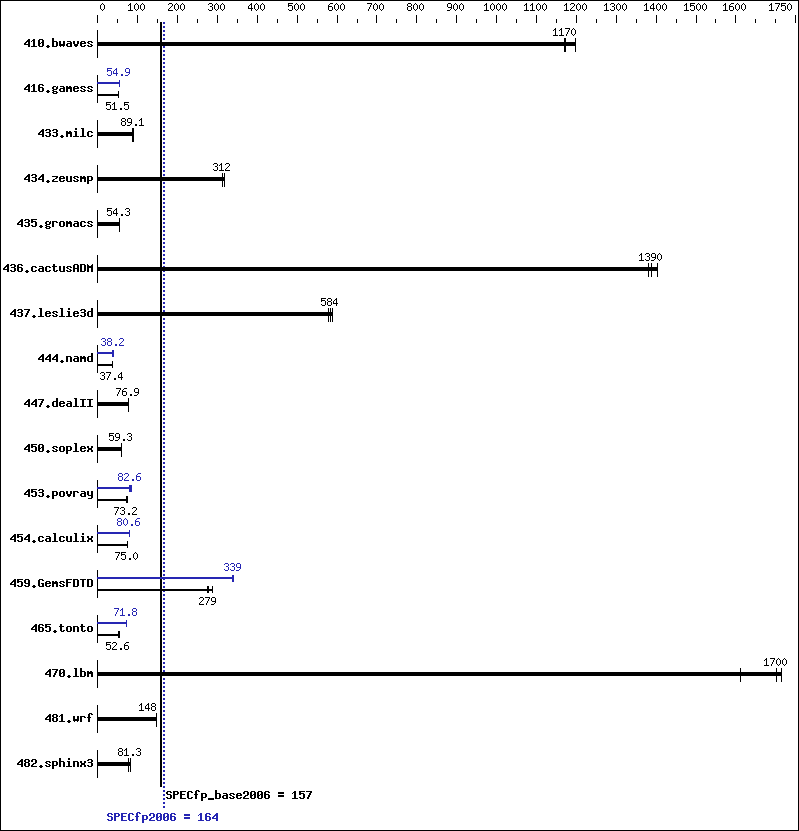

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 11.3 | 1200 | 11.6 | 1170 | 11.6 | 1170 | 11.3 | 1200 | 11.6 | 1170 | 11.6 | 1170 |
416.gamess | 380 | 51.5 | 380 | 51.5 | 380 | 51.5 | 357 | 54.9 | 357 | 54.9 | 356 | 54.9 |
433.milc | 102 | 90.0 | 104 | 88.2 | 103 | 89.1 | 102 | 90.0 | 104 | 88.2 | 103 | 89.1 |
434.zeusmp | 28.7 | 317 | 29.1 | 312 | 29.2 | 312 | 28.7 | 317 | 29.1 | 312 | 29.2 | 312 |
435.gromacs | 132 | 54.3 | 131 | 54.3 | 131 | 54.3 | 132 | 54.3 | 131 | 54.3 | 131 | 54.3 |
436.cactusADM | 8.65 | 1380 | 8.60 | 1390 | 8.52 | 1400 | 8.65 | 1380 | 8.60 | 1390 | 8.52 | 1400 |
437.leslie3d | 15.9 | 589 | 16.1 | 584 | 16.3 | 577 | 15.9 | 589 | 16.1 | 584 | 16.3 | 577 |
444.namd | 214 | 37.5 | 214 | 37.4 | 214 | 37.4 | 210 | 38.3 | 210 | 38.2 | 210 | 38.2 |
447.dealII | 148 | 77.2 | 150 | 76.4 | 149 | 76.9 | 148 | 77.2 | 150 | 76.4 | 149 | 76.9 |
450.soplex | 141 | 59.3 | 141 | 59.3 | 141 | 59.1 | 141 | 59.3 | 141 | 59.3 | 141 | 59.1 |
453.povray | 72.7 | 73.2 | 72.8 | 73.1 | 72.0 | 73.9 | 64.4 | 82.6 | 67.1 | 79.3 | 63.7 | 83.5 |
454.calculix | 110 | 75.0 | 110 | 75.0 | 110 | 74.9 | 102 | 80.8 | 102 | 80.6 | 103 | 80.4 |
459.GemsFDTD | 37.0 | 287 | 38.1 | 279 | 38.6 | 275 | 31.5 | 337 | 31.2 | 340 | 31.3 | 339 |
465.tonto | 181 | 54.4 | 187 | 52.6 | 189 | 52.0 | 137 | 71.9 | 137 | 71.8 | 137 | 71.6 |
470.lbm | 8.02 | 1710 | 8.52 | 1610 | 8.07 | 1700 | 8.02 | 1710 | 8.52 | 1610 | 8.07 | 1700 |
481.wrf | 75.5 | 148 | 75.7 | 147 | 75.6 | 148 | 75.5 | 148 | 75.7 | 147 | 75.6 | 148 |
482.sphinx3 | 238 | 81.7 | 240 | 81.3 | 251 | 77.6 | 238 | 81.7 | 240 | 81.3 | 251 | 77.6 |
Stack size set to unlimited using "ulimit -s unlimited"
BIOS configuration: Set Power Efficiency Mode to Custom Set Hyper-Threading to Disable Sysinfo program /spec17/config/sysinfo.rev6993 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1) running on linux-jm4z Fri May 26 13:10:15 2017 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz 2 "physical id"s (chips) 56 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 28 siblings : 28 physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 cache size : 39424 KB From /proc/meminfo MemTotal: 394122080 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 2 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP2" VERSION_ID="12.2" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp2" uname -a: Linux linux-jm4z 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016 (9464f67) x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 26 09:01 SPEC is set to: /spec17 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 xfs 828G 24G 805G 3% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS INSYDE Corp. 0.10 03/09/2017 Memory: 24x Samsung M393A2K43BB1-CTD 16 GB 2 rank 2666 MHz (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact" LD_LIBRARY_PATH = "/spec17/libs/32:/spec17/libs/64:/spec17/sh10.2" OMP_NUM_THREADS = "56" Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM memory using Redhat Enterprise Linux 7.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll2 -inline-level=0 -qopt-prefetch -parallel |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -inline-calloc -qopt-malloc-options=3 -auto -unroll4 |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | -xCORE-AVX2 -ipo -O3 -no-prec-div -auto-ilp32 |
481.wrf: | basepeak = yes |
