SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS C220 M5 (Intel Xeon Platinum 8168,
2.70GHz)

CPU2006 license: 9019 Test date: Jun-2017
Test sponsor: Cisco Systems Hardware Availability: Aug-2017
Tested by: Cisco Systems Software Availability: Sep-2017

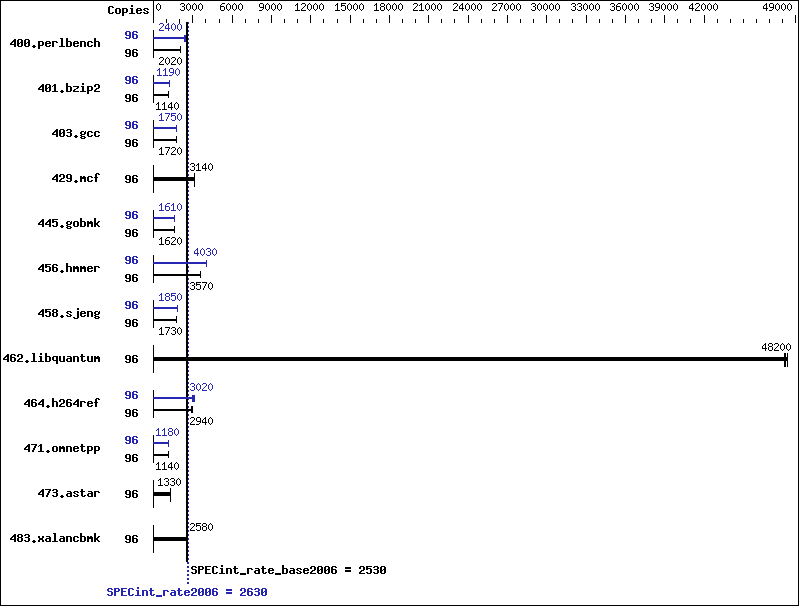

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8168
CPU Characteristics: Intel Turbo Boost Technology up to 3.70 GHz
CPU MHz: 2700
FPU: Integrated
CPU(s) enabled: 48 cores, 2 chips, 24 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 33 MB I+D on chip per chip
Other Cache: None
Memory: 384 GB (24 x 16 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 1 x 600 GB SAS 10K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
4.4.21-69-default
Compiler: C/C++: Version 18.0.0.082 of Intel C/C++
Beta Compiler for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 96 462   2030 464   2020 464   2020 96 394   2380 389   2410 391   2400
401.bzip2 96 808   1150 812   1140 815   1140 96 781   1190 780   1190 779   1190
403.gcc 96 449   1720 448   1720 450   1720 96 442   1750 443   1740 442   1750
429.mcf 96 279   3140 279   3130 279   3140 96 279   3140 279   3130 279   3140
445.gobmk 96 623   1620 622   1620 623   1620 96 624   1610 624   1610 624   1610
456.hmmer 96 252   3550 251   3570 250   3580 96 222   4030 222   4030 223   4020
458.sjeng 96 673   1730 673   1730 673   1730 96 629   1850 630   1850 629   1850
462.libquantum 96 41.3 48200 41.3 48200 41.1 48400 96 41.3 48200 41.3 48200 41.1 48400
464.h264ref 96 724   2940 720   2950 731   2910 96 678   3130 704   3020 709   3000
471.omnetpp 96 528   1140 528   1140 528   1140 96 509   1180 509   1180 509   1180
473.astar 96 507   1330 508   1330 508   1330 96 507   1330 508   1330 508   1330
483.xalancbmk 96 257   2580 257   2580 258   2570 96 257   2580 257   2580 258   2570

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Settings:
Intel HyperThreading Technology set to Enabled
CPU performance set to Enterprise
Power Performance Tuning set to OS
SNC set to Enabled
IMC Interleaving set to 1-way Interleave
Patrol Scrub set to Disabled
 Sysinfo program /home/cpu2006-1.2/config/sysinfo.rev6993
 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1)
 running on linux-0fck Sun Jul  2 21:22:55 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8168 CPU @ 2.70GHz
       2 "physical id"s (chips)
       96 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 24
       siblings  : 48
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
    cache size : 33792 KB

 From /proc/meminfo
    MemTotal:       394864132 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux linux-0fck 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016
    (9464f67) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jul 2 01:04

 SPEC is set to: /home/cpu2006-1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda2      xfs   500G   19G  482G   4% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Cisco Systems, Inc. C220M5.3.1.1d.0.0615170645 06/15/2017
   Memory:
    24x 0xCE00 M393A2G40EB2-CTD 16 GB 2 rank 2666 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/opt/intel/compilers_and_libraries_2018.0.082/linux/compiler/lib/ia32:/opt/intel/compilers_and_libraries_2018.0.082/linux/compiler/lib/intel64:/home/cpu2006-1.2/sh10.2"

 Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM
 memory using Redhat Enterprise Linux 7.2
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 shell invocation of 'sync; echo 3 > /proc/sys/vm/drop_caches' prior to run
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32 -L/opt/intel/compilers_and_libraries_2018.0.082/linux/lib/ia32

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2018.0.082/linux/lib/ia32

Base Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX_IA32
401.bzip2:  -D_FILE_OFFSET_BITS=64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64
458.sjeng:  -D_FILE_OFFSET_BITS=64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xHOST   -ipo   -O3   -no-prec-div   -qopt-prefetch   -qopt-mem-layout-trans=3

C++ benchmarks:

 -xHOST   -ipo   -O3   -no-prec-div   -qopt-prefetch   -qopt-mem-layout-trans=3   -Wl,-z,muldefs   -L/home/cpu2006-1.2/sh10.2 -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32 -L/opt/intel/compilers_and_libraries_2018.0.082/linux/lib/ia32
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2018.0.082/linux/lib/ia32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xHOST(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -auto-ilp32   -qopt-mem-layout-trans=3
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xHOST(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-prefetch   -auto-ilp32   -qopt-mem-layout-trans=3
403.gcc:  -xHOST   -ipo   -O3   -no-prec-div   -qopt-mem-layout-trans=3
429.mcf:  basepeak = yes
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xHOST(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-mem-layout-trans=3
456.hmmer:  -xHOST   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32   -qopt-mem-layout-trans=3
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xHOST(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll4   -auto-ilp32   -qopt-mem-layout-trans=3
462.libquantum:  basepeak = yes
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xHOST(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll2   -qopt-mem-layout-trans=3

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xHOST(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-ra-region-strategy=block    -qopt-mem-layout-trans=3   -Wl,-z,muldefs   -L/home/cpu2006-1.2/sh10.2 -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revF.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revH.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revF.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revH.xml.
