CPU2006 license: | 9017 | Test date: | Aug-2017 |
---|---|---|---|
Test sponsor: | Lenovo Global Technology | Hardware Availability: | Apr-2017 |
Tested by: | Lenovo Global Technology | Software Availability: | Apr-2017 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E3-1225 v6 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.70 GHz |
CPU MHz: | 3300 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 64 GB (4 x 16 GB 2Rx8 PC4-2400T-U) |
Disk Subsystem: | 1 x 800 GB SATA SSD |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 7.3 (Maipo) Kernel 3.10.0-514.el7.x86_64 |
Compiler: | C/C++: Version 17.0.3.191 of Intel C/C++ Compiler for Linux; Fortran: Version 17.0.3.191 of Intel Fortran Compiler for Linux |
Auto Parallel: | Yes |
File System: | xfs |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

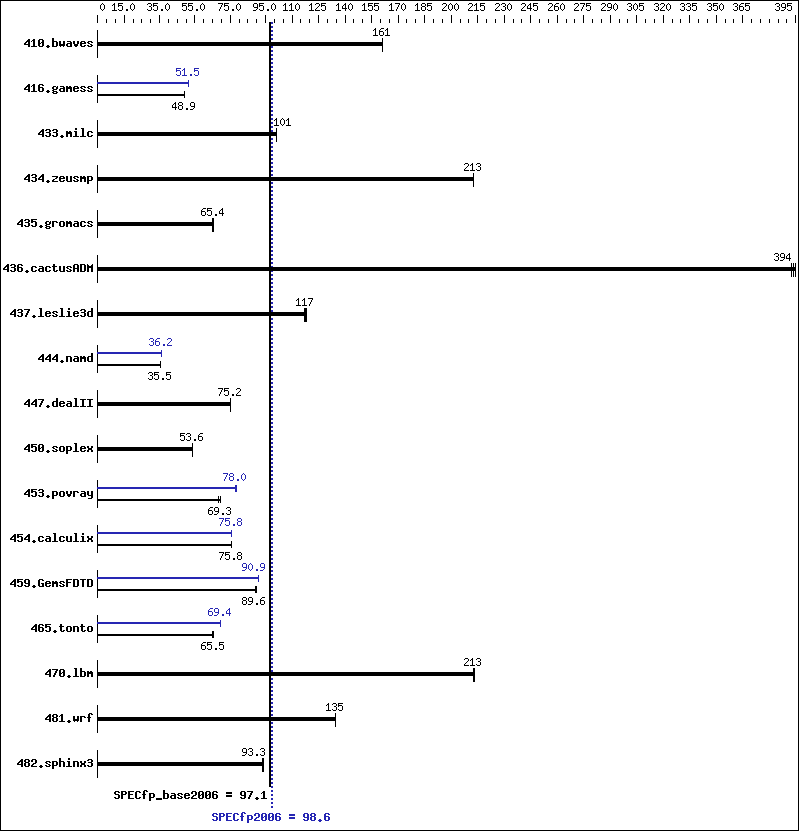

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 84.5 | 161 | 84.4 | 161 | 84.4 | 161 | 84.5 | 161 | 84.4 | 161 | 84.4 | 161 |
416.gamess | 400 | 48.9 | 400 | 48.9 | 400 | 48.9 | 380 | 51.6 | 380 | 51.5 | 380 | 51.5 |
433.milc | 90.6 | 101 | 90.6 | 101 | 90.8 | 101 | 90.6 | 101 | 90.6 | 101 | 90.8 | 101 |
434.zeusmp | 42.8 | 213 | 42.8 | 213 | 42.8 | 212 | 42.8 | 213 | 42.8 | 213 | 42.8 | 212 |
435.gromacs | 109 | 65.4 | 110 | 65.1 | 109 | 65.5 | 109 | 65.4 | 110 | 65.1 | 109 | 65.5 |
436.cactusADM | 30.3 | 394 | 30.4 | 393 | 30.3 | 395 | 30.3 | 394 | 30.4 | 393 | 30.3 | 395 |
437.leslie3d | 80.1 | 117 | 79.7 | 118 | 80.3 | 117 | 80.1 | 117 | 79.7 | 118 | 80.3 | 117 |
444.namd | 226 | 35.4 | 226 | 35.5 | 226 | 35.5 | 222 | 36.2 | 221 | 36.2 | 222 | 36.2 |
447.dealII | 152 | 75.2 | 152 | 75.2 | 152 | 75.1 | 152 | 75.2 | 152 | 75.2 | 152 | 75.1 |
450.soplex | 156 | 53.6 | 156 | 53.6 | 156 | 53.4 | 156 | 53.6 | 156 | 53.6 | 156 | 53.4 |
453.povray | 77.7 | 68.5 | 76.6 | 69.5 | 76.8 | 69.3 | 68.2 | 78.0 | 68.0 | 78.2 | 68.4 | 77.8 |
454.calculix | 109 | 75.8 | 109 | 75.8 | 109 | 75.8 | 109 | 75.7 | 109 | 75.8 | 109 | 75.9 |
459.GemsFDTD | 118 | 89.6 | 118 | 89.6 | 119 | 89.4 | 117 | 90.9 | 117 | 90.9 | 117 | 90.9 |
465.tonto | 150 | 65.6 | 151 | 65.2 | 150 | 65.5 | 142 | 69.3 | 142 | 69.4 | 142 | 69.5 |
470.lbm | 64.5 | 213 | 64.6 | 213 | 64.6 | 213 | 64.5 | 213 | 64.6 | 213 | 64.6 | 213 |
481.wrf | 83.1 | 134 | 83.0 | 135 | 82.9 | 135 | 83.1 | 134 | 83.0 | 135 | 82.9 | 135 |
482.sphinx3 | 208 | 93.7 | 209 | 93.2 | 209 | 93.3 | 208 | 93.7 | 209 | 93.2 | 209 | 93.3 |
Stack size set to unlimited using "ulimit -s unlimited"
BIOS configuration: Intel Virtualization Technology set to Disable Operating Mode set to Maximum Performance Sysinfo program /home/cpu2006-1.2-ic17.0u3/config/sysinfo.rev6993 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1) running on miaoli-01-rhel7.3 Fri Aug 11 17:30:33 2017 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E3-1225 v6 @ 3.30GHz 1 "physical id"s (chips) 4 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 4 physical 0: cores 0 1 2 3 cache size : 8192 KB From /proc/meminfo MemTotal: 65932400 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.3 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.3" PRETTY_NAME="Red Hat Enterprise Linux Server 7.3 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.3:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.3 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.3 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.3:ga:server uname -a: Linux miaoli-01-rhel7.3 3.10.0-514.el7.x86_64 #1 SMP Wed Oct 19 11:24:13 EDT 2016 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 11 13:10 SPEC is set to: /home/cpu2006-1.2-ic17.0u3 Filesystem Type Size Used Avail Use% Mounted on /dev/sda4 xfs 689G 5.1G 684G 1% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS LENOVO -[M3E123AUS-2.10]- 06/15/2017 Memory: 4x Samsung M378A2K43BB1-CRC 16 GB 2 rank 2400 MHz (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact" LD_LIBRARY_PATH = "/home/cpu2006-1.2-ic17.0u3/lib/ia32:/home/cpu2006-1.2-ic17.0u3/lib/intel64:/home/cpu2006-1.2-ic17.0u3/sh10.2" OMP_NUM_THREADS = "4" Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM memory using Redhat Enterprise Linux 7.2 Transparent Huge Pages disabled with: echo never > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: shell invocation of 'sync; echo 3 > /proc/sys/vm/drop_caches' prior to run
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll2 -inline-level=0 -qopt-prefetch -parallel |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -inline-calloc -qopt-malloc-options=3 -auto -unroll4 |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | -xCORE-AVX2 -ipo -O3 -no-prec-div -auto-ilp32 |
481.wrf: | basepeak = yes |
