CPU2006 license: | 9017 | Test date: | Aug-2017 |
---|---|---|---|
Test sponsor: | Lenovo Global Technology | Hardware Availability: | Aug-2017 |
Tested by: | Lenovo Global Technology | Software Availability: | Nov-2016 |
Hardware | |
---|---|
CPU Name: | Intel Xeon Platinum 8153 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
CPU MHz: | 2000 |
FPU: | Integrated |
CPU(s) enabled: | 32 cores, 2 chips, 16 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
L3 Cache: | 22 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 384 GB (12 x 32 GB 2Rx4 PC4-2666V-R) |
Disk Subsystem: | 1 x 800 GB SATA SSD |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 12 SP2 (x86_64) Kernel 4.4.21-69-default |
Compiler: | C/C++: Version 17.0.0.098 of Intel C/C++ Compiler for Linux; Fortran: Version 17.0.0.098 of Intel Fortran Compiler for Linux |
Auto Parallel: | Yes |
File System: | btrfs |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

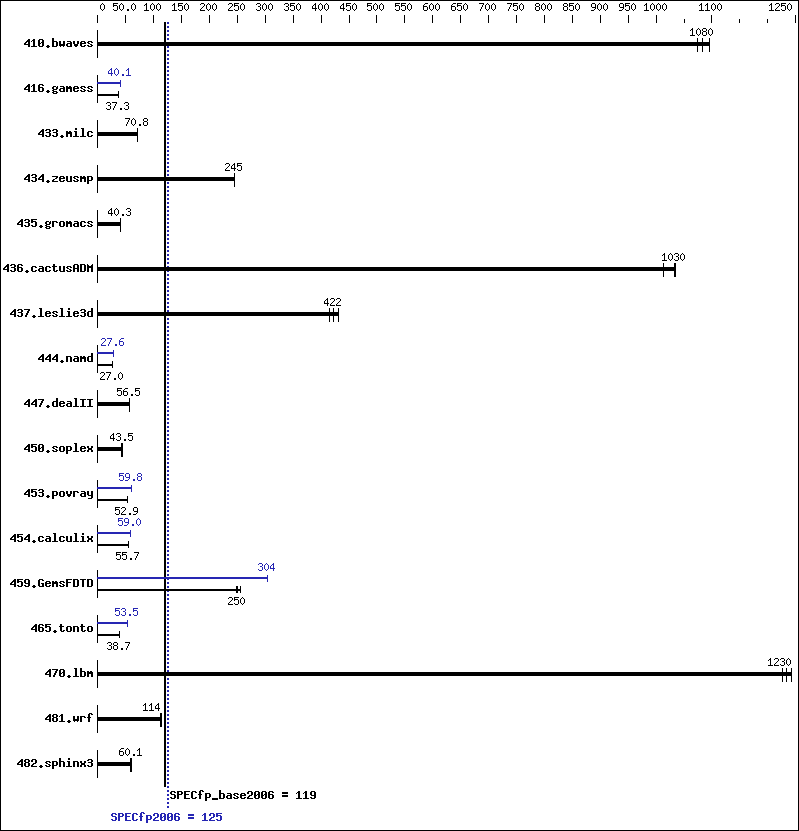

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 12.5 | 1080 | 12.7 | 1070 | 12.4 | 1090 | 12.5 | 1080 | 12.7 | 1070 | 12.4 | 1090 |
416.gamess | 525 | 37.3 | 524 | 37.4 | 525 | 37.3 | 489 | 40.1 | 489 | 40.0 | 489 | 40.1 |
433.milc | 130 | 70.9 | 131 | 70.3 | 130 | 70.8 | 130 | 70.9 | 131 | 70.3 | 130 | 70.8 |
434.zeusmp | 37.1 | 245 | 37.1 | 245 | 37.1 | 245 | 37.1 | 245 | 37.1 | 245 | 37.1 | 245 |
435.gromacs | 177 | 40.3 | 177 | 40.3 | 178 | 40.2 | 177 | 40.3 | 177 | 40.3 | 178 | 40.2 |
436.cactusADM | 11.8 | 1010 | 11.6 | 1030 | 11.6 | 1030 | 11.8 | 1010 | 11.6 | 1030 | 11.6 | 1030 |
437.leslie3d | 21.8 | 431 | 22.7 | 414 | 22.3 | 422 | 21.8 | 431 | 22.7 | 414 | 22.3 | 422 |
444.namd | 297 | 27.0 | 298 | 26.9 | 297 | 27.0 | 290 | 27.6 | 290 | 27.6 | 290 | 27.6 |
447.dealII | 202 | 56.6 | 203 | 56.5 | 203 | 56.4 | 202 | 56.6 | 203 | 56.5 | 203 | 56.4 |
450.soplex | 190 | 43.9 | 193 | 43.2 | 192 | 43.5 | 190 | 43.9 | 193 | 43.2 | 192 | 43.5 |
453.povray | 101 | 52.9 | 101 | 52.9 | 101 | 52.9 | 88.6 | 60.0 | 89.3 | 59.6 | 89.0 | 59.8 |
454.calculix | 148 | 55.7 | 148 | 55.7 | 149 | 55.6 | 140 | 59.1 | 140 | 59.0 | 140 | 58.8 |
459.GemsFDTD | 41.4 | 256 | 42.6 | 249 | 42.5 | 250 | 35.0 | 303 | 34.9 | 304 | 34.9 | 304 |
465.tonto | 249 | 39.6 | 258 | 38.1 | 254 | 38.7 | 184 | 53.4 | 184 | 53.5 | 184 | 53.5 |
470.lbm | 11.1 | 1230 | 11.1 | 1240 | 11.2 | 1230 | 11.1 | 1230 | 11.1 | 1240 | 11.2 | 1230 |
481.wrf | 99.0 | 113 | 98.1 | 114 | 98.3 | 114 | 99.0 | 113 | 98.1 | 114 | 98.3 | 114 |
482.sphinx3 | 328 | 59.5 | 324 | 60.1 | 323 | 60.3 | 328 | 59.5 | 324 | 60.1 | 323 | 60.3 |
Stack size set to unlimited using "ulimit -s unlimited"
BIOS configuration: Choose Operating Mode set to Maximum Performance Hyper-Threading set to Disable Per Core P-state set to Disable LLC dead line alloc set to Disable Sysinfo program /home/cpu2006-1.2-ic17.0/config/sysinfo.rev6993 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1) running on ST550 Thu Aug 24 08:57:32 2017 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Platinum 8153 CPU @ 2.00GHz 2 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 16 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 cache size : 22528 KB From /proc/meminfo MemTotal: 395883768 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 2 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP2" VERSION_ID="12.2" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp2" uname -a: Linux ST550 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016 (9464f67) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 23 18:24 SPEC is set to: /home/cpu2006-1.2-ic17.0 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 btrfs 744G 158G 586G 22% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS Lenovo -[O0E105R-1.00]- 04/27/2017 Memory: 12x Hynix HMA84GR7AFR4N-VK 32 GB 2 rank 2666 MHz (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact" LD_LIBRARY_PATH = "/home/cpu2006-1.2-ic17.0/libs/32:/home/cpu2006-1.2-ic17.0/libs/64:/home/cpu2006-1.2-ic17.0/sh10.2" OMP_NUM_THREADS = "32" Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM memory using Redhat Enterprise Linux 7.2 Transparent Huge Pages enabled by default.
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -qopt-prefetch |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll2 -inline-level=0 -qopt-prefetch -parallel |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -inline-calloc -qopt-malloc-options=3 -auto -unroll4 |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | -xCORE-AVX2 -ipo -O3 -no-prec-div -auto-ilp32 |
481.wrf: | basepeak = yes |
