CPU2006 license: | 3 | Test date: | Dec-2017 |
---|---|---|---|
Test sponsor: | HPE | Hardware Availability: | Nov-2017 |
Tested by: | HPE | Software Availability: | Sep-2017 |
Hardware | |
---|---|
CPU Name: | AMD EPYC 7451 |
CPU Characteristics: | AMD Turbo CORE technology up to 3.20 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 48 cores, 2 chips, 24 cores/chip, 2 threads/core |
CPU(s) orderable: | 1, 2 chip(s) |
Primary Cache: | 64 KB I + 32 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 64 MB I+D on chip per chip, 8 MB shared / 3 cores |
Other Cache: | None |
Memory: | 1 TB (16 x 64 GB 4Rx4 PC4-2666V-L) |
Disk Subsystem: | 1 x 300 GB 15 K RPM SAS, RAID 0 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 12 (x86_64) SP3 Kernel 4.4.73-5-default |
Compiler: | C/C++/Fortran: Version 4.5.2.1 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | xfs |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | Not Applicable |
Other Software: | None |

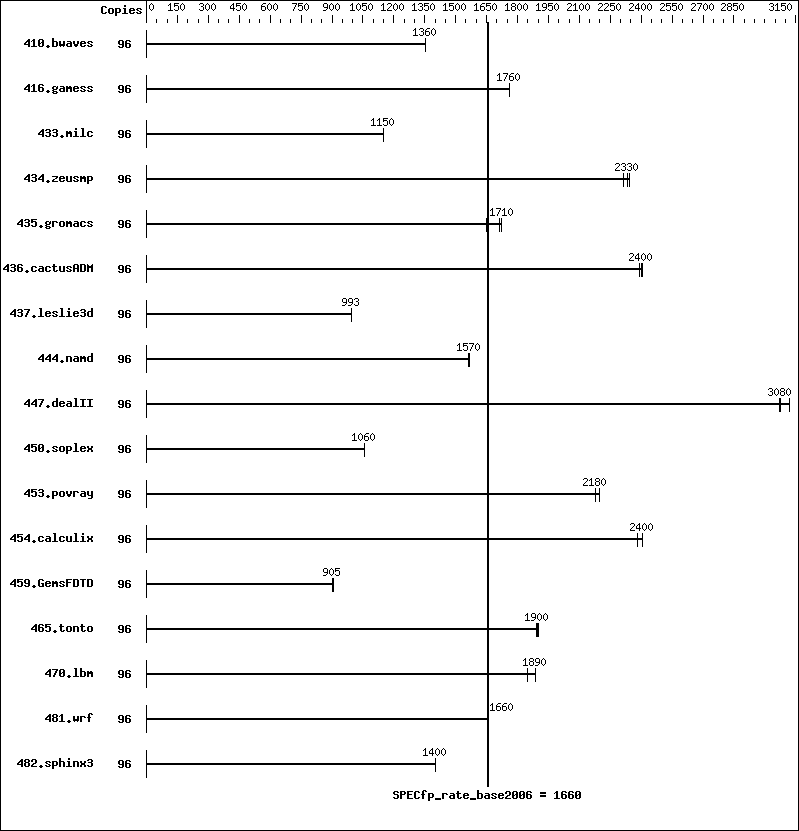

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 96 | 962 | 1360 | 962 | 1360 | 964 | 1350 | |||||||
416.gamess | 96 | 1067 | 1760 | 1066 | 1760 | 1069 | 1760 | |||||||
433.milc | 96 | 767 | 1150 | 768 | 1150 | 768 | 1150 | |||||||
434.zeusmp | 96 | 375 | 2330 | 377 | 2310 | 373 | 2340 | |||||||
435.gromacs | 96 | 400 | 1710 | 398 | 1720 | 415 | 1650 | |||||||
436.cactusADM | 96 | 479 | 2390 | 478 | 2400 | 477 | 2400 | |||||||
437.leslie3d | 96 | 908 | 993 | 908 | 994 | 909 | 993 | |||||||
444.namd | 96 | 491 | 1570 | 493 | 1560 | 491 | 1570 | |||||||
447.dealII | 96 | 357 | 3070 | 357 | 3080 | 352 | 3120 | |||||||
450.soplex | 96 | 757 | 1060 | 758 | 1060 | 758 | 1060 | |||||||
453.povray | 96 | 235 | 2180 | 232 | 2200 | 235 | 2180 | |||||||
454.calculix | 96 | 329 | 2400 | 333 | 2380 | 329 | 2410 | |||||||
459.GemsFDTD | 96 | 1124 | 906 | 1126 | 905 | 1129 | 902 | |||||||
465.tonto | 96 | 497 | 1900 | 498 | 1900 | 500 | 1890 | |||||||
470.lbm | 96 | 700 | 1890 | 713 | 1850 | 699 | 1890 | |||||||
481.wrf | 96 | 647 | 1660 | 647 | 1660 | 647 | 1660 | |||||||
482.sphinx3 | 96 | 1333 | 1400 | 1335 | 1400 | 1334 | 1400 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
Set vm/nr_hugepages=86016 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
BIOS Configuration: Thermal Configuration set to Maximum Cooling Performance Determinism set to Power Deterministic Memory Patrol Scrubbing set to Disabled Workload Profile set to General Throughput Compute Minimum Processor Idle Power Core C-State set to C6 State Processor Power and Utilization Monitoring set to Disabled
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/home/cpu2006/amd1603-rate-libs-revB/32:/home/cpu2006/amd1603-rate-libs-revB/64" The binaries were built with the x86 Open64 Compiler Suite, which is only available from (and supported by) AMD at http://developer.amd.com/tools-and-sdks/cpu-development/x86-open64-compiler-suite/
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -march=bdver1 -mno-fma4 -mno-xop -mno-tbm -WB, -Wl, -z,muldefs |
-Ofast -static -CG:load_exe=0 -OPT:malloc_alg=1 -INLINE:aggressive=on -HP:bd=2m:heap=2m -D__OPEN64_FAST_SET -march=bdver2 -mno-fma4 -mno-xop -mno-tbm -WB, -Wl, -z,muldefs |
-Ofast -LNO:blocking=off -LNO:simd_peel_align=on -OPT:rsqrt=2 -OPT:unroll_size=256 -HP:bd=2m:heap=2m -mso -march=bdver1 -mno-fma4 -mno-xop -mno-tbm -WB, -Wl, -z,muldefs |
