SPECjbb

SPECjbb2000		SPECjbb2000 = 25147 ops/s
IBM Corporation IBM RS/6000 44P-270 (450MHz, 8MB L2)
IBM Corporation J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM)

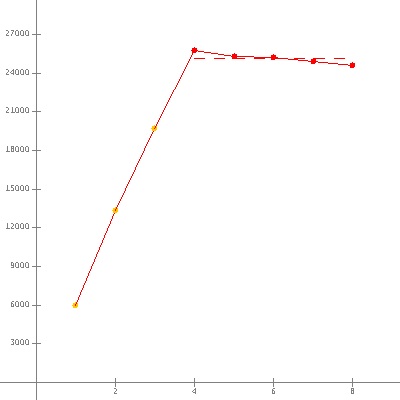

Warehouses	Ops/s	Incl. in metric
1	5973
2	13342
3	19690
4	25771	*
5	25281	*
6	25217	*
7	24887	*
8	24579	*
SPECjbb2000	(from 4 to 8)	25147 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Sep 27, 2001

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM RS/6000 44P-270 (450MHz, 8MB L2)

Processor POWER3-II

MHz 450

# of Procs 4 cores, 4 chips, 1 core/chip

Memory (MB) 4096

Primary cache 32KBI+64KBD on chip

Secondary cache 8MB(I+D) off chip

Other cache

Filesystem JFS

Disks 1x9.1GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM)

JVM Command Line java -ms2558m -mx2558m -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 2558

JVM Maximum Heap Memory (MB) 2558

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /java/caix64dev-20010912/jre/lib/rt.jar:
/java/caix64dev-20010912/jre/lib/i18n.jar:
/java/caix64dev-20010912/jre/classes

OS Version AIX 5L V5.1

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Sep 27, 2001

H/w available Oct-2001

JVM available Dec-2001

OS available Sep-2001

Other s/w available

Tuning

Operating system tunings
SPINLOOPTIME=500

Notes

APAR IY21957: New hardware support for Sep-2001

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	5973	2560	38.9	<0.01%	<0.01	new_order	311662	70.0	.236
						payment	311664	18.9	<0.01
						order_status	31167	2.16	<0.01
						delivery	31167	6.40	<0.01
						stock_level	31167	18.6	<0.01
2	13342	2560	60.9	2.80%	<0.01	new_order	696188	139	.252
						payment	696191	41.4	<0.01
						order_status	69619	5.06	<0.01
						delivery	69620	14.2	<0.01
						stock_level	69621	31.7	.253
3	19690	2560	83.0	2.28%	<0.01	new_order	1027400	207	.278
						payment	1027406	63.3	.278
						order_status	102740	7.64	<0.01
						delivery	102742	21.2	<0.01
						stock_level	102739	47.4	.280
4	25771	2560	104	2.82%	.023	new_order	1344866	277	.308
						payment	1344864	83.8	.302
						order_status	134485	10.9	.296
						delivery	134486	28.9	.307
						stock_level	134487	61.4	.297
5	25281	2560	124	27.2%	<0.01	new_order	1319115	346	.327
						payment	1319110	104	.328
						order_status	131912	13.4	.322
						delivery	131910	35.7	.058
						stock_level	131912	79.4	.638
6	25217	2560	143	29.2%	<0.01	new_order	1315799	417	.556
						payment	1315804	126	.362
						order_status	131581	16.0	.021
						delivery	131580	43.2	.154
						stock_level	131580	90.9	.362
7	24887	2560	163	10.8%	<0.01	new_order	1298549	486	.410
						payment	1298539	149	.395
						order_status	129856	17.8	.021
						delivery	129857	50.1	.349
						stock_level	129858	107	.378
8	24579	2560	182	3.17%	<0.01	new_order	1282479	558	.402
						payment	1282477	169	.390
						order_status	128248	21.2	.320
						delivery	128245	56.8	.060
						stock_level	128250	121	.406
