SPECjbb2005 SPECjbb2005 bops = 39585, SPECjbb2005 bops/JVM = 39585
IBM Corporation IBM eServer xSeries 346
IBM Corporation IBM 32-bit Runtime Environment for Windows, Java 2 Technology Edition, Version 5.0 (build j9vmwi3223-20050912)

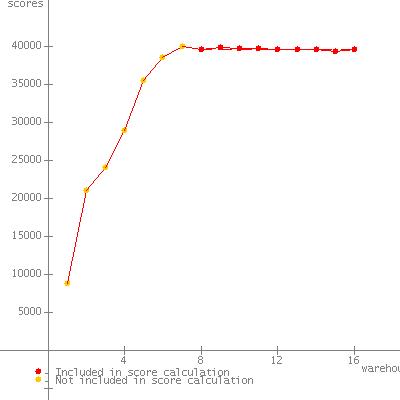

Warehouses SPECjbb2005 bops Incl. in metric
1 8808
2 21068
3 24077
4 28943
5 35527
6 38459
7 40012
8 39605 *
9 39810 *
10 39649 *
11 39639 *
12 39584 *
13 39558 *
14 39576 *
15 39329 *
16 39513 *
SPECjbb2005 (from 8 to 16) 39585 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2005

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM eServer xSeries 346
Processor Dual-Core Intel Xeon 2.8 (800 MHz system bus)
MHz 2800
# of Chips 2
# of Cores 4
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 8
Memory (MB) 8 GB
Memory Details 8 x 1024 MB PC2-3200 ECC Single Rank
Primary cache 12K(I) micro-ops + 16KB(D) (on chip) per core
Secondary cache 2048KB(I+D) (on chip) per core
Other cache
Filesystem NTFS
Disks 1 x 73GB SCSI 15k RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM 32-bit Runtime Environment for Windows, Java 2 Technology Edition, Version 5.0 (build j9vmwi3223-20050912)
JVM Command Line java -ms1500m -mx1500m -Xgcpolicy:gencon -Xmo450m -Xmn1050m -spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1500
JVM Maximum Heap Memory (MB) 1500
JVM Address bits 32
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\ibmjava5\jre\lib\vm.jar;
c:\ibmjava5\jre\lib\core.jar;
c:\ibmjava5\jre\lib\charsets.jar;
c:\ibmjava5\jre\lib\graphics.jar;
c:\ibmjava5\jre\lib\security.jar;
c:\ibmjava5\jre\lib\ibmpkcs.jar;
c:\ibmjava5\jre\lib\ibmorb.jar;
c:\ibmjava5\jre\lib\ibmcfw.jar;
c:\ibmjava5\jre\lib\ibmorbapi.jar;
c:\ibmjava5\jre\lib\ibmjcefw.jar;
c:\ibmjava5\jre\lib\ibmjgssprovider.jar;
c:\ibmjava5\jre\lib\ibmjsseprovider2.jar;
c:\ibmjava5\jre\lib\ibmjaaslm.jar;
c:\ibmjava5\jre\lib\ibmjaasactivelm.jar;
c:\ibmjava5\jre\lib\ibmcertpathprovider.jar;
c:\ibmjava5\jre\lib\server.jar;
c:\ibmjava5\jre\lib\xml.jar
OS Version Windows Server 2003 Standard Edition (32-bit)
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location RTP, NC
Test date Sep 26, 2005
H/w available Oct-2005
JVM available Jan-2006
OS available May-2000
Other s/w available
AOT Compilation

Tuning

Notes


Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 8808 1500 544 <0.01% <0.01 new_order 116119 8.89 .078
payment 80070 4.36 .094
order_status 8007 .595 .016
delivery 8007 8.18 .016
stock_level 8007 1.13 .016
cust_report 44022 5.83 .078
2 21068 1500 296 .207% <0.01 new_order 277783 18.6 .140
payment 191529 7.37 .125
order_status 19152 1.23 .016
delivery 19153 19.5 .140
stock_level 19154 2.05 .125
cust_report 105274 10.0 .125
3 24077 1500 808 17.6% <0.01 new_order 317419 26.4 .172
payment 218880 10.9 .187
order_status 21890 2.10 .125
delivery 21887 29.9 .187
stock_level 21887 3.05 .016
cust_report 120340 15.7 .125
4 28943 1500 746 23.0% <0.01 new_order 381526 35.9 .140
payment 263118 13.2 .125
order_status 26311 2.10 .110
delivery 26310 42.1 .140
stock_level 26312 3.91 .016
cust_report 144709 20.7 .140
5 35527 1500 630 22.1% <0.01 new_order 468606 43.2 .141
payment 323137 16.6 .141
order_status 32314 2.79 .016
delivery 32313 53.6 .141
stock_level 32314 5.81 .125
cust_report 177672 25.3 .125
6 38459 1500 289 19.1% <0.01 new_order 507144 50.9 .125
payment 349626 20.1 .140
order_status 34962 3.12 .140
delivery 34961 67.2 .140
stock_level 34963 5.25 .016
cust_report 192107 29.8 .140
7 40012 1500 1171 11.7% <0.01 new_order 527649 57.0 .141
payment 363747 22.2 .157
order_status 36372 3.94 .094
delivery 36374 79.1 .157
stock_level 36373 6.71 .157
cust_report 199839 37.0 .157
8 39605 1500 1015 .832% <0.01 new_order 4177342 520 .141
payment 2880364 198 .141
order_status 288035 32.3 .125
delivery 288033 749 .156
stock_level 288036 59.6 .141
cust_report 1583381 329 .141
9 39810 1500 449 15.0% <0.01 new_order 4198156 569 .282
payment 2895248 227 .360
order_status 289524 35.6 .234
delivery 289524 843 .375
stock_level 289524 68.9 .235
cust_report 1592340 379 .282
10 39649 1500 747 17.2% <0.01 new_order 4180073 641 .485
payment 2883525 249 .391
order_status 288354 39.2 .250
delivery 288351 941 .391
stock_level 288355 71.2 .375
cust_report 1586992 418 .391
11 39639 1500 1313 32.6% <0.01 new_order 4180546 706 .484
payment 2882863 280 .484
order_status 288288 41.9 .329
delivery 288290 1037 .484
stock_level 288286 82.2 .469
cust_report 1585197 451 .422
12 39584 1500 1084 17.2% <0.01 new_order 4174126 786 .563
payment 2878850 305 .485
order_status 287886 48.7 .547
delivery 287886 1117 .672
stock_level 287886 91.8 .391
cust_report 1583597 486 .563
13 39558 1500 983 22.7% <0.01 new_order 4171938 849 .750
payment 2876915 320 .735
order_status 287690 53.8 .547
delivery 287697 1217 .750
stock_level 287692 98.3 .562
cust_report 1581899 531 .843
14 39576 1500 1011 29.1% <0.01 new_order 4174073 912 .985
payment 2878279 366 1.06
order_status 287829 59.7 .687
delivery 287828 1277 .828
stock_level 287829 108 .922
cust_report 1582474 582 .921
15 39329 1500 824 16.0% .020 new_order 4148442 967 1.42
payment 2860832 389 1.44
order_status 286085 64.3 .547
delivery 286080 1398 1.84
stock_level 286079 112 .843
cust_report 1573206 611 1.25
16 39513 1500 1323 22.6% .241 new_order 4176900 1049 .906
payment 2880601 403 1.22
order_status 288060 63.8 .734
delivery 288058 1482 1.13
stock_level 288059 135 .719
cust_report 1584310 657 .906

SPECjbb2005 Version: [SPECjbb2005 1.05, July 6, 2005]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 26-Oct-2005
