SPECjbb2005 SPECjbb2005 bops = 471030, SPECjbb2005 bops/JVM = 58879
SGI Altix 4700 (8 Blade/16P DC)
BEA Systems BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64)

JVM run JVM Scores
159095
259171
358662
458723
558398
658949
758978
859054
SPECjbb2005 bops = 471030, SPECjbb2005 bops/JVM = 58879

Hardware
Hardware Vendor SGI
Vendor URL http://www.sgi.com
Model Altix 4700 (8 Blade/16P DC)
Processor Intel DC Itanium2 Processor 9050 1.6 Ghz
MHz 1600
# of Chips 16
# of Cores 32
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 32
Memory (MB) 65536
Memory Details 1GB ECC DDR2 DIMMs (PC2-3200R) spread uniformly over 8 compute blades
Primary cache 16KBI + 16KBD on chip per core
Secondary cache 1024kB(I) + 256kB(D) on chip per core
Other cache 12MB (I+D) on chip per core
Filesystem xfs
Disks 1 x 146 GB SCSI (classes + OS)
Other hardware
Software
Software Vendor BEA Systems
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64)
JVM Command Line numactl --cpunodebind=$node --localalloc java -Xms3840m -Xmx3840m -XXaggressive -XXcompressedRefs -XXthroughputCompaction -XXlazyUnlocking -XXtlasize256k -XXgcthreads8 -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id
JVM Initial Heap Memory (MB) 3840
JVM Maximum Heap Memory (MB) 3840
JVM Address bits 64
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/ia64/jrockit/jrockit.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/ia64/jrockit/managementapi.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/managementapi.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/rt.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/i18n.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/sunrsasign.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/jsse.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/jce.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/charsets.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/classes
OS Version SuSE Linux Enterprise Server 9 SP3 (2.6.5-7.252.PTF-sn2)
Other software
Test Information
Tested by SGI
SPEC license # 4
Test location Mountain View, CA
Test date Jun 18, 2006
H/w available July-2006
JVM available Jun-2006
OS available June-2006
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • mount -t hugetlbfs nodev /mnt/hugepages
  • echo 160 > /proc/sys/vm/nr_hugepages
Notes
Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (4 cores).

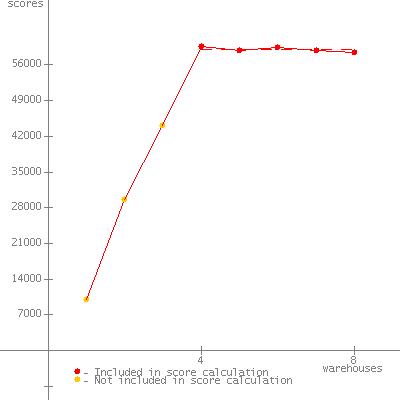

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10270
2 29640
3 43483
4 60125 *
5 59041 *
6 59789 *
7 58615 *
8 57906 *
SPECjbb2005 (from 4 to 8) 59095 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10470
2 29648
3 43891
4 59688 *
5 59087 *
6 59813 *
7 58947 *
8 58320 *
SPECjbb2005 (from 4 to 8) 59171 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10597
2 29378
3 44106
4 59110 *
5 58756 *
6 59286 *
7 58556 *
8 57603 *
SPECjbb2005 (from 4 to 8) 58662 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10594
2 29679
3 44057
4 59020 *
5 58696 *
6 59220 *
7 58725 *
8 57954 *
SPECjbb2005 (from 4 to 8) 58723 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10497
2 29441
3 43221
4 58696 *
5 58319 *
6 59050 *
7 58541 *
8 57385 *
SPECjbb2005 (from 4 to 8) 58398 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10487
2 29136
3 44061
4 59261 *
5 59152 *
6 59451 *
7 58742 *
8 58142 *
SPECjbb2005 (from 4 to 8) 58949 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10825
2 29792
3 44145
4 59418 *
5 58738 *
6 59381 *
7 59086 *
8 58268 *
SPECjbb2005 (from 4 to 8) 58978 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10003
2 29552
3 44110
4 59661 *
5 58868 *
6 59463 *
7 58910 *
8 58366 *
SPECjbb2005 (from 4 to 8) 59054 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 18-Jul-2006
