SPECjbb2005 SPECjbb2005 bops = 942831, SPECjbb2005 bops/JVM = 58927
SGI Altix 4700 (16 Blade/32P DC)
BEA Systems BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64)

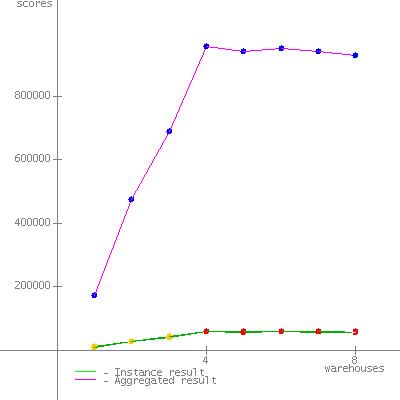

JVM run JVM Scores
158574
259133
358747
458438
558903
658673
759245
858688
959248
1059238
1158421
1259429
1359280
1458844
1559097
1658873
SPECjbb2005 bops = 942831, SPECjbb2005 bops/JVM = 58927

Hardware
Hardware Vendor SGI
Vendor URL http://www.sgi.com
Model Altix 4700 (16 Blade/32P DC)
Processor Intel DC Itanium2 Processor 9050 1.6 Ghz
MHz 1600
# of Chips 32
# of Cores 64
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 1GB ECC DDR2 DIMMs (PC2-3200R) spread uniformly over 16 compute blades
Primary cache 16KBI + 16KBD on chip per core
Secondary cache 1024kB(I) + 256kB(D) on chip per core
Other cache 12MB (I+D) on chip per core
Filesystem xfs
Disks 1 x 146 GB SCSI (classes + OS)
Other hardware
Software
Software Vendor BEA Systems
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64)
JVM Command Line numactl --cpunodebind=$node --localalloc java -Xms3840m -Xmx3840m -XXaggressive -XXcompressedRefs -XXthroughputCompaction -XXlazyUnlocking -XXtlasize256k -XXgcthreads8 -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id
JVM Initial Heap Memory (MB) 3840
JVM Maximum Heap Memory (MB) 3840
JVM Address bits 64
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/ia64/jrockit/jrockit.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/ia64/jrockit/managementapi.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/managementapi.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/rt.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/i18n.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/sunrsasign.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/jsse.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/jce.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/charsets.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/classes
OS Version SuSE Linux Enterprise Server 9 SP3 (2.6.5-7.252.PTF-sn2)
Other software
Test Information
Tested by SGI
SPEC license # 4
Test location Mountain View, CA
Test date Jun 18, 2006
H/w available July-2006
JVM available Jun-2006
OS available June-2006
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • mount -t hugetlbfs nodev /mnt/hugepages
  • echo 320 > /proc/sys/vm/nr_hugepages
Notes
Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (4 cores).

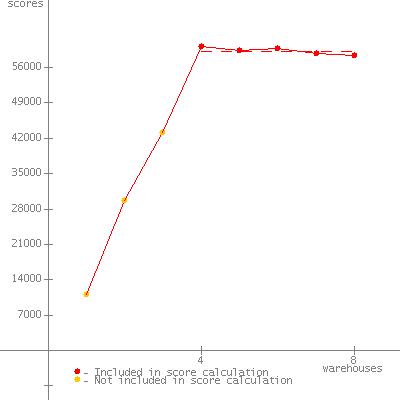

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10630
2 29583
3 42727
4 59429 *
5 58209 *
6 59351 *
7 58505 *
8 57376 *
SPECjbb2005 (from 4 to 8) 58574 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11413
2 29701
3 42875
4 59998 *
5 59328 *
6 59528 *
7 58720 *
8 58089 *
SPECjbb2005 (from 4 to 8) 59133 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11107
2 29599
3 43028
4 59411 *
5 58556 *
6 59197 *
7 58690 *
8 57881 *
SPECjbb2005 (from 4 to 8) 58747 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10805
2 29659
3 42602
4 59321 *
5 58358 *
6 58970 *
7 58288 *
8 57251 *
SPECjbb2005 (from 4 to 8) 58438 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11043
2 29704
3 42951
4 59967 *
5 58694 *
6 59176 *
7 58755 *
8 57922 *
SPECjbb2005 (from 4 to 8) 58903 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10770
2 29377
3 43010
4 59291 *
5 58564 *
6 59199 *
7 58641 *
8 57671 *
SPECjbb2005 (from 4 to 8) 58673 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11040
2 29654
3 43113
4 60217 *
5 59314 *
6 59676 *
7 58719 *
8 58301 *
SPECjbb2005 (from 4 to 8) 59245 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10805
2 29569
3 42752
4 59571 *
5 58476 *
6 59021 *
7 58713 *
8 57659 *
SPECjbb2005 (from 4 to 8) 58688 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11318
2 29811
3 43065
4 60156 *
5 59187 *
6 59606 *
7 58772 *
8 58520 *
SPECjbb2005 (from 4 to 8) 59248 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10554
2 29797
3 43531
4 60222 *
5 59169 *
6 59558 *
7 58994 *
8 58248 *
SPECjbb2005 (from 4 to 8) 59238 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10673
2 29352
3 43024
4 59340 *
5 58200 *
6 58657 *
7 58373 *
8 57534 *
SPECjbb2005 (from 4 to 8) 58421 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11202
2 29804
3 43225
4 60212 *
5 59299 *
6 59964 *
7 59255 *
8 58417 *
SPECjbb2005 (from 4 to 8) 59429 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10154
2 29926
3 43141
4 60222 *
5 59248 *
6 59703 *
7 59139 *
8 58087 *
SPECjbb2005 (from 4 to 8) 59280 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10478
2 29543
3 43777
4 59629 *
5 58938 *
6 59257 *
7 58492 *
8 57903 *
SPECjbb2005 (from 4 to 8) 58844 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11274
2 29579
3 43877
4 59742 *
5 58840 *
6 59694 *
7 59075 *
8 58137 *
SPECjbb2005 (from 4 to 8) 59097 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10596
2 29710
3 43017
4 59940 *
5 58513 *
6 59398 *
7 58563 *
8 57950 *
SPECjbb2005 (from 4 to 8) 58873 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Jun 18, 2006

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 18-Jul-2006
