SPECjbb

SPECjbb2005		SPECjbb2005 bops = 40652, SPECjbb2005 bops/JVM = 40652
Dell PowerEdge 6950 (AMD Opteron (TM) 8220SE)
Bea Systems, Inc BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

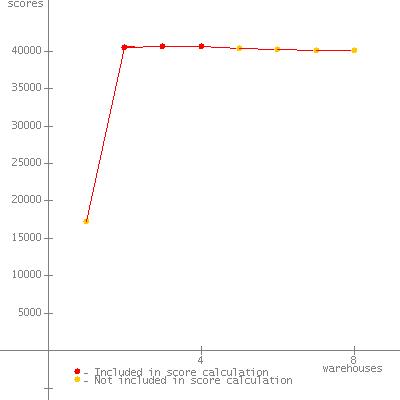

Warehouses	SPECjbb2005 bops	Incl. in metric
1	17274
2	40579	*
3	40680	*
4	40696	*
5	40344
6	40294
7	40146
8	40110
SPECjbb2005	(from 2 to 4)	40652 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell

Test date: Jan 10, 2007

Hardware

Hardware Vendor Dell

Vendor URL http://www.dell.com/

Model PowerEdge 6950 (AMD Opteron (TM) 8220SE)

Processor AMD Opteron (TM) 8220SE

MHz 2800

# of Chips 4

# of Cores 8

# of Cores/Chip 2

HW Threading Enabled? N/A

Procs Avail to Java 8

Memory (MB) 32768

Memory Details 16 x 2 GB PC2-5300P CL5.0

Primary cache 64 KB I + 64 KB D on chip per core

Secondary cache 1 MB I+D on chip per core

Other cache N/A

Filesystem NTFS

Disks 1 x 73GB 15K SAS

Other hardware N/A

Software

Software Vendor Bea Systems, Inc

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

JVM Command Line start /AFFINITY %CPUs% /b java -Xms:3700m -Xmx:3700m -XXaggressive -XXlargePages -XXlazyUnlocking -Xgc:genpar -Xns:3200m -XXgcthreads=2 -XXtlasize:min=16k,preferred=64k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jrockit1.5.0.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jmxmapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\rmp.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\rt.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\i18n.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jsse.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jce.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\charsets.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software N/A

Test Information

Tested by Dell

SPEC license # 55

Test location Round Rock, TX

Test date Jan 10, 2007

H/w available Dec-2006

JVM available Feb-2007

OS available May-2005

Other s/w available N/A

AOT Compilation

N/A

Tuning

Each JVM instance was affinitized to a socket.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

Command line options are described at:
http://edocs.bea.com/jrockit/jrdocs/refman/intro.html

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	17274	3700	2544	<0.01%	<0.01	new_order	227606	9.09	.016
						payment	157034	3.87	.016
						order_status	15703	.768	.016
						delivery	15703	8.68	.016
						stock_level	15703	1.45	.375
						cust_report	86461	5.60	.016
2	40579	3700	1378	1.63%	<0.01	new_order	4279572	134	.156
						payment	2951234	55.2	.219
						order_status	295123	6.98	.031
						delivery	295123	169	.141
						stock_level	295122	16.4	.047
						cust_report	1622894	89.2	.328
3	40680	3700	3015	50.4%	<0.01	new_order	4290264	201	.766
						payment	2958535	88.3	.938
						order_status	295854	11.8	.453
						delivery	295856	248	.938
						stock_level	295854	22.9	.406
						cust_report	1626808	131	.579
4	40696	3700	2287	27.2%	<0.01	new_order	4291450	269	.953
						payment	2959709	119	1.50
						order_status	295972	17.2	.766
						delivery	295970	330	12.3
						stock_level	295972	34.1	.766
						cust_report	1627964	176	.766
5	40344	3700	3324	26.8%	<0.01	new_order	4253715	336	.812
						payment	2934134	154	.829
						order_status	293415	19.4	1.00
						delivery	293416	405	5.11
						stock_level	293413	28.4	.578
						cust_report	1614561	234	4.31
6	40294	3700	1893	11.5%	<0.01	new_order	4248302	400	1.14
						payment	2930479	198	1.50
						order_status	293046	26.6	2.92
						delivery	293047	478	1.08
						stock_level	293046	46.1	.687
						cust_report	1612647	261	4.92
7	40146	3700	2626	24.9%	<0.01	new_order	4233823	489	1.34
						payment	2919910	243	2.59
						order_status	291988	25.9	.781
						delivery	291990	535	9.30
						stock_level	291993	65.3	1.86
						cust_report	1606008	291	2.14
8	40110	3700	3413	19.4%	.026	new_order	4230883	543	1.34
						payment	2917847	290	2.44
						order_status	291786	35.0	.985
						delivery	291783	601	2.55
						stock_level	291785	55.0	1.11
						cust_report	1604801	365	12.0
