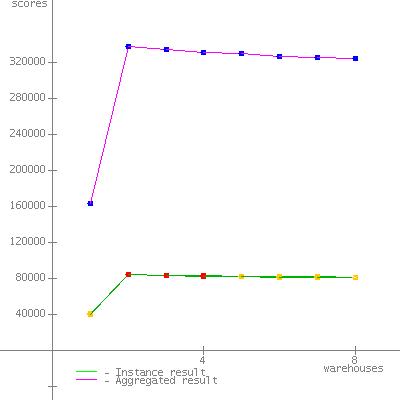

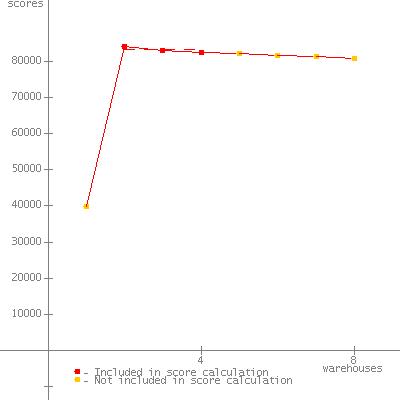

JVM run JVM Scores 1 83931 2 83633 3 83995 4 83243 SPECjbb2005 bops = 334802, SPECjbb2005 bops/JVM = 83701

Hardware Hardware Vendor IBM Corporation Vendor URL http://www.ibm.com Model IBM System x3650 Processor Intel Xeon X5470 MHz 3333 # of Chips 2 # of Cores 8 # of Cores/Chip 4 HW Threading Enabled? No Procs Avail to Java 8 Memory (MB) 16384 Memory Details 8 x 2GB PC2-5300F Primary cache 32 KB I + 32 KB D Secondary cache 12MB(I+D) on chip, 6MB per core pair Other cache None Filesystem NTFS Disks 1 x 36GB SAS Other hardware None

Software Software Vendor IBM Corporation Vendor URL http://www.ibm.com JVM Version IBM J9 2.4 JRE 1.6.0 (build pwi3260sr3-20080924_03) JVM Command Line start /AFFINITY %HEX% java -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa -XtlhPrefetch JVM Initial Heap Memory (MB) 1475 JVM Maximum Heap Memory (MB) 1475 JVM Address bits 32 JVM CLASSPATH .\jbb.jar; .\check.jar; JVM BOOTCLASSPATH C:\Program Files\IBM\Java60\jre\lib\vm.jar; C:\Program Files\IBM\Java60\jre\lib\annotation.jar; C:\Program Files\IBM\Java60\jre\lib\beans.jar; C:\Program Files\IBM\Java60\jre\lib\java.util.jar; C:\Program Files\IBM\Java60\jre\lib\jndi.jar; C:\Program Files\IBM\Java60\jre\lib\logging.jar; C:\Program Files\IBM\Java60\jre\lib\security.jar; C:\Program Files\IBM\Java60\jre\lib\sql.jar; C:\Program Files\IBM\Java60\jre\lib\ibmorb.jar; C:\Program Files\IBM\Java60\jre\lib\ibmorbapi.jar; C:\Program Files\IBM\Java60\jre\lib\ibmcfw.jar; C:\Program Files\IBM\Java60\jre\lib\rt.jar; C:\Program Files\IBM\Java60\jre\lib\charsets.jar; C:\Program Files\IBM\Java60\jre\lib\resources.jar; C:\Program Files\IBM\Java60\jre\lib\ibmpkcs.jar; C:\Program Files\IBM\Java60\jre\lib\ibmcertpathfw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjgssfw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjssefw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmsaslfw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjcefw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjgssprovider.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjsseprovider2.jar; C:\Program Files\IBM\Java60\jre\lib\ibmcertpathprovider.jar; C:\Program Files\IBM\Java60\jre\lib\ibmxmlcrypto.jar; C:\Program Files\IBM\Java60\jre\lib\management-agent.jar; C:\Program Files\IBM\Java60\jre\lib\xml.jar; C:\Program Files\IBM\Java60\jre\lib\jlm.jar; C:\Program Files\IBM\Java60\jre\lib\javascript.jar OS Version Windows Server 2003 Enterprise Edition SP2 (32bit) Other software None

Test Information Tested by IBM Corporation SPEC license # 11 Test location RTP, NC Test date Oct 22, 2008 H/w available Nov-2008 JVM available Nov-2008 OS available Mar-2007 Other s/w available

AOT Compilation   Tuning Affinity Masks set to 0x03, 0x0C, 0x30, 0xC0 Hardware Prefetch and Adjacent Sector Prefetch disabled Lock Pages in memory enabled under Local Security Policies Notes
