SPECjbb2005 SPECjbb2005 bops = 609521, SPECjbb2005 bops/JVM = 152380
Huawei Technologies Co., Ltd. Tecal RH2285
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
1151989
2150713
3154332
4152487
SPECjbb2005 bops = 609521, SPECjbb2005 bops/JVM = 152380

Hardware
Hardware Vendor Huawei Technologies Co., Ltd.
Vendor URL http://www.huawei.com
Model Tecal RH2285
Processor Intel Xeon processor X5570 (Intel Turbo Boost Technology up to 3.33 GHz)
MHz 2930
# of Chips 2
# of Cores 8
# of Cores/Chip 4
HW Threading Enabled? Yes
Procs Avail to Java 16
Memory (MB) 24576
Memory Details 6x4GB DDR3 1333 CL9
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB per core
Other cache 8MB shared per 4 cores
Filesystem NTFS
Disks 1 x 80GB SSD SATA
Other hardware none
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /affinity [000F, 00F0, 0F00, F000] Java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Initial Heap Memory (MB) 1600
JVM Maximum Heap Memory (MB) 1600
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\J9\bin\compressedrefs\jclSC160\vm.jar;
C:\J9\lib\annotation.jar;
C:\J9\lib\beans.jar;
C:\J9\lib\java.util.jar;
C:\J9\lib\jndi.jar;
C:\J9\lib\logging.jar;
C:\J9\lib\security.jar;
C:\J9\lib\sql.jar;
C:\J9\lib\ibmorb.jar;
C:\J9\lib\ibmorbapi.jar;
C:\J9\lib\ibmcfw.jar;
C:\J9\lib\rt.jar;
C:\J9\lib\charsets.jar;
C:\J9\lib\resources.jar;
C:\J9\lib\ibmpkcs.jar;
C:\J9\lib\ibmcertpathfw.jar;
C:\J9\lib\ibmjgssfw.jar;
C:\J9\lib\ibmjssefw.jar;
C:\J9\lib\ibmsaslfw.jar;
C:\J9\lib\ibmjcefw.jar;
C:\J9\lib\ibmjgssprovider.jar;
C:\J9\lib\ibmjsseprovider2.jar;
C:\J9\lib\ibmcertpathprovider.jar;
C:\J9\lib\ibmxmlcrypto.jar;
C:\J9\lib\management-agent.jar;
C:\J9\lib\xml.jar;
C:\J9\lib\jlm.jar;
C:\J9\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition + SP1 (64-bit)
Other software none
Test Information
Tested by Huawei
SPEC license # 3175
Test location Shenzhen, PRC
Test date Dec 15, 2009
H/w available Aug-2009
JVM available Jul-2009
OS available May-2008
Other s/w available n/a
AOT Compilation

Tuning
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes

BIOS Configuration
  • HW Prefetcher Disabled
  • Cache Line Prefetcher Disabled

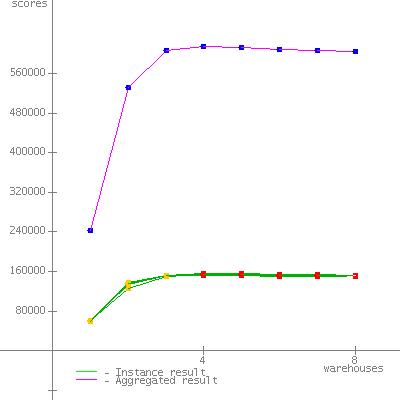

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 61850
2 124770
3 149611
4 152946 *
5 152395 *
6 151609 *
7 151455 *
8 151543 *
SPECjbb2005 (from 4 to 8) 151989 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Dec 15, 2009


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60616
2 134224
3 151210
4 152026 *
5 151724 *
6 150772 *
7 149499 *
8 149543 *
SPECjbb2005 (from 4 to 8) 150713 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Dec 15, 2009


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60651
2 137954
3 152304
4 156387 *
5 155083 *
6 154022 *
7 153334 *
8 152833 *
SPECjbb2005 (from 4 to 8) 154332 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Dec 15, 2009


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58738
2 135125
3 152581
4 154113 *
5 153296 *
6 152457 *
7 151579 *
8 150991 *
SPECjbb2005 (from 4 to 8) 152487 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Dec 15, 2009

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Jan-2010
