SPECjbb2005 SPECjbb2005 bops = 879266, SPECjbb2005 bops/JVM = 146544
IBM Corporation IBM System x iDataPlex dx360 M3
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

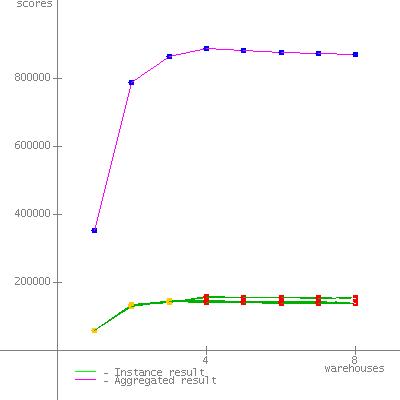

JVM run JVM Scores
1141868
2156825
3144420
4155423
5140592
6140138
SPECjbb2005 bops = 879266, SPECjbb2005 bops/JVM = 146544

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x iDataPlex dx360 M3
Processor Intel Xeon X5670 2.93GHz (Intel Turbo Boost Technology up to 3.33 GHz)
MHz 2930
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 24576
Memory Details 12x2GB 2RX8 PC3L-10600R; slots 2, 3, 5, 6, 7, 8, 10, 11, 13, 14, 15, and 16 populated
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 12 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 50 GB SATA SSD, feature code 5197
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java60_0529\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\IBM\Java60_0529\jre\lib\annotation.jar;
C:\IBM\Java60_0529\jre\lib\beans.jar;
C:\IBM\Java60_0529\jre\lib\java.util.jar;
C:\IBM\Java60_0529\jre\lib\jndi.jar;
C:\IBM\Java60_0529\jre\lib\logging.jar;
C:\IBM\Java60_0529\jre\lib\security.jar;
C:\IBM\Java60_0529\jre\lib\sql.jar;
C:\IBM\Java60_0529\jre\lib\ibmorb.jar;
C:\IBM\Java60_0529\jre\lib\ibmorbapi.jar;
C:\IBM\Java60_0529\jre\lib\ibmcfw.jar;
C:\IBM\Java60_0529\jre\lib\rt.jar;
C:\IBM\Java60_0529\jre\lib\charsets.jar;
C:\IBM\Java60_0529\jre\lib\resources.jar;
C:\IBM\Java60_0529\jre\lib\ibmpkcs.jar;
C:\IBM\Java60_0529\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java60_0529\jre\lib\ibmjgssfw.jar;
C:\IBM\Java60_0529\jre\lib\ibmjssefw.jar;
C:\IBM\Java60_0529\jre\lib\ibmsaslfw.jar;
C:\IBM\Java60_0529\jre\lib\ibmjcefw.jar;
C:\IBM\Java60_0529\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java60_0529\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java60_0529\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java60_0529\jre\lib\ibmxmlcrypto.jar;
C:\IBM\Java60_0529\jre\lib\management-agent.jar;
C:\IBM\Java60_0529\jre\lib\xml.jar;
C:\IBM\Java60_0529\jre\lib\jlm.jar;
C:\IBM\Java60_0529\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Data Center 64-bit/R2
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Mar 23, 2010
H/w available Jun-2010
JVM available Jun 2009
OS available Oct-2009
Other s/w available Mar-2010
AOT Compilation

Tuning
  • Affinity Masks set to 0xf, 0x70, 0x700, 0xf000, 0x70000, 0x700000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Power Options: High Performance
  • BIOS Settings
    • Turbo Mode: Enable
    • Turbo Boost Power Optimization: Traditional
    • CPU C-States: Enable
    • Processor Data Prefetch: Disable
    • Data Reuse Optimization: Disabled
    • LV-DIMM Power: Enhanced Performance
    • Demand Scrub: Disable
    • Thermal Mode: Performance
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58728
2 134521
3 144886
4 144453 *
5 142136 *
6 141444 *
7 141225 *
8 140083 *
SPECjbb2005 (from 4 to 8) 141868 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

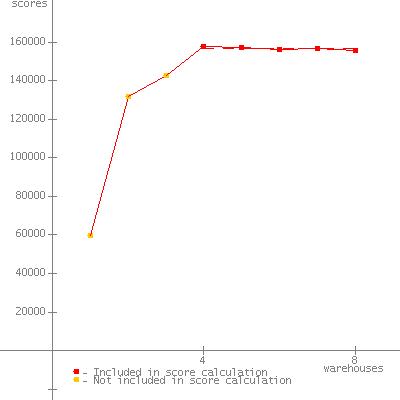

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59731
2 131952
3 142615
4 157983 *
5 157197 *
6 156202 *
7 156942 *
8 155802 *
SPECjbb2005 (from 4 to 8) 156825 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

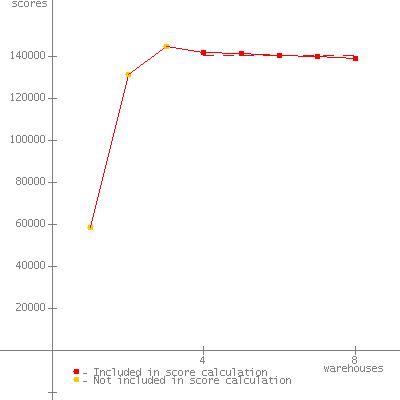

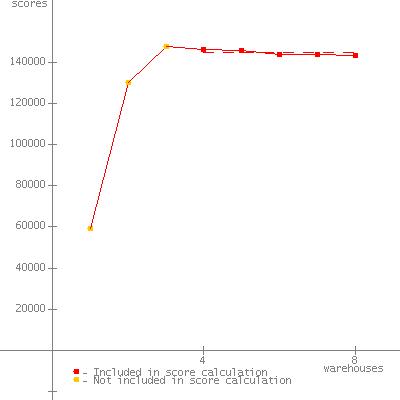

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59349
2 130248
3 147684
4 146245 *
5 145350 *
6 143759 *
7 143759 *
8 142985 *
SPECjbb2005 (from 4 to 8) 144420 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

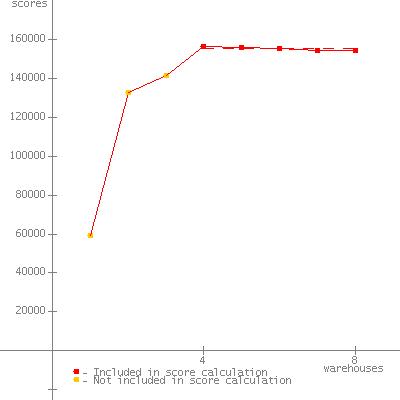

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59374
2 133095
3 141418
4 156716 *
5 156148 *
6 155330 *
7 154486 *
8 154434 *
SPECjbb2005 (from 4 to 8) 155423 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58388
2 131494
3 144962
4 141725 *
5 141442 *
6 140312 *
7 140264 *
8 139217 *
SPECjbb2005 (from 4 to 8) 140592 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

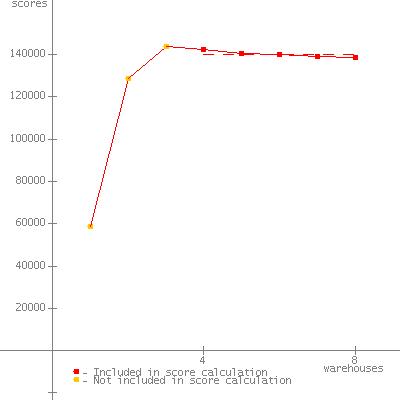

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58707
2 128652
3 143961
4 142507 *
5 140407 *
6 140096 *
7 139086 *
8 138593 *
SPECjbb2005 (from 4 to 8) 140138 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
