SPECjbb2005 SPECjbb2005 bops = 1683913, SPECjbb2005 bops/JVM = 105245
IBM Corporation IBM BladeCenter HX5
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

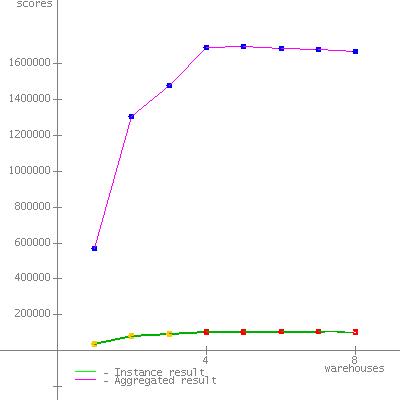

JVM run JVM Scores
1106542
2106823
3104875
4103307
5103674
6107192
7103347
8107367
9105821
10105358
11102897
12106358
13104173
14106434
15105429
16104316
SPECjbb2005 bops = 1683913, SPECjbb2005 bops/JVM = 105245

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM BladeCenter HX5
Processor Intel Xeon L7555 (Intel Turbo Boost Technology up to 2.53 GHz)
MHz 1866
# of Chips 4
# of Cores 32
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 262144
Memory Details 32 x 8 GB 4Rx8 PC3-8500R, all slots populated
Primary cache 32KB I + 32KB D on chip per core
Secondary cache 256KB (I+D) on chip per core
Other cache 24MB (I+D) on chip per chip
Filesystem NTFS
Disks 1 x 50GB SATA SSD
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\IBM\Java60\jre\lib\annotation.jar;
C:\Program Files\IBM\Java60\jre\lib\beans.jar;
C:\Program Files\IBM\Java60\jre\lib\java.util.jar;
C:\Program Files\IBM\Java60\jre\lib\jndi.jar;
C:\Program Files\IBM\Java60\jre\lib\logging.jar;
C:\Program Files\IBM\Java60\jre\lib\security.jar;
C:\Program Files\IBM\Java60\jre\lib\sql.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorb.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorbapi.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcfw.jar;
C:\Program Files\IBM\Java60\jre\lib\rt.jar;
C:\Program Files\IBM\Java60\jre\lib\charsets.jar;
C:\Program Files\IBM\Java60\jre\lib\resources.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmpkcs.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjssefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmsaslfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjcefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\IBM\Java60\jre\lib\management-agent.jar;
C:\Program Files\IBM\Java60\jre\lib\xml.jar;
C:\Program Files\IBM\Java60\jre\lib\jlm.jar;
C:\Program Files\IBM\Java60\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise x64
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location RTP, NC
Test date Apr 22, 2010
H/w available Jun-2010
JVM available Jun-2009
OS available Oct-2009
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • Affinity Masks set to 0x000000000000000f, 0x00000000000000f0, 0x0000000000000f00, 0x000000000000f000, 0x00000000000f0000, 0x0000000000f00000, 0x000000000f000000, 0x00000000f0000000, 0x0000000f00000000, 0x000000f000000000, 0x00000f0000000000, 0x0000f00000000000, 0x000f000000000000, 0x00f0000000000000, 0x0f00000000000000, 0xf000000000000000
  • Lock Pages in memory enabled under Local Security Policies
  • BIOS Settings
  • Operating Mode set to Custom Mode
  • Turbo Boost Power set to Traditional
    Notes

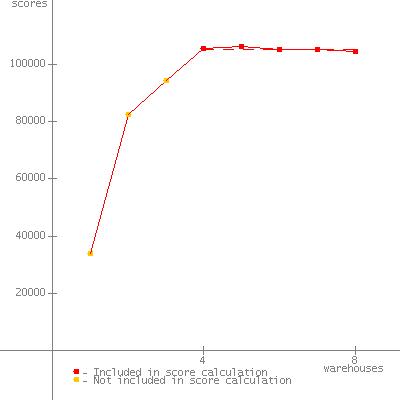

    JVM 1 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 34930
    2 81232
    3 95648
    4 106951 *
    5 107517 *
    6 106855 *
    7 106118 *
    8 105271 *
    SPECjbb2005 (from 4 to 8) 106542 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 2 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 33723
    2 81208
    3 92754
    4 108177 *
    5 107370 *
    6 106958 *
    7 105758 *
    8 105850 *
    SPECjbb2005 (from 4 to 8) 106823 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 3 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35198
    2 82730
    3 93219
    4 104680 *
    5 105783 *
    6 105147 *
    7 104655 *
    8 104109 *
    SPECjbb2005 (from 4 to 8) 104875 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 4 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 34973
    2 80932
    3 91424
    4 103939 *
    5 104071 *
    6 103298 *
    7 102688 *
    8 102540 *
    SPECjbb2005 (from 4 to 8) 103307 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 5 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35802
    2 81211
    3 93183
    4 104977 *
    5 104049 *
    6 103367 *
    7 103299 *
    8 102678 *
    SPECjbb2005 (from 4 to 8) 103674 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010

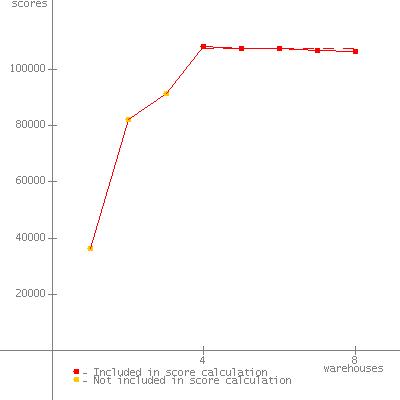

    JVM 6 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 36224
    2 82113
    3 91515
    4 108162 *
    5 107431 *
    6 107484 *
    7 106490 *
    8 106392 *
    SPECjbb2005 (from 4 to 8) 107192 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 7 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 36228
    2 81883
    3 90169
    4 103614 *
    5 104059 *
    6 103578 *
    7 103298 *
    8 102185 *
    SPECjbb2005 (from 4 to 8) 103347 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 8 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35767
    2 80267
    3 93502
    4 107991 *
    5 108188 *
    6 107190 *
    7 107171 *
    8 106294 *
    SPECjbb2005 (from 4 to 8) 107367 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 9 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 34670
    2 80900
    3 95057
    4 105895 *
    5 106164 *
    6 106127 *
    7 105850 *
    8 105070 *
    SPECjbb2005 (from 4 to 8) 105821 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 10 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35412
    2 82084
    3 92886
    4 106349 *
    5 105216 *
    6 105337 *
    7 105168 *
    8 104720 *
    SPECjbb2005 (from 4 to 8) 105358 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 11 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35409
    2 80954
    3 92250
    4 103092 *
    5 103653 *
    6 103314 *
    7 102557 *
    8 101870 *
    SPECjbb2005 (from 4 to 8) 102897 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 12 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35344
    2 81254
    3 90292
    4 107042 *
    5 106973 *
    6 106431 *
    7 106024 *
    8 105318 *
    SPECjbb2005 (from 4 to 8) 106358 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 13 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 37179
    2 82297
    3 91443
    4 105123 *
    5 104464 *
    6 104256 *
    7 103673 *
    8 103350 *
    SPECjbb2005 (from 4 to 8) 104173 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 14 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35137
    2 81602
    3 88748
    4 106905 *
    5 107050 *
    6 106673 *
    7 106390 *
    8 105152 *
    SPECjbb2005 (from 4 to 8) 106434 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 15 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 34116
    2 82518
    3 94360
    4 105786 *
    5 106433 *
    6 105104 *
    7 105323 *
    8 104499 *
    SPECjbb2005 (from 4 to 8) 105429 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010


    JVM 16 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 36821
    2 80390
    3 94057
    4 104005 *
    5 105156 *
    6 104913 *
    7 104160 *
    8 103348 *
    SPECjbb2005 (from 4 to 8) 104316 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Apr 22, 2010

    SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
    Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

    First published at SPEC.org on 25-May-2010
