SPECjbb2005 SPECjbb2005 bops = 5307339, SPECjbb2005 bops/JVM = 663417
Hewlett-Packard Company HP Proliant DL980 G7
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

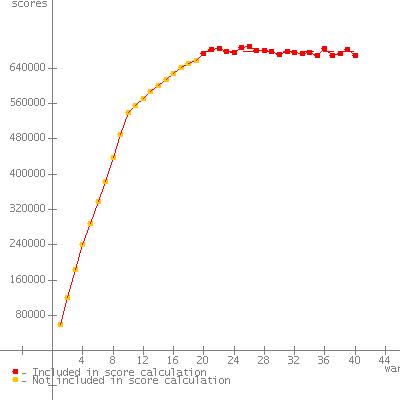

JVM run JVM Scores
1647235
2677859
3675851
4663053
5641802
6677900
7648098
8675541
SPECjbb2005 bops = 5307339, SPECjbb2005 bops/JVM = 663417

Hardware
Hardware Vendor Hewlett-Packard Company
Vendor URL http://www.hp.com
Model HP Proliant DL980 G7
Processor Intel Xeon E7-4870 2.4 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
MHz 2400
# of Chips 8
# of Cores 80
# of Cores/Chip 10
HW Threading Enabled? Yes
Procs Avail to Java 160
Memory (MB) 1048576
Memory Details 128 x 8GB PC3-10600R dual-rank DIMMs
Primary cache 32 KB I + 32 KB D on chip per core.
Secondary cache 256 KB I+D on chip per core
Other cache 30MB L3 per chip
Filesystem NTFS
Disks 146GB SAS 6G DP 15K
Other hardware none
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command Line start /B /AFFINITY %MASK% /HIGH java -Xmx25g -Xms25g -Xmn23g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=20 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 25000
JVM Maximum Heap Memory (MB) 25000
JVM Address bits 64
JVM CLASSPATH jbb.jar;
check.jar
JVM BOOTCLASSPATH C:\jre6\lib\alt-rt.jar;
C:\jre6\lib\alt-string.jar;
C:\jre6\lib\alt-string.jar;
C:\jre6\lib\alt-rt.jar;
C:\jre6\lib\resources.jar;
C:\jre6\lib\rt.jar;
C:\jre6\lib\sunrsasign.jar;
C:\jre6\lib\jsse.jar;
C:\jre6\lib\jce.jar;
C:\jre6\lib\charsets.jar;
C:\jre6\lib\modules\jdk.boot.jar;
C:\jre6\classes
OS Version Microsoft Windows Server 2008 Enterprise with SP1 (64-bit)
Other software none
Test Information
Tested by Hewlett-Packard Company
SPEC license # 3
Test location Cupertino, CA
Test date May 20, 2011
H/w available June-2011
JVM available Apr-2011
OS available Jan-2009
Other s/w available
AOT Compilation

Tuning
"Lock pages in memory" enabled for benchmark user.
Power Option Set to High Performance
Used start /AFFINITY to bind each of the 8 JVM instances to one physical CPU node
Notes
  • Set input.expected_peak_warehouse to 20, this is due to the fact that Runtime.getRuntime.availableProcessors() doesn't return the total number of processors in the system but instead returns the number of processors in the group which command prompt belongs to on Windows 2008 R2.
  • Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58248
2 118199
3 178061
4 233281
5 277388
6 327458
7 366454
8 421072
9 470654
10 519551
11 536458
12 551451
13 569279
14 583075
15 593077
16 604411
17 612973
18 622776
19 628858
20 651966 *
21 654488 *
22 666019 *
23 655802 *
24 656371 *
25 645741 *
26 643973 *
27 642673 *
28 647788 *
29 637276 *
30 641856 *
31 651997 *
32 640317 *
33 641778 *
34 650657 *
35 637851 *
36 646003 *
37 646978 *
38 642362 *
39 643425 *
40 646617 *
SPECjbb2005 (from 20 to 40) 647235 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 20, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59647
2 119199
3 184359
4 242011
5 292148
6 341282
7 385221
8 440433
9 490057
10 541245
11 556395
12 571780
13 587140
14 600814
15 616761
16 629784
17 641593
18 651549
19 659236
20 676700 *
21 677597 *
22 680205 *
23 675150 *
24 674197 *
25 679619 *
26 684121 *
27 670245 *
28 672642 *
29 678775 *
30 687563 *
31 687097 *
32 669061 *
33 669306 *
34 682563 *
35 668155 *
36 678151 *
37 678575 *
38 689885 *
39 682115 *
40 673312 *
SPECjbb2005 (from 20 to 40) 677859 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 20, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59746
2 122224
3 184563
4 241462
5 289959
6 340110
7 381672
8 436100
9 487692
10 539291
11 555191
12 572052
13 587994
14 601854
15 615826
16 628308
17 641594
18 652826
19 657969
20 674188 *
21 679893 *
22 679483 *
23 672666 *
24 674837 *
25 676822 *
26 681979 *
27 672806 *
28 673717 *
29 682511 *
30 672608 *
31 665652 *
32 682706 *
33 670264 *
34 681453 *
35 677249 *
36 683270 *
37 678315 *
38 667636 *
39 674754 *
40 670060 *
SPECjbb2005 (from 20 to 40) 675851 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 20, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57406
2 119784
3 182938
4 237558
5 285829
6 337333
7 380234
8 433796
9 486034
10 536627
11 553147
12 567573
13 582655
14 597223
15 609533
16 621245
17 629482
18 638807
19 645231
20 663338 *
21 666826 *
22 667746 *
23 669985 *
24 657341 *
25 671618 *
26 658806 *
27 667979 *
28 660808 *
29 662830 *
30 655820 *
31 660247 *
32 663401 *
33 659276 *
34 666729 *
35 665830 *
36 658339 *
37 665343 *
38 660722 *
39 658118 *
40 663015 *
SPECjbb2005 (from 20 to 40) 663053 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 20, 2011


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58334
2 118182
3 180236
4 234411
5 279581
6 329706
7 370755
8 422899
9 472655
10 521494
11 537057
12 551238
13 565818
14 579202
15 589011
16 599344
17 608591
18 618155
19 625182
20 641182 *
21 649563 *
22 644936 *
23 638654 *
24 647864 *
25 638580 *
26 657003 *
27 642041 *
28 637830 *
29 639621 *
30 641517 *
31 637688 *
32 649291 *
33 639729 *
34 641913 *
35 634047 *
36 634329 *
37 646549 *
38 639424 *
39 637720 *
40 638362 *
SPECjbb2005 (from 20 to 40) 641802 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 20, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59387
2 121456
3 183867
4 241056
5 287632
6 338403
7 383459
8 438954
9 490589
10 540247
11 554855
12 571685
13 587506
14 601547
15 614564
16 629095
17 642086
18 650972
19 657720
20 674909 *
21 682982 *
22 684770 *
23 678474 *
24 675009 *
25 687959 *
26 690439 *
27 679946 *
28 679805 *
29 678765 *
30 672024 *
31 677324 *
32 676512 *
33 672950 *
34 675868 *
35 669421 *
36 684343 *
37 668813 *
38 673531 *
39 683730 *
40 668317 *
SPECjbb2005 (from 20 to 40) 677900 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 20, 2011


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57276
2 119356
3 181784
4 234561
5 281050
6 331303
7 372943
8 426176
9 477409
10 526920
11 542525
12 557330
13 571615
14 585951
15 597311
16 607285
17 617385
18 626710
19 632322
20 647591 *
21 656008 *
22 659554 *
23 659563 *
24 642829 *
25 645812 *
26 656747 *
27 651834 *
28 643860 *
29 647495 *
30 646681 *
31 640902 *
32 651959 *
33 655366 *
34 642635 *
35 642999 *
36 648124 *
37 642653 *
38 640964 *
39 641382 *
40 645096 *
SPECjbb2005 (from 20 to 40) 648098 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 20, 2011


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59702
2 122296
3 186146
4 242788
5 290041
6 342179
7 384680
8 440386
9 494387
10 545976
11 562826
12 579270
13 593621
14 608265
15 620435
16 630573
17 642030
18 650896
19 656629
20 670987 *
21 679409 *
22 681472 *
23 673991 *
24 684726 *
25 674726 *
26 681776 *
27 675448 *
28 672543 *
29 679526 *
30 669268 *
31 665704 *
32 680009 *
33 670624 *
34 669133 *
35 677330 *
36 680915 *
37 673554 *
38 669169 *
39 679606 *
40 676438 *
SPECjbb2005 (from 20 to 40) 675541 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 20, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 12-Sep-2011
