SPECjbb2005 SPECjbb2005 bops = 1366787, SPECjbb2005 bops/JVM = 170848
IBM Corporation IBM System x3630 M4
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

JVM run JVM Scores
1171593
2171651
3171580
4167677
5171878
6171046
7170864
8170498
SPECjbb2005 bops = 1366787, SPECjbb2005 bops/JVM = 170848

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3630 M4
Processor Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.1 GHz)
MHz 2300
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 98304
Memory Details 12 x 8192MB, 2Rx4 PC3-12800R; slots 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, and 12 populated
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 500GB 7200 RPM SATA
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java7_0229\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\IBM\Java7_0229\jre\lib\se-service.jar;
C:\IBM\Java7_0229\jre\lib\math.jar;
C:\IBM\Java7_0229\jre\lib\jlm.jar;
C:\IBM\Java7_0229\jre\lib\ibmorb.jar;
C:\IBM\Java7_0229\jre\lib\ibmorbapi.jar;
C:\IBM\Java7_0229\jre\lib\ibmcfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmpkcs.jar;
C:\IBM\Java7_0229\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjgssfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjssefw.jar;
C:\IBM\Java7_0229\jre\lib\ibmsaslfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjcefw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java7_0229\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java7_0229\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java7_0229\jre\lib\xmldsigfw.jar;
C:\IBM\Java7_0229\jre\lib\xml.jar;
C:\IBM\Java7_0229\jre\lib\charsets.jar;
C:\IBM\Java7_0229\jre\lib\resources.jar;
C:\IBM\Java7_0229\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date May 3, 2012
H/w available June-2012
JVM available Jun-2012
OS available Feb-2011
Other s/w available
AOT Compilation

Tuning
  • Affinity masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • BIOS Settings
    • Turbo Mode: Enable
    • Hardware Prefetcher: Disable
    • Adjacent Cache Prefetch: Disable
    • DCU Streamer Prefetcher: Disable
    • DCU IP Prefetcher: Disable
    • QPI Link Frequency: Max Performance
    • Memory Power Management: Disable
    • Patrol Scrub: Disable
    • Memory Data Scrambling: Disable
    • Power/Performance Bias: OS Controlled
Notes
"Notes here"


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53896
2 137700
3 155632
4 169692 *
5 173403 *
6 172490 *
7 171624 *
8 170755 *
SPECjbb2005 (from 4 to 8) 171593 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 3, 2012

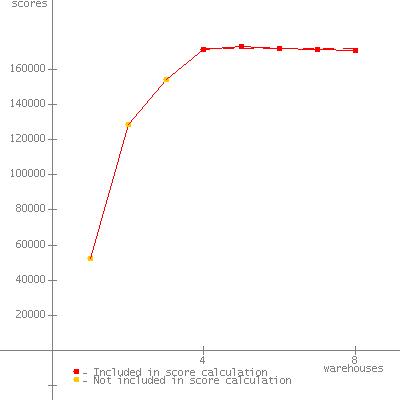

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52523
2 128390
3 154025
4 171040 *
5 173068 *
6 171901 *
7 171399 *
8 170847 *
SPECjbb2005 (from 4 to 8) 171651 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 3, 2012

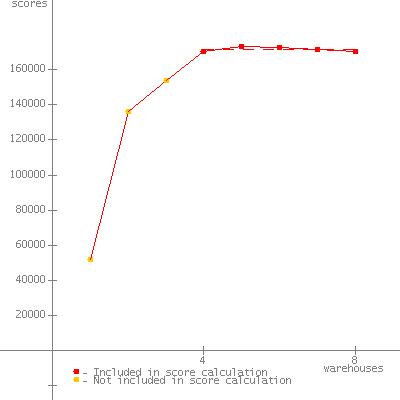

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52114
2 136357
3 153923
4 170415 *
5 173413 *
6 172526 *
7 171305 *
8 170239 *
SPECjbb2005 (from 4 to 8) 171580 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 3, 2012

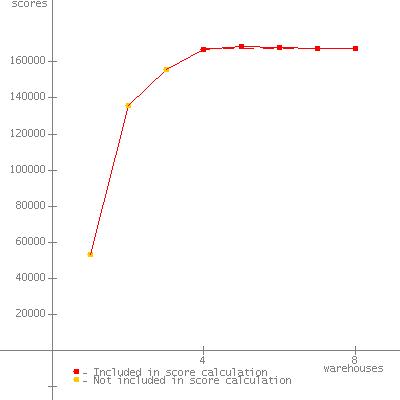

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53027
2 135714
3 155944
4 166896 *
5 168722 *
6 168233 *
7 167335 *
8 167199 *
SPECjbb2005 (from 4 to 8) 167677 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 3, 2012

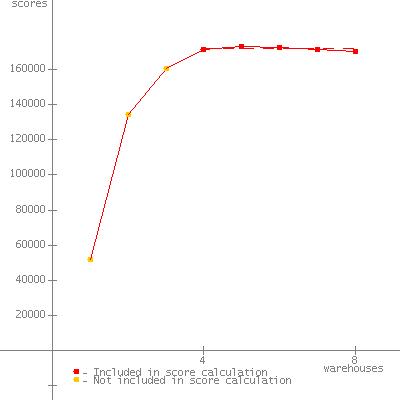

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 51775
2 134478
3 160639
4 171320 *
5 173342 *
6 172698 *
7 171592 *
8 170439 *
SPECjbb2005 (from 4 to 8) 171878 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 3, 2012

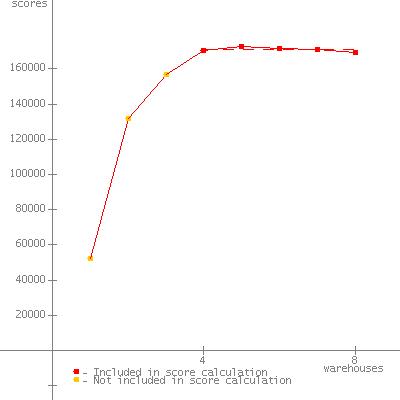

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52138
2 131789
3 156641
4 170186 *
5 172924 *
6 171572 *
7 171112 *
8 169435 *
SPECjbb2005 (from 4 to 8) 171046 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 3, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 51657
2 130752
3 147811
4 168788 *
5 172431 *
6 171622 *
7 170874 *
8 170605 *
SPECjbb2005 (from 4 to 8) 170864 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 3, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 51278
2 133841
3 156959
4 169277 *
5 172343 *
6 171280 *
7 169988 *
8 169604 *
SPECjbb2005 (from 4 to 8) 170498 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 3, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 31-May-2012
