SPECjbb2005 SPECjbb2005 bops = 2804562, SPECjbb2005 bops/JVM = 175285
Dell Inc. Dell PowerEdge M820 (Intel E5-4650, 2.7GHz)
IBM IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)

JVM run JVM Scores
1175929
2175131
3177552
4176172
5176284
6176462
7177198
8175130
9176621
10177444
11177447
12175805
13176690
14168302
15175097
16167298
SPECjbb2005 bops = 2804562, SPECjbb2005 bops/JVM = 175285

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model Dell PowerEdge M820 (Intel E5-4650, 2.7GHz)
Processor Intel Xeon E5-4650 (Intel Turbo Boost Technology up to 3.30 GHz)
MHz 2700
# of Chips 4
# of Cores 32
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 262120
Memory Details 32 x 8GB 2Rx4 PC3-12800R-11, ECC
Primary cache 32 KB I + 32 KB D
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 100 GB SATA SSD (classes + OS)
Other hardware N/A
Software
Software Vendor IBM
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command Line -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\aggressive.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\se-service.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\math.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\jlm.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmorb.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmorbapi.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmcfw.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmpkcs.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmcertpathfw.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmjgssfw.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmjssefw.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmsaslfw.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmjcefw.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmjgssprovider.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmjsseprovider2.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\ibmcertpathprovider.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\xmldsigfw.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\xml.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\charsets.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\resources.jar;
C:\SPECjbb2005\jvm\IBM-J9-V7\jre\lib\rt.jar
OS Version Windows 2008 Enterprise x64 Edition R2 SP1
Other software IBM SDK Java Technology Edition Version 7.0 for Windows x64
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location Round Rock, TX
Test date Aug 10, 2012
H/w available Aug-2012
JVM available Jun-2012
OS available Feb-2011
Other s/w available Jun-2012
AOT Compilation
None
Tuning
Operating system tunings
  • "Lock pages in memory" was enabled for the user running the benchmark
  • start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
Notes
  • BIOS Tunings
  • Adjacent Cache Line Prefetch disabled in BIOS
  • Hardware Prefetcher disabled in BIOS
  • DCU Streamer Prefetcher disabled in BIOS
  • Performance Optimized System Profile set in BIOS


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55127
2 141667
3 162965
4 177487 *
5 176483 *
6 176327 *
7 175012 *
8 174338 *
SPECjbb2005 (from 4 to 8) 175929 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54192
2 139458
3 165234
4 178059 *
5 175670 *
6 174907 *
7 173748 *
8 173274 *
SPECjbb2005 (from 4 to 8) 175131 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012

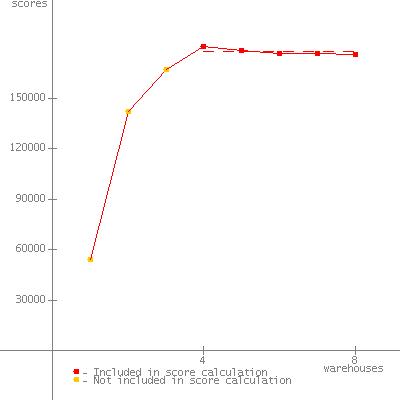

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53975
2 141838
3 166989
4 180930 *
5 178296 *
6 176383 *
7 176456 *
8 175697 *
SPECjbb2005 (from 4 to 8) 177552 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012

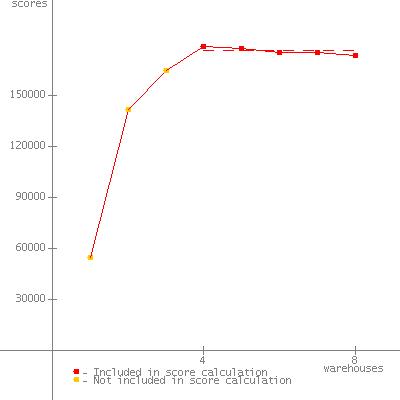

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54671
2 141469
3 164936
4 178961 *
5 177597 *
6 175482 *
7 175277 *
8 173546 *
SPECjbb2005 (from 4 to 8) 176172 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012

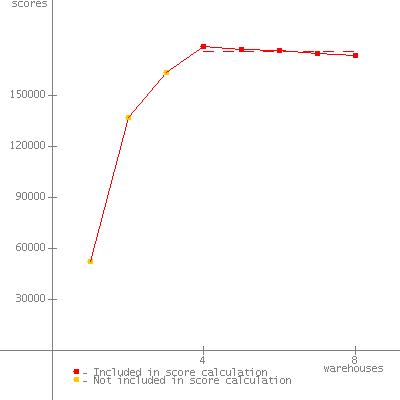

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52566
2 137226
3 163872
4 179229 *
5 177096 *
6 176742 *
7 174885 *
8 173467 *
SPECjbb2005 (from 4 to 8) 176284 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54152
2 146211
3 164538
4 178714 *
5 176787 *
6 176346 *
7 175486 *
8 174979 *
SPECjbb2005 (from 4 to 8) 176462 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57064
2 142069
3 166887
4 179819 *
5 177307 *
6 177554 *
7 175658 *
8 175649 *
SPECjbb2005 (from 4 to 8) 177198 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57259
2 142271
3 164109
4 177748 *
5 175984 *
6 174816 *
7 173811 *
8 173290 *
SPECjbb2005 (from 4 to 8) 175130 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59830
2 138868
3 165624
4 179182 *
5 176929 *
6 176807 *
7 176030 *
8 174159 *
SPECjbb2005 (from 4 to 8) 176621 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56235
2 144516
3 166785
4 179803 *
5 179052 *
6 177240 *
7 176045 *
8 175082 *
SPECjbb2005 (from 4 to 8) 177444 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54221
2 141041
3 161370
4 177768 *
5 180492 *
6 177166 *
7 176477 *
8 175331 *
SPECjbb2005 (from 4 to 8) 177447 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55135
2 142362
3 165621
4 178007 *
5 176722 *
6 174309 *
7 175755 *
8 174232 *
SPECjbb2005 (from 4 to 8) 175805 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56008
2 145278
3 164041
4 178303 *
5 177443 *
6 176082 *
7 176385 *
8 175236 *
SPECjbb2005 (from 4 to 8) 176690 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012

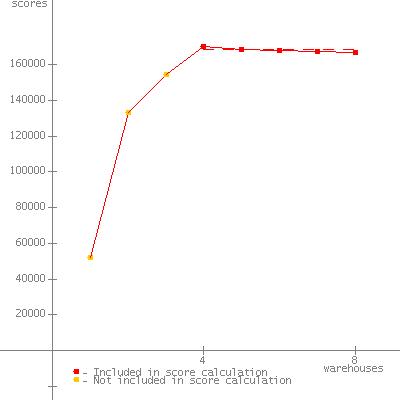

JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52192
2 133035
3 154423
4 170386 *
5 168625 *
6 167974 *
7 167548 *
8 166976 *
SPECjbb2005 (from 4 to 8) 168302 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59155
2 143225
3 163565
4 177687 *
5 176025 *
6 175295 *
7 172870 *
8 173610 *
SPECjbb2005 (from 4 to 8) 175097 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012

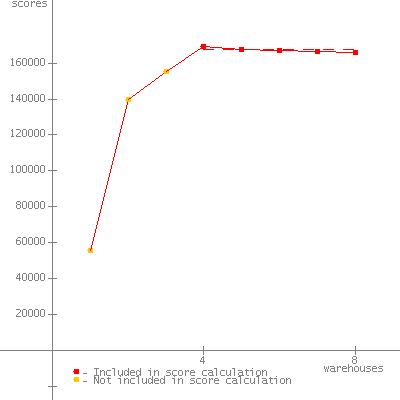

JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55853
2 139547
3 155349
4 169412 *
5 167458 *
6 167219 *
7 166651 *
8 165751 *
SPECjbb2005 (from 4 to 8) 167298 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 10, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 05-Sep-2012
