Supermicro X8DTN+ CODE DEFECT (CD) RESULT
Tested by: Intel Corp. Test Sponsor: Intel Corp Test location: Shanghai, PRC Test date: Feb 2, 2013
SPEC license #: 13 Hardware Availability: Jan-2011 Software Availability: Jan-2013 Publication: Feb 22, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttp://supermicro.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores12
Total Threads24
Total Memory Amount (GB)48
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSupermicro
VendorSupermicro
Vendor URLhttp://supermicro.com/
AvailableJan-2011
ModelX8DTN+
Form Factor2U
CPU NameIntel Xeon X5690
CPU Characteristics6-Core, 3.46GHz(Turbo Boost Technology up to 3.73GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System12
Cores Per Chip6
Threads Per System24
Threads Per Core2
VersionNone
CPU Frequency (MHz)3460
Primary Cache64KB
Secondary Cache256 KB per core
Tertiary Cache12MB per chip
Other CacheNone
Disk1x 500GB 7200RPM
File SystemNTFS
Memory Amount (GB)48
# and size of DIMM(s)6 x 8192MB
Memory Details2Rx4 PC3-10600R ECC;Slots A1-3,B1-3 populated
# and type of Network Interface Cards (NICs)2x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 750
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat Ltd
Vendor URLhttp:/redhat.com/
VersionRRed Hat Enterprise Linux 6.3
AvailableJun-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u11
VendorOracle Corp.
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_11
AvailableJan-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xmx6g -Xms6g -Xmn3g -XX:+UseParalleOldGC -XX:-UseAdaptiveSizePolicy -XX:UseBiasedLocking
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 20739 20977 21216 21454 21693
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 2205 5144 5880 9920 13716 6188
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 238 - / 238 - / 238 - / 238 - / 238 - / 238
1000us 1907 / 2145 238 / 477 - / 238 - / 238 - / 238 - / 238
5000us 19309 / 19547 14541 / 14780 5244 / 5483 4291 / 4052 1430 / 1669 - / 238
10000us 19547 / 19786 16925 / 17163 7628 / 7867 5721 / 5483 2384 / 1669 - / 238
20000us 19786 / 20024 17640 / 17878 9058 / 8820 6913 / 7151 4291 / 2622 - / 238
50000us 19786 / 20024 18355 / 18594 12396 / 12634 10489 / 10012 6675 / 4052 - / 238
100000us 20024 / 20262 19309 / 19547 15971 / 15495 13588 / 12634 6675 / 5483 - / 238
200000us 20024 / 20262 19547 / 19786 17640 / 17402 15256 / 14780 11681 / 8820 6913 / 1669
500000us 20262 / 20501 19786 / 20024 18355 / 18594 17640 / 17402 15256 / 12396 11681 / 1669
1000000us 20501 / 20739 20262 / 20501 19786 / 20024 19547 / 19786 19309 / 19070 18117 / 1669

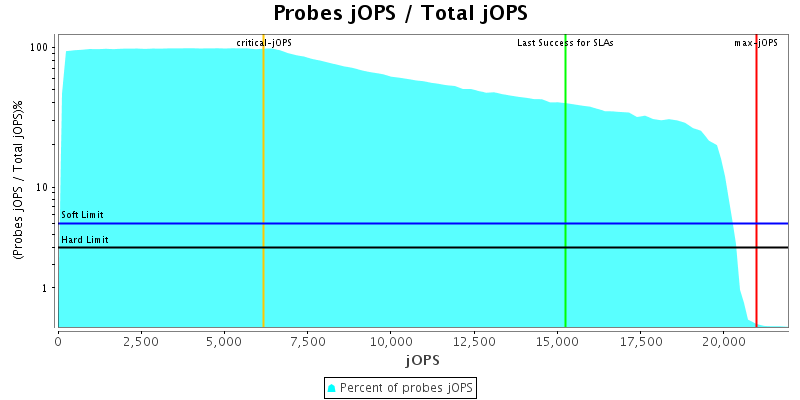

Probes jOPS / Total jOPS

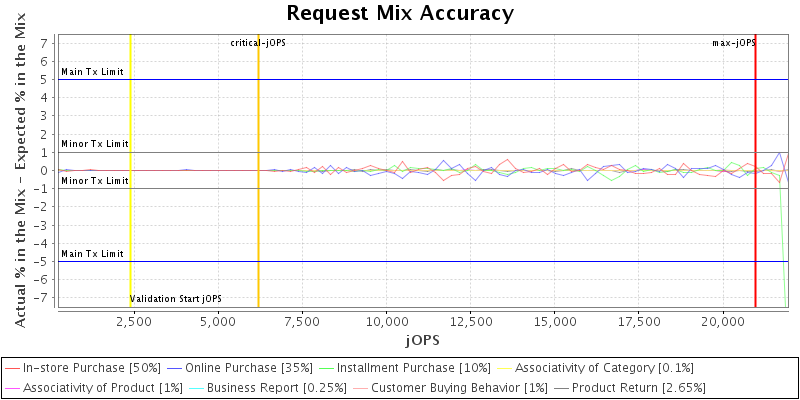

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

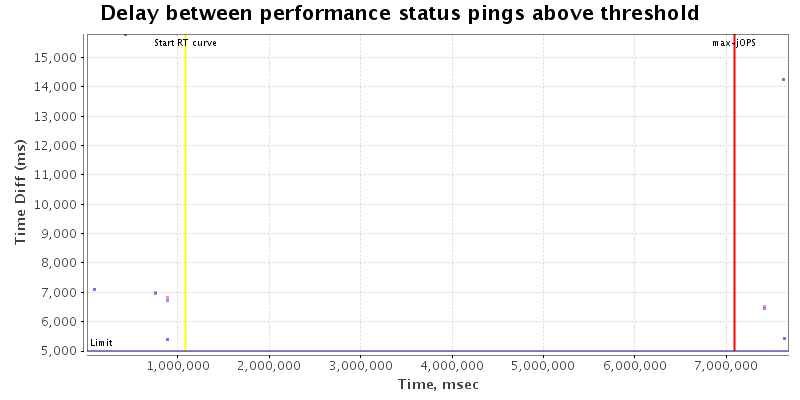

Delay between status pings

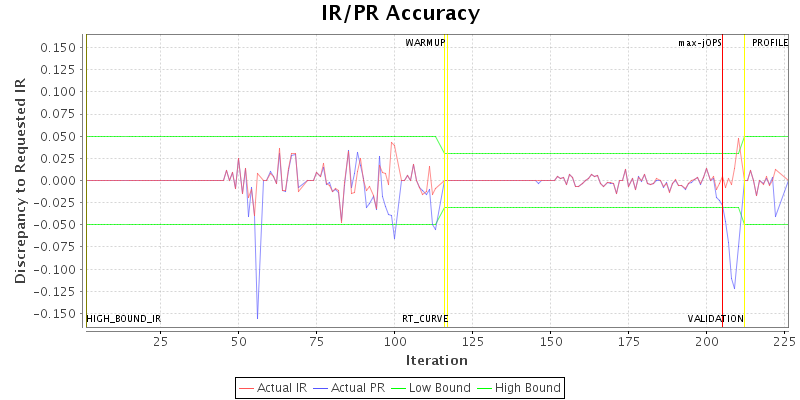

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 24 48
specjbb.group.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 23838 IR
High-bound (settled) is 21730 IR
