Intel Server System R1304BT CODE DEFECT (CD) RESULT
Tested by: Intel Corp. Test Sponsor: Intel Corp Test location: Hillsboro, OR Test date: Feb 1, 2013
SPEC license #: 13 Hardware Availability: Sept-2011 Software Availability: Jan-2013 Publication: Feb 22, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

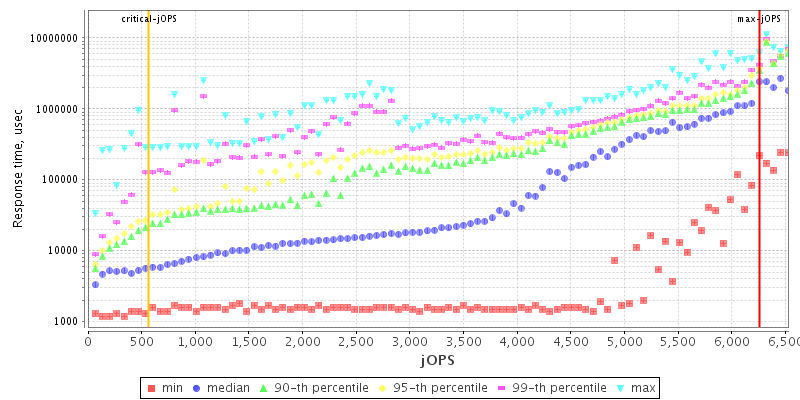

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorIntel Corp
Vendor URLhttp://intel.com/
System SourceParts Built
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores4
Total Threads8
Total Memory Amount (GB)8
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameIntel Server System R1304BT Family
VendorIntel Corp
Vendor URLhttp://intel.com/
AvailableSept-2011
ModelR1304BT LSHBN
Form Factor1U Rack
CPU NameIntel Xeon E3-1260L
CPU CharacteristicsQuad-Core, 2.40GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System4
Cores Per Chip4
Threads Per System8
Threads Per Core2
VersionR1304BT LSHBN
CPU Frequency (MHz)2400
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache8MB (I+D) on chip per chip
Other CacheNone
Disk1x 160GB Intel SSD 320 Series
File SystemNTFS
Memory Amount (GB)8
# and size of DIMM(s)4 x 2048MB
Memory Details2Rx8 DDR3-1333 PC3-10600E-9-10-E0 ECC CL9; All slots populated
# and type of Network Interface Cards (NICs)onboard 1 Gbit
Power Supply Quantity and Rating (W)1 x 350
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2008 R2 Enterprise
VendorMicrosoft Corp.
Vendor URLhttp://microsoft.com/
VersionWindows Server 2008 R2 Enterprise
AvailableJan-2009
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u11
VendorOracle Corp.
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_11
AvailableJan-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx512m -Xms512m -jar specjbb2013.jar -skipReport -m MULTICONTROLLER
Tuning None
Notes Option -skipreport was used as Controller is only using 512m heap. Report was manually generated later.
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx5g -Xms5g -Xmn2g -XX:+UseConcMarkSweepGC -XX:+UseParNewGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking
Tuning affinity note 1
  • note 2
Notes "Notes here"
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx1500m -Xms1500m
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 6187 6254 6321 6389 6456
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 100 369 437 1025 3579 568
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 67 - / 67 - / 67 - / 67 - / 67 - / 67
1000us - / 67 - / 67 - / 67 - / 67 - / 67 - / 67
5000us 1479 / 1412 403 / 202 - / 67 - / 67 - / 67 - / 67
10000us 3497 / 3564 1345 / 1412 134 / 202 67 / 134 67 / 134 - / 67
20000us 4438 / 4371 3228 / 3295 471 / 538 336 / 403 134 / 202 - / 67
50000us 4707 / 4775 4035 / 4102 2152 / 1883 1412 / 807 336 / 403 67 / 134
100000us 4842 / 4909 4237 / 4304 2354 / 2286 1816 / 1076 403 / 471 269 / 134
200000us 5044 / 5111 4640 / 4707 3699 / 3631 3161 / 2286 1210 / 471 269 / 134
500000us 5918 / 5985 5380 / 5447 4707 / 4775 4573 / 4640 4438 / 807 2152 / 471
1000000us 6254 / - 5985 / 6052 5649 / 5716 5380 / 5447 5178 / 1076 4573 / 807
Probes jOPS / Total jOPS

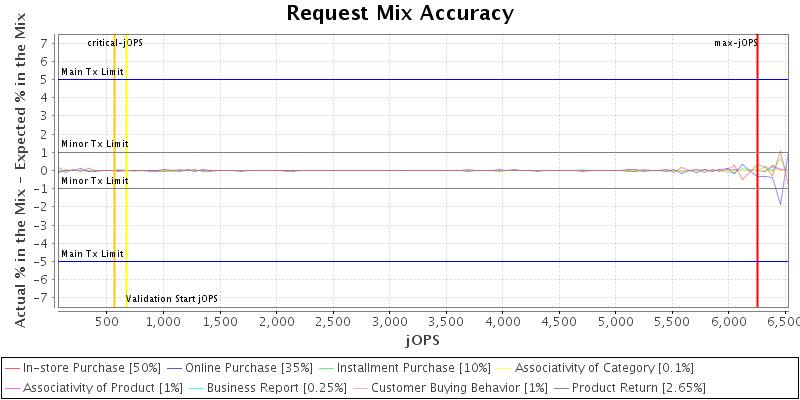

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

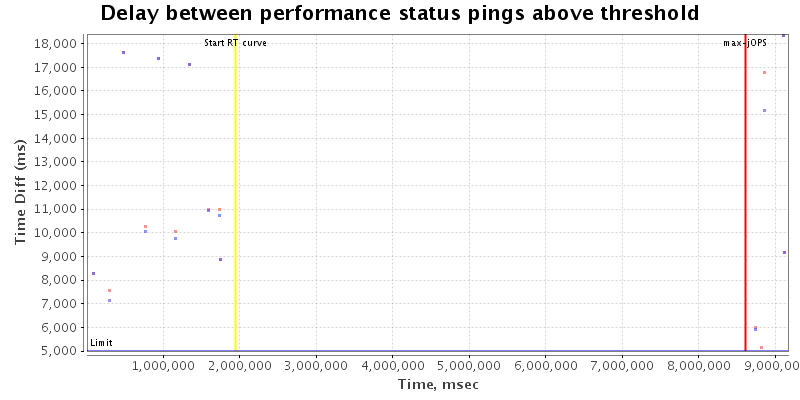

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 6725 IR
High-bound (settled) is 6401 IR
