Intel Server System R1304BT CODE DEFECT (CD) RESULT
Tested by: Intel Corp. Test Sponsor: Intel Corp Test location: Hillsboro, OR Test date: Feb 1, 2013
SPEC license #: 13 Hardware Availability: Sept-2011 Software Availability: Jan-2013 Publication: Feb 22, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorIntel Corp
Vendor URLhttp://intel.com/
System SourceParts Built
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores4
Total Threads8
Total Memory Amount (GB)8
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameIntel Server System R1304BT Family
VendorIntel Corp
Vendor URLhttp://intel.com/
AvailableSept-2011
ModelR1304BT LSHBN
Form Factor1U Rack
CPU NameIntel Xeon E3-1260L
CPU CharacteristicsQuad-Core, 2.40GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System4
Cores Per Chip4
Threads Per System8
Threads Per Core2
VersionR1304BT LSHBN
CPU Frequency (MHz)2400
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache8MB (I+D) on chip per chip
Other CacheNone
Disk1x 160GB Intel SSD 320 Series
File SystemNTFS
Memory Amount (GB)8
# and size of DIMM(s)4 x 2048MB
Memory Details2Rx8 DDR3-1333 PC3-10600E-9-10-E0 ECC CL9; All slots populated
# and type of Network Interface Cards (NICs)onboard 1 Gbit
Power Supply Quantity and Rating (W)1 x 350
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2008 R2 Enterprise
VendorMicrosoft Corp.
Vendor URLhttp://microsoft.com/
VersionWindows Server 2008 R2 Enterprise
AvailableJan-2009
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u11
VendorOracle Corp.
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_11
AvailableJan-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameR1304BT Family
VendorIntel Corp
Vendor URLhttp://intel.com/
AvailableSept-2011
ModelR1304BT LSHBN
Form Factor1U Rack
CPU NameIntel Xeon E3-1260L
CPU CharacteristicsQuad-Core, 2.40GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System4
Cores Per Chip4
Threads Per System8
Threads Per Core2
VersionR1304BT LSHBN
CPU Frequency (MHz)2400
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache8MB (I+D) on chip per chip
Other CacheNone
Disk1x 160GB Intel SSD 320 Series
File SystemNTFS
Memory Amount (GB)8
# and size of DIMM(s)4 x 2048MB
Memory Details2Rx8 DDR3-1333 PC3-10600E-9-10-E0 ECC CL9; All slots populated
# and type of Network Interface Cards (NICs)onboard 1 Gbit
Power Supply Quantity and Rating (W)1 x 350
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNetgear
VendorNetgear
Vendor URLhttp://netgear.com/
VersionGS524TNA
AvailableJune-2004
Bitnessn/a
NotesNone
Operating System os_2
NameWindows Server 2008 R2 Enterprise
VendorMicrosoft Corp.
Vendor URLhttp://Microsoft.com/
VersionWindows Server 2008 R2 Enterprise
AvailableJan-2009
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE
VendorOracle Corp.
Vendor URLhttp://www.oracle.com
VersionJDK 1.7.0_11
AvailableJan-2013
Bitness64
Notesnone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx6g -Xms6g -Xmn3g -XX:+UseConcMarkSweepGC -XX:+UseParNewGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking
Tuning None
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(1)
OS Image Description os_2
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xmx2g -Xms2g
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms4g -Xmx4g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 6520 6601 6681 6762 6842
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 120 442 523 764 3408 591
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 80 - / 80 - / 80 - / 80 - / 80 - / 80
1000us - / 80 - / 80 - / 80 - / 80 - / 80 - / 80
5000us 3783 / 3864 644 / 322 - / 80 - / 80 - / 80 - / 80
10000us 4830 / 4910 2093 / 2173 1368 / 322 161 / 241 80 / 161 - / 80
20000us 5393 / 5474 4186 / 4266 1851 / 724 1529 / 563 80 / 161 - / 80
50000us 5635 / 5715 4830 / 4910 2817 / 1610 1771 / 1127 483 / 402 80 / 161
100000us 5635 / 5715 5232 / 5071 3059 / 2495 2093 / 1127 483 / 563 80 / 161
200000us 5876 / 5957 5635 / 5554 4025 / 2978 3059 / 1449 885 / 644 80 / 161
500000us 6359 / 6440 6037 / 6118 5313 / 5393 5152 / 1610 4830 / 724 2093 / 644
1000000us 6520 / 6601 6359 / 6440 6037 / 6118 5876 / 5957 5635 / 1127 3783 / 724
Probes jOPS / Total jOPS

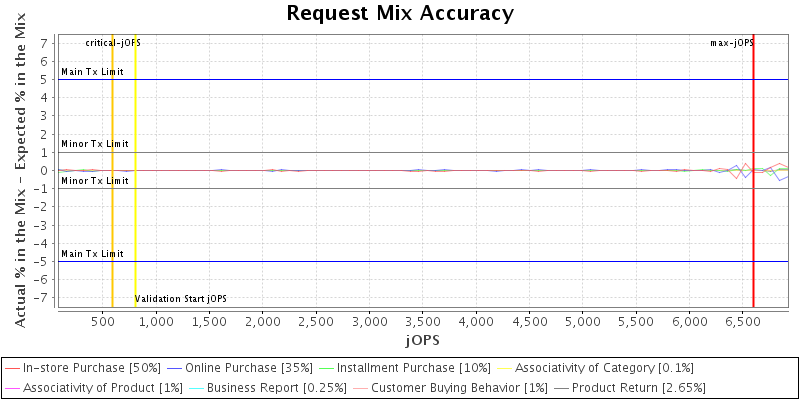

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.controller.host localhost 134.134.101.195
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 8050 IR
High-bound (settled) is 6725 IR
