SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Oracle Corporation Sun Server X2-4 CODE DEFECT (CD) RESULT
Tested by: Oracle Corporation Test Sponsor: Oracle Corporation Test location: Burlington, MA Test date: Feb 16, 2013
SPEC license #: 6 Hardware Availability: Jun-2011 Software Availability: Feb-2013 Publication: Mar 07, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-Composite: Single JVM/Single Host
(# of groups: 1)

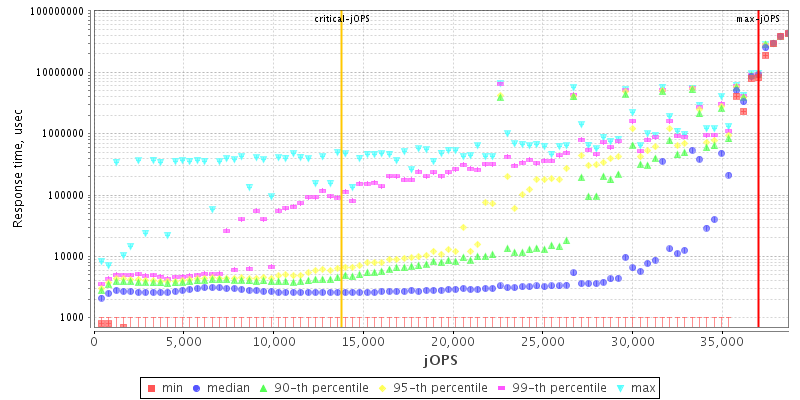

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores40
Total Threads80
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSun Server X2-4
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableJun-2011
ModelSun Server X2-4
Form Factor3RU rackmount server
CPU NameIntel Xeon E7-4870
CPU CharacteristicsIntel Turbo Boost Technology up to 2.80 GHz
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System40
Cores Per Chip10
Threads Per System80
Threads Per Core2
Versionnone
CPU Frequency (MHz)2400
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache30 MB I+D on chip per chip
Other CacheNone
Disk1x Hitachi HUC106030CSS600 300.0 GB 10000 RPM disk drive
File SystemZFS
Memory Amount (GB)128
# and size of DIMM(s)32 x 4096MB
Memory Details4GB 2Rx16 PC3-1333 ECC CL9; slots 0, 2, 4, ..., 62 populated
# and type of Network Interface Cards (NICs)Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)(2) 2000W AC power supplies
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNA
VendorNA
Vendor URLNA
VersionNA
AvailableNA
BitnessNA
NotesNA
Operating System os_1
NameOracle Solaris 11.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
Version0.5.11
AvailableOct-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u15
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/technetwork/java
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_15
AvailableFeb-2013
Bitness64
NotesNone
Other Software other_1
Namenone
Vendornone
Vendor URLnone
Versionnone
Availablenone
Bitnessnone
Notesnone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning none
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning none
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xmx99g -Xms99g -Xmn85g -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:-UseBiasedLocking -XX:+UseLargePages -XX:LargePageSizeInBytes=1g
Tuning None
Notes The object-caching memory allocation library libumem was used by setting the environment variable LD_PRELOAD=libumem.so
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 36596 37007 37418 37829 38241
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 8458 9594 13734 17064 26433 13812
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 411 - / 411 - / 411 - / 411 - / 411 - / 411
1000us - / 411 - / 411 - / 411 - / 411 - / 411 - / 411
5000us 34540 / 34951 29194 / 26727 14803 / 15214 11513 / 11925 5757 / 2467 - / 411
10000us 35362 / 35774 31250 / 31662 21793 / 22204 18092 / 18504 9869 / 7401 822 / 1234
20000us 35362 / 35774 32895 / 31662 26316 / 22615 21382 / 20559 9869 / 7401 2056 / 1234
50000us 35362 / 35774 34540 / 31662 26316 / 22615 21382 / 21793 9869 / 9046 4112 / 1234
100000us 35362 / 35774 34540 / 31662 27961 / 22615 23438 / 22615 14392 / 12747 9869 / 1234
200000us 35362 / 35774 34540 / 31662 28783 / 22615 25905 / 22615 17681 / 16448 14392 / 1234
500000us 35362 / 35774 35362 / 33306 32895 / 22615 30428 / 22615 27961 / 22615 25494 / 17270
1000000us 35362 / 35774 35362 / 35774 35362 / 22615 35362 / 22615 34540 / 22615 32895 / 22615

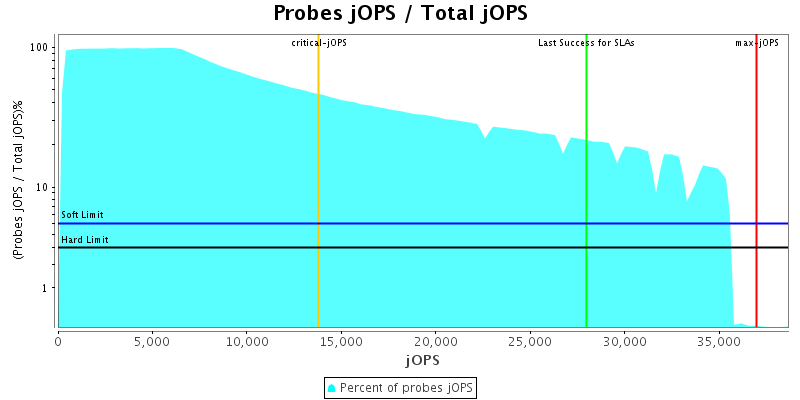

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
User did not set any property for this run
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 41119 IR
High-bound (settled) is 34282 IR
Copyright © 2012-2014 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2013 Version: [SPECjbb2013 1.0, January 22, 2013]
