Hewlett-Packard Company HP ProLiant ML350p Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Mar 05, 2013
SPEC license #: 3 Hardware Availability: Dec-2012 Software Availability: Mar-2013 Publication: Mar 21, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads32
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant ML350p Gen8
VendorHewlett-Packard Company
Vendor URLhttp://hp.com/
AvailableSept-2012
ModelHP ProLiant ML350p Gen8
Form Factor4U
CPU NameIntel Xeon E5-2690
CPU CharacteristicsTurbo Boost Technology up to 3.80 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System32
Threads Per Core2
VersionNone
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D per core
Tertiary Cache20 MB I+D on chip per chip
Other CacheNone
Disk2 x 146 GB 15 K SAS (652605-B21)
File SystemNTFS
Memory Amount (GB)128
# and size of DIMM(s)16 x 8192 MB
Memory Details2Rx4 PC3-12800R-11, ECC
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 460
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2008 R2 Enterprise
VendorMicrosoft
Vendor URLhttp://www.windows.com/
VersionSP1
AvailableFeb-2011
Bitness64
Notes
  • Lock Pages in Memory: Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 0 MB
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
Java Virtual Machine jvm_1
NameOracle Java SE 7u15
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_15
AvailableFeb-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • Memory Power Savings Mode is set to Maximum Performance
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line start affinity -XX:+UseLargePages -XX:-UseBiasedLocking -XX:+UseParallelOldGC -Xms24G -Xmx24G -Xmn18G -XX:+PrintGCDetails
Tuning
  • Affinity Masks
    • 0xffff
    • 0xffff0000
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 39570 40047 40524 41000 41477
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 7389 8343 10250 15838 28221 12308
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 477 - / 477 - / 477 - / 477 - / 477 - / 477
1000us 1430 / 1907 953 / 1430 477 / 953 477 / 953 - / 477 - / 477
5000us 23837 / 20500 6674 / 7151 5244 / 5721 4767 / 5244 4291 / 4767 1907 / 1430
10000us 26698 / 27175 22884 / 20023 13826 / 10965 12395 / 10488 7628 / 7151 1907 / 1430
20000us 31465 / 31942 27651 / 27175 20023 / 20500 17640 / 12872 8105 / 7151 1907 / 1430
50000us 33849 / 33372 30989 / 31465 22884 / 23361 17640 / 12872 8105 / 8581 1907 / 1430
100000us 35756 / 35279 31942 / 32419 25744 / 23361 20500 / 12872 10012 / 10488 1907 / 1430
200000us 36710 / 37186 32896 / 33372 29558 / 23361 28605 / 13349 16686 / 12872 8105 / 2384
500000us 38617 / 39093 35756 / 36233 32896 / 33372 32896 / 23361 31942 / 12872 31942 / 12872
1000000us 38617 / 39093 37186 / 37663 35756 / 36233 35756 / 33372 35279 / 12872 34326 / 12872

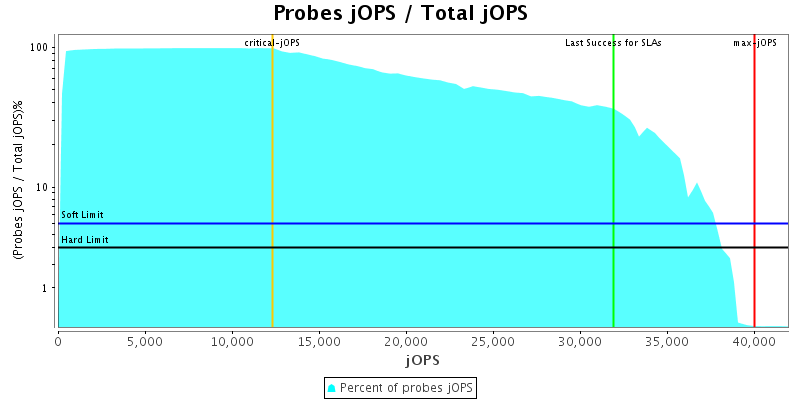

Probes jOPS / Total jOPS

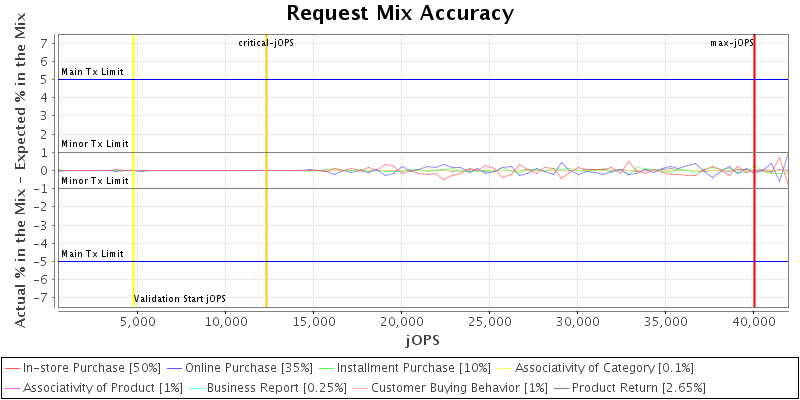

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

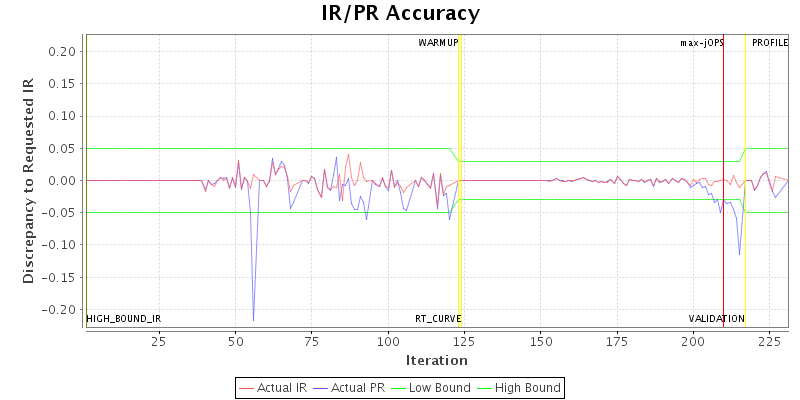

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1
specjbb.comm.connect.connpool.size 256 256
specjbb.comm.connect.pool.max 256 256
specjbb.comm.connect.pool.min 1 1
specjbb.comm.connect.timeouts.connect 60000 60000
specjbb.comm.connect.timeouts.read 60000 60000
specjbb.comm.connect.timeouts.write 60000 60000
specjbb.controller.handshake.period 5000 5000
specjbb.controller.handshake.timeout 600000 600000
specjbb.controller.host localhost localhost
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.port 24000 24000
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 32 16
specjbb.group.count 1 2
specjbb.heartbeat.period 10000 10000
specjbb.heartbeat.threshold 100000 100000
specjbb.logLevel INFO INFO
specjbb.mapreducer.pool.size 32 32
specjbb.run.datafile.dir . .
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 47675 IR
High-bound (settled) is 40795 IR
