SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP ProLiant DL560 Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Mar 05, 2013
SPEC license #: 3 Hardware Availability: Dec-2012 Software Availability: Mar-2013 Publication: Mar 21, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

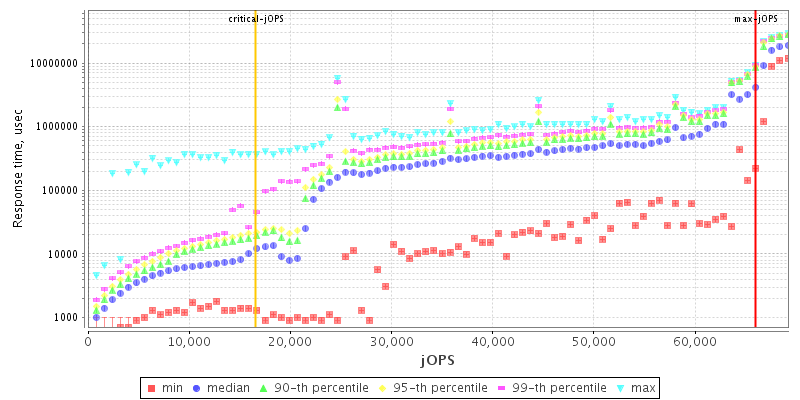

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores32
Total Threads64
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP ProLiant DL560 Gen8
VendorHewlett-Packard Company
Vendor URLhttp://hp.com/
AvailableSept-2012
ModelHP ProLiant DL560 Gen8
Form Factor2U
CPU NameIntel Xeon E5-4650
CPU CharacteristicsTurbo Boost Technology up to 3.30 GHz
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System32
Cores Per Chip8
Threads Per System64
Threads Per Core2
VersionNone
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D per core
Tertiary Cache20 MB I+D on chip per chip
Other CacheNone
Disk2 x 300 GB 10 K SAS (652564-B21)
File SystemNTFS
Memory Amount (GB)256
# and size of DIMM(s)32 x 8192 MB
Memory Details2Rx4 PC3-12800R-11, ECC
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2008 R2 Enterprise
VendorMicrosoft
Vendor URLhttp://www.windows.com/
VersionSP1
AvailableFeb-2011
Bitness64
Notes
  • Lock Pages in Memory: Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 0 MB
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
Java Virtual Machine jvm_1
NameOracle Java SE 7u15
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_15
AvailableFeb-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • HP Power Regulator set to HP Static High Performance Mode
    • Memory Power Savings Mode is set to Maximum Performance
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line start affinity -XX:+UseLargePages -XX:-UseBiasedLocking -XX:+UseParallelOldGC -Xms24G -Xmx24G -Xmn18G -XX:+PrintGCDetails
Tuning
  • Affinity Masks
    • 0xffff
    • 0xffff0000
    • 0xffff00000000
    • 0xffff000000000000
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 65211 66007 66802 67597 68392
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 6759 16170 17893 21074 30378 16577
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 795 - / 795 - / 795 - / 795 - / 795 - / 795
1000us 1591 / 2386 795 / 1591 - / 795 - / 795 - / 795 - / 795
5000us 20677 / 21472 7157 / 7953 4772 / 5567 3976 / 4772 2386 / 3181 795 / 1591
10000us 21472 / 22267 20677 / 15905 8748 / 9543 7157 / 7953 6362 / 7157 3181 / 2386
20000us 21472 / 22267 20677 / 21472 20677 / 17496 15110 / 15905 12724 / 13519 3181 / 2386
50000us 22267 / 23063 21472 / 22267 20677 / 21472 20677 / 21472 16700 / 15110 3181 / 2386
100000us 29425 / 25448 22267 / 23063 21472 / 22267 20677 / 21472 17496 / 18291 3181 / 2386
200000us 43739 / 44535 27834 / 28629 23858 / 24653 23063 / 23858 20677 / 21472 5567 / 4772
500000us 62826 / 63621 50101 / 50897 40558 / 24653 37377 / 24653 31810 / 24653 22267 / 23063
1000000us 62826 / 63621 61235 / 62030 57259 / 24653 57259 / 24653 55668 / 24653 43739 / 24653

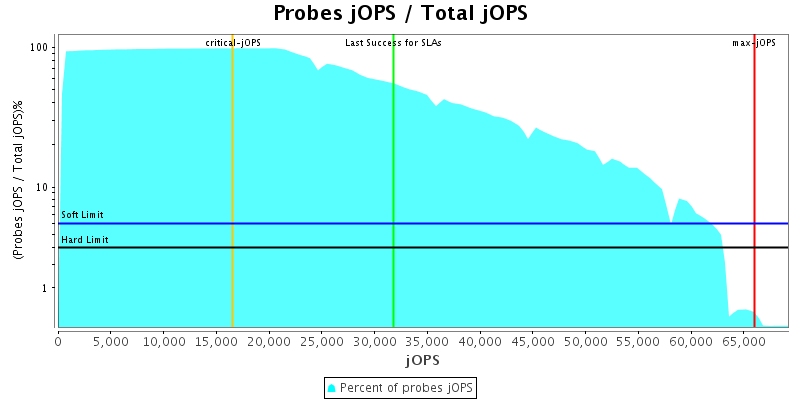

Number of probes
Probes jOPS / Total jOPS

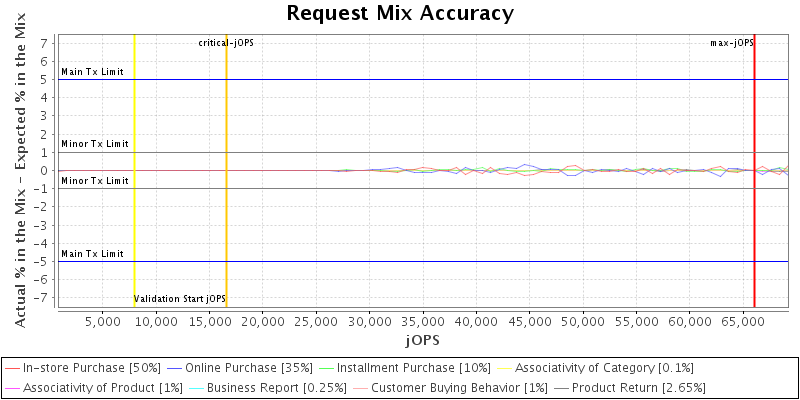

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 256
specjbb.comm.connect.pool.max 256 256
specjbb.comm.connect.pool.min 1 1
specjbb.comm.connect.timeouts.connect 60000 60000
specjbb.comm.connect.timeouts.read 60000 60000
specjbb.comm.connect.timeouts.write 60000 60000
specjbb.controller.handshake.period 5000 5000
specjbb.controller.handshake.timeout 600000 600000
specjbb.controller.host localhost localhost
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.port 24000 24000
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 64 32
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 10000
specjbb.heartbeat.threshold 100000 100000
specjbb.mapreducer.pool.size 64 32
specjbb.run.datafile.dir . .
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 79526 IR
High-bound (settled) is 69310 IR
Copyright © 2012-2014 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2013 Version: [SPECjbb2013 1.0, January 22, 2013]
