Hewlett-Packard Company HP ProLiant DL560 Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Mar 15, 2013
SPEC license #: 3 Hardware Availability: Dec-2012 Software Availability: Mar-2013 Publication: Apr 08, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

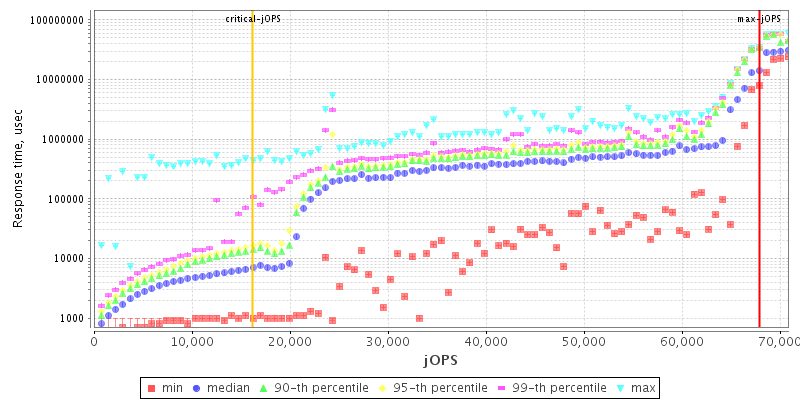

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores32
Total Threads64
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant DL560 Gen8
VendorHewlett-Packard Company
Vendor URLhttp://hp.com/
AvailableSept-2012
ModelHP ProLiant DL560 Gen8
Form Factor2U
CPU NameIntel Xeon E5-4650
CPU CharacteristicsTurbo Boost Technology up to 3.30 GHz
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System32
Cores Per Chip8
Threads Per System64
Threads Per Core2
VersionNone
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D per core
Tertiary Cache20 MB I+D on chip per chip
Other CacheNone
Disk2 x 300 GB 10 K SAS (652564-B21)
File SystemNTFS
Memory Amount (GB)256
# and size of DIMM(s)32 x 8192 MB
Memory Details2Rx4 PC3-12800R-11, ECC
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs (embedded)
Power Supply Quantity and Rating (W)1 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2008 R2 Enterprise
VendorMicrosoft
Vendor URLhttp://www.windows.com/
VersionWindows Server 2008 R2 Enterprise, SP1
AvailableJun-2012
Bitness64
Notes
  • Lock Pages in Memory: Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 0 MB
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
Java Virtual Machine jvm_1
NameOracle Java SE 7u17
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_17
AvailableMar-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line start affinity -XX:+UseLargePages -XX:-UseBiasedLocking -XX:+UseParallelOldGC -Xms24G -Xmx24G -Xmn18G -XX:+PrintGCDetails
Tuning
  • Affinity masks
    • 0xffff
    • 0xffff0000
    • 0xffff00000000
    • 0xffff000000000000
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 67112 67850 68587 69325 70062
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 8481 13520 16593 20281 28909 16199
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 737 - / 737 - / 737 - / 737 - / 737 - / 737
1000us 2212 / 2950 737 / 1475 - / 737 - / 737 - / 737 - / 737
5000us 19912 / 20650 11062 / 11800 5900 / 6637 5162 / 5900 3687 / 4425 - / 737
10000us 20650 / 21387 19912 / 20650 11800 / 12537 9587 / 10325 8112 / 8850 3687 / 737
20000us 20650 / 21387 19912 / 20650 19912 / 20650 19175 / 19912 14012 / 12537 3687 / 1475
50000us 21387 / 22125 20650 / 21387 19912 / 20650 19912 / 20650 14012 / 12537 3687 / 1475
100000us 30237 / 24337 22125 / 22862 20650 / 21387 20650 / 21387 16962 / 16225 3687 / 1475
200000us 47937 / 40562 24337 / 25075 22862 / 23600 22862 / 23600 19912 / 20650 3687 / 1475
500000us 64162 / 64900 50150 / 50887 36875 / 37612 36137 / 24337 30237 / 23600 19912 / 12537
1000000us 64162 / 64900 64162 / 64900 61212 / 54575 58262 / 24337 56787 / 23600 30237 / 23600
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 192
specjbb.comm.connect.pool.max 256 202
specjbb.comm.connect.pool.min 1 1
specjbb.comm.connect.timeouts.connect 60000 60000
specjbb.comm.connect.timeouts.read 60000 60000
specjbb.comm.connect.timeouts.write 60000 60000
specjbb.controller.handshake.period 5000 5000
specjbb.controller.handshake.timeout 600000 600000
specjbb.controller.host localhost localhost
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.port 24000 24000
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 64 128
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 10000
specjbb.heartbeat.threshold 100000 100000
specjbb.mapreducer.pool.size 64 32
specjbb.run.datafile.dir . .
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 73750 IR
High-bound (settled) is 70683 IR
