Hewlett-Packard Company HP ProLiant DL560 Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Mar 15, 2013
SPEC license #: 3 Hardware Availability: Dec-2012 Software Availability: Mar-2013 Publication: Apr 08, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

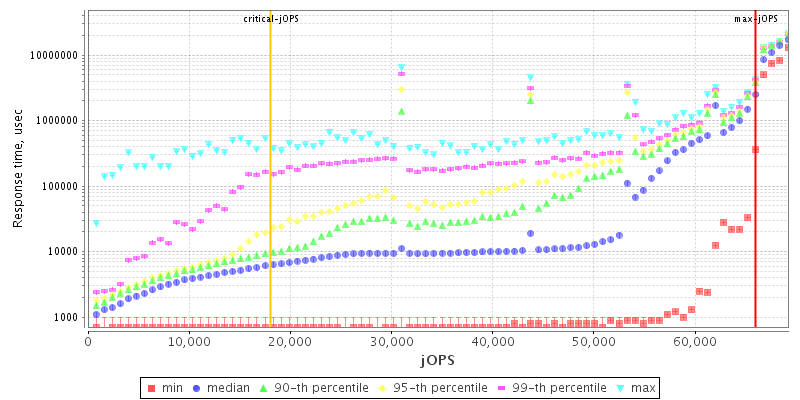

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores32
Total Threads64
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant DL560 Gen8
VendorHewlett-Packard Company
Vendor URLhttp://hp.com/
AvailableDec-2012
ModelHP ProLiant DL560 Gen8
Form Factor2U
CPU NameIntel Xeon E5-4650
CPU CharacteristicsTurbo Boost Technology up to 3.30 GHz
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System32
Cores Per Chip8
Threads Per System64
Threads Per Core2
VersionNone
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D per core
Tertiary Cache20 MB I+D on chip per chip
Other CacheNone
Disk2 x 400 GB SSD SAS (691866-B21)
File SystemEXT4
Memory Amount (GB)256
# and size of DIMM(s)32 x 8192 MB
Memory Details2Rx4 PC3-12800R-11, ECC
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs (embedded)
Power Supply Quantity and Rating (W)1 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 6.3 (Santiago)
VendorRedhat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.3 (Santiago)-2.6.32-279.el6.x86_64
AvailableJun-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u17
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_17
AvailableMar-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line start affinity -XX:+UseLargePages -XX:-UseBiasedLocking -XX:+UseParallelOldGC -Xmx36G -Xms36G -Xmn24G -XX:+PrintGCDetails
Tuning
  • Affinity masks: one backend one node
    • numactl --membind=$(($gnum - 1)) --cpunodebind=$(($gnum - 1))
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 65211 66007 66802 67597 68392
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 5964 13917 15507 28303 52586 18049
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 795 - / 795 - / 795 - / 795 - / 795 - / 795
1000us 2386 / 3181 - / 795 - / 795 - / 795 - / 795 - / 795
5000us 51692 / 52487 14315 / 15110 8748 / 9543 7953 / 8748 3181 / 3976 - / 795
10000us 54078 / 54873 40558 / 31015 18291 / 19086 14315 / 15110 5567 / 6362 - / 795
20000us 54873 / 55668 52487 / 53282 23858 / 24653 17496 / 18291 7953 / 8748 - / 795
50000us 56463 / 57259 52487 / 53282 44535 / 31015 34991 / 26244 13519 / 14315 795 / 1591
100000us 57259 / 58054 54873 / 53282 48511 / 31015 41354 / 31015 15110 / 15905 795 / 1591
200000us 58849 / 59644 56463 / 57259 52487 / 31015 48511 / 31015 38172 / 21472 7157 / 3976
500000us 63621 / 62030 59644 / 60440 57259 / 31015 57259 / 31015 55668 / 31015 46920 / 14315
1000000us 65211 / 66007 64416 / 62030 62826 / 31015 60440 / 31015 60440 / 31015 57259 / 31015

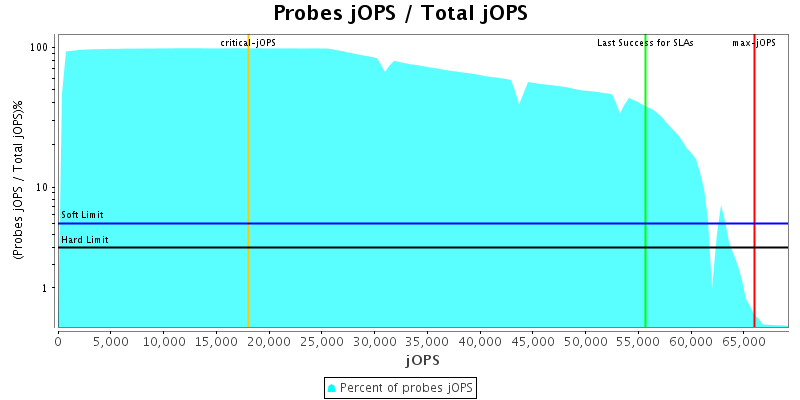

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

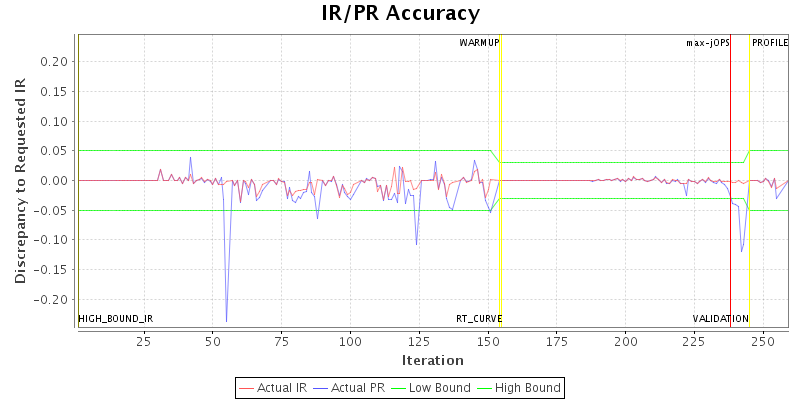

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 256
specjbb.comm.connect.pool.max 256 256
specjbb.comm.connect.pool.min 1 1
specjbb.comm.connect.timeouts.connect 60000 60000
specjbb.comm.connect.timeouts.read 60000 60000
specjbb.comm.connect.timeouts.write 60000 60000
specjbb.controller.handshake.period 5000 5000
specjbb.controller.handshake.timeout 600000 600000
specjbb.controller.host localhost localhost
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.port 24000 24000
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 64 64
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 10000
specjbb.heartbeat.threshold 100000 100000
specjbb.mapreducer.pool.size 64 64
specjbb.run.datafile.dir . .
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 79526 IR
High-bound (settled) is 69053 IR
