Hewlett-Packard Company HP ProLiant ML350p Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: March 15, 2013
SPEC license #: 3 Hardware Availability: Dec-2012 Software Availability: Mar-2013 Publication: Apr 08, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

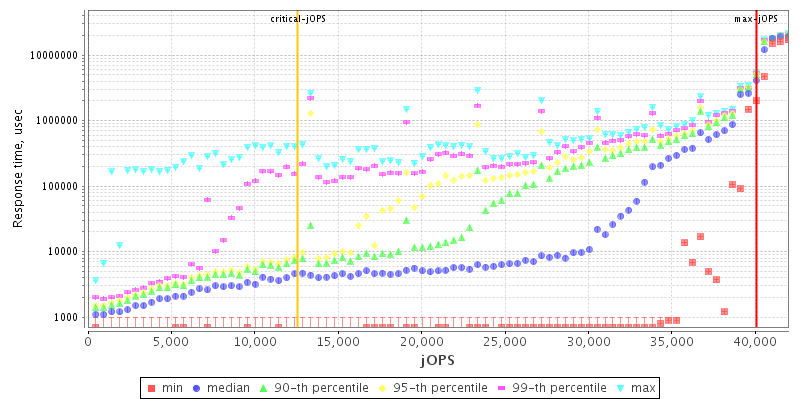

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads32
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant ML350p Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableDec-2012
ModelHP ProLiant ML350p Gen8
Form Factor4U
CPU NameIntel Xeon E5-2690
CPU CharacteristicsTurbo Boost Technology up to 3.80 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System32
Threads Per Core2
VersionNone
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D per core
Secondary Cache256 KB I+D per core
Tertiary Cache20 MB I+D on chip per chip
Other CacheNone
Disk2 x 200 GB SSD SAS (690825-B21)
File SystemEXT4
Memory Amount (GB)128
# and size of DIMM(s)16 x 8192 MB
Memory Details2Rx4 PC3-12800R-11, ECC
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs (embedded)
Power Supply Quantity and Rating (W)1 x 460
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 6.3 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.3 (Santiago)-2.6.32-279.el6.x86_64 x86_64
AvailableJun-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u15
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_15
AvailableFeb-2013
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • SATA AHCI Support set to Enabled
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line java -XX:+UseLargePages -XX:-UseBiasedLocking -XX:+UseParallelOldGC -Xms24G -Xmx24G -Xmn18G -XX:+PrintGCDetails
Tuning
  • Affinity masks
    • numactl -C 0,1,2,3,4,5,6,7,16,17,18,19,20,21,22,23
    • numactl -C 8,9,10,11,12,13,14,15,24,25,26,27,28,29,30,31
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 39570 40047 40524 41000 41477
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 6912 8676 9296 19289 29142 12566
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 477 - / 477 - / 477 - / 477 - / 477 - / 477
1000us 5721 / 4291 - / 477 - / 477 - / 477 - / 477 - / 477
5000us 32419 / 32896 20500 / 16686 10012 / 9535 9058 / 8581 5721 / 6198 477 / 953
10000us 33372 / 33849 29558 / 30035 18593 / 13349 15733 / 13349 6674 / 7151 953 / 1430
20000us 33849 / 34326 30989 / 30512 22407 / 13349 17163 / 13349 8105 / 7151 1907 / 1430
50000us 33849 / 34326 32419 / 32896 23837 / 23361 19547 / 13349 9058 / 7151 1907 / 1430
100000us 34326 / 34803 32896 / 33372 25744 / 23361 20023 / 13349 9058 / 9535 1907 / 1430
200000us 36233 / 36710 33849 / 34326 29082 / 27175 27651 / 13349 24791 / 12872 14302 / 5721
500000us 38617 / 39093 36233 / 36710 34803 / 33849 34326 / 13349 31465 / 13349 29082 / 13349
1000000us 39093 / 39570 38617 / 39093 37663 / 36710 37663 / 13349 37186 / 13349 36233 / 13349
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 256
specjbb.comm.connect.pool.max 256 256
specjbb.comm.connect.pool.min 1 1
specjbb.comm.connect.timeouts.connect 60000 60000
specjbb.comm.connect.timeouts.read 60000 60000
specjbb.comm.connect.timeouts.write 60000 60000
specjbb.controller.handshake.period 5000 5000
specjbb.controller.handshake.timeout 600000 600000
specjbb.controller.host localhost localhost
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.port 24000 24000
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 32 16
specjbb.group.count 1 2
specjbb.heartbeat.period 10000 10000
specjbb.heartbeat.threshold 100000 100000
specjbb.mapreducer.pool.size 32 32
specjbb.run.datafile.dir . /binary_log_files
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 47675 IR
High-bound (settled) is 41903 IR
