SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Oracle Corporation Sun Server X3-2 CODE DEFECT (CD) RESULT
Tested by: Oracle Corporation Test Sponsor: Oracle Corporation Test location: Hillsboro, OR Test date: Mar 12, 2013
SPEC license #: 6 Hardware Availability: Apr-2012 Software Availability: Mar-2013 Publication: Apr 17, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads32
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSun Server X3-2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableApr-2012
ModelSun Server X3-2
Form Factor1RU rackmount server
CPU NameIntel Xeon E5-2690
CPU CharacteristicsIntel Turbo Boost Technology up to 3.80 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System32
Threads Per Core2
VersionNone
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache20 MB I+D on chip per chip
Other CacheNone
Disk8x 300 GB 10000 RPM SAS-2 disk drive
File SystemZFS
Memory Amount (GB)128
# and size of DIMM(s)16 x 8 GB
Memory Details8GB 2Rx4 PC3L-12800R ECC CL11; all slots populated
# and type of Network Interface Cards (NICs)Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)2x 600W AC power supply
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameOracle Solaris 11.1 SRU 4.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.1 SRU 4.2
AvailableOct-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u17
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/technetwork/java
VersionJava HotSpot(TM) 64-bit Server VM, version 1.7.0_17
AvailableMar-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning Run in processor set #1.
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx30g -Xms30g -Xmn16g -XX:+UseParallelOldGC -XX:+UseCompressedOops -XX:-UseBiasedLocking -XX:+UseLargePages -XX:LargePageSizeInBytes=2m
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 41477 41954 42431 42907 43384
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 7389 7866 8819 23996 33900 13305
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 477 - / 477 - / 477 - / 477 - / 477 - / 477
1000us 1430 / 1907 - / 477 - / 477 - / 477 - / 477 - / 477
5000us 32419 / 32896 13349 / 13826 8105 / 8581 7628 / 8105 5721 / 6198 1430 / 477
10000us 34326 / 34803 30035 / 30512 16686 / 16209 12395 / 12872 7151 / 7628 1430 / 477
20000us 34803 / 35279 31465 / 31942 22884 / 18593 13349 / 13826 7151 / 7628 1430 / 477
50000us 35279 / 35756 32419 / 32896 24314 / 18593 20500 / 15256 8105 / 7628 1430 / 477
100000us 35756 / 36233 34326 / 34803 27651 / 18593 23361 / 17640 8581 / 9058 1430 / 477
200000us 37186 / 37663 35279 / 35756 31942 / 18593 29082 / 18593 27651 / 16686 8105 / 7628
500000us 40047 / 40524 37663 / 38140 36233 / 36710 36233 / 18593 35756 / 18593 34803 / 7628
1000000us 40524 / 41000 40524 / 41000 39570 / 38617 39093 / 18593 39093 / 18593 37663 / 18593

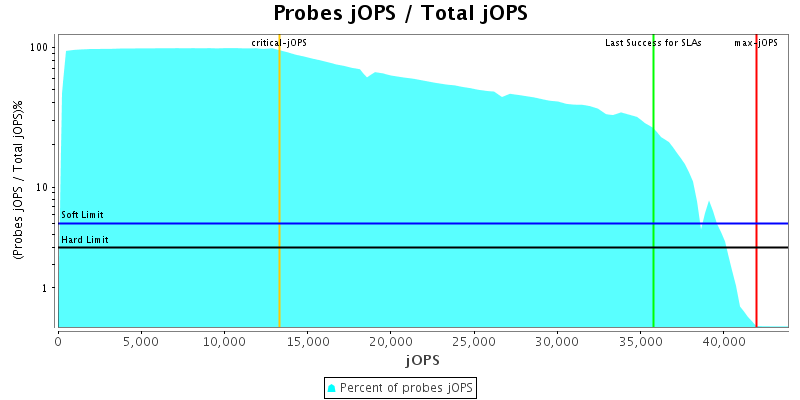

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

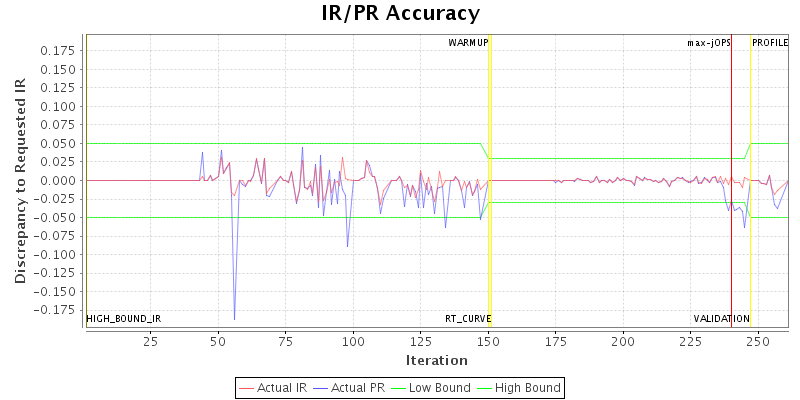

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 16 16
specjbb.group.count 1 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 47675 IR
High-bound (settled) is 43191 IR
