Cisco Systems UCS C220 M3 CODE DEFECT (CD) RESULT
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: April 1, 2013
SPEC license #: 9019 Hardware Availability: Mar-2012 Software Availability: Jan-2013 Publication: Apr 17, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLwww.cisco.com
System SourceSingle Supplier
System DesignationRack Server
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads32
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C220 M3
VendorCisco Systems
Vendor URLwww.cisco.com
AvailableMar-2012
ModelCisco UCS C220 M3
Form Factor1U
CPU NameIntel Xeon E5-2690
CPU Characteristics8-core, 2.90GHz (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System32
Threads Per Core2
VersionNone
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D per core
Tertiary Cache20 MB (I+D) on chip per chip
Other CacheNone
Disk2 x 146 GB 15 K SAS
File Systemext4
Memory Amount (GB)128
# and size of DIMM(s)16 x 8 GB
Memory Details8GB 2Rx4 PC3-12800R-11, ECC (All Memory Slots Populated)
# and type of Network Interface Cards (NICs)UCS VIC P81E
Power Supply Quantity and Rating (W)2 x 650W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat, Inc.
Vendor URLhttp:/redhat.com/
VersionRed Hat Enterprise Linux Server release 6.2 (Santiago)
AvailableJun-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u11
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_11
AvailableJan-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning OS Tuning
  • Number of huge pages were defined = 56500
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -showversion -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseBiasedLocking -XX:+UseParallelOldGC -XX:+AlwaysPreTouch -Xms31G -Xmx31G -Xmn29G
Tuning Each Backend was affinitized to each chip
  • numactl �N 0 $JAVA $JAVA_OPTS_BE -jar specjbb2013.jar -m BACKEND -G=$GROUPID -J=$JVMID
  • numactl �N 1 $JAVA $JAVA_OPTS_BE -jar specjbb2013.jar -m BACKEND -G=$GROUPID -J=$JVMID
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 41477 41954 42431 42907 43384
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 9773 11680 15852 23465 29198 16545
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 477 - / 477 - / 477 - / 477 - / 477 - / 477
1000us 2860 / 3337 - / 477 - / 477 - / 477 - / 477 - / 477
5000us 33372 / 33849 20977 / 18116 8105 / 8581 7628 / 8105 6198 / 6674 - / 477
10000us 34803 / 35279 30512 / 30989 19547 / 20023 16209 / 16686 10012 / 9535 - / 477
20000us 34803 / 35279 32896 / 33372 26698 / 23361 22407 / 16686 11442 / 10965 3337 / 1907
50000us 35756 / 36233 33372 / 33849 27651 / 25744 23837 / 16686 11442 / 11919 3337 / 1907
100000us 36233 / 36710 34803 / 35279 28605 / 25744 26698 / 23361 17163 / 11919 3337 / 1907
200000us 37186 / 37663 35756 / 36233 31465 / 28128 29558 / 25744 26698 / 11919 14779 / 2860
500000us 40524 / 40047 37663 / 38140 36233 / 33849 35756 / 30035 34803 / 11919 29558 / 11919
1000000us 40524 / 41000 40524 / 39570 39093 / 38140 39093 / 35279 37186 / 11919 36233 / 11919
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

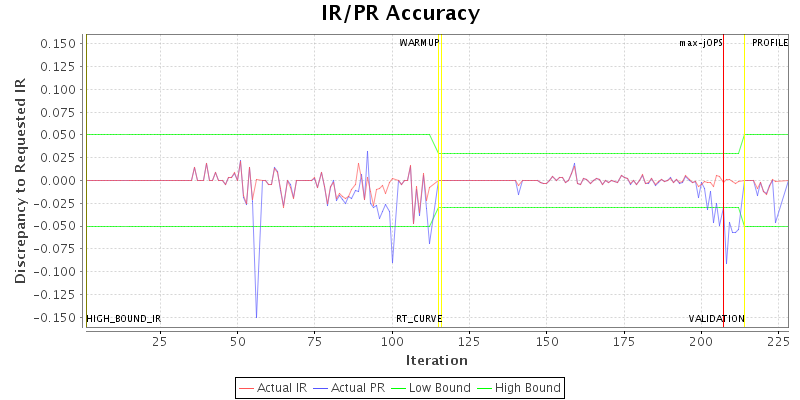

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 32 24
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 47675 IR
High-bound (settled) is 43461 IR
