Hewlett-Packard Company HP ProLiant ML350p Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: April 8, 2013
SPEC license #: 3 Hardware Availability: Dec-2012 Software Availability: Mar-2013 Publication: May 15, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

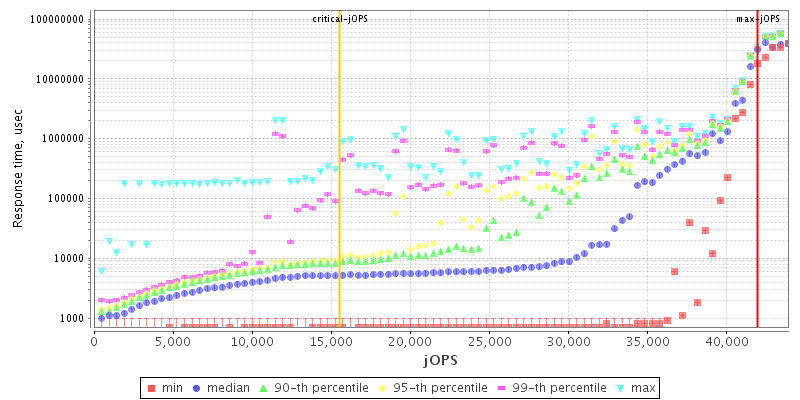

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads32
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant ML350p Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableDec-2012
ModelHP ProLiant ML350p Gen8
Form Factor4U
CPU NameIntel Xeon E5-2690
CPU CharacteristicsTurbo Boost Technology up to 3.80 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System32
Threads Per Core2
VersionNone
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache20 MB I+D on chip per chip
Other CacheNone
Disk2 x 200 GB SSD SAS (690825-B21)
File Systemext4
Memory Amount (GB)128
# and size of DIMM(s)16 x 8192 MB
Memory Details2Rx4 PC3-12800R-11, ECC
# and type of Network Interface Cards (NICs)4 x Broadcom Corporation NetXtreme BCM5719 Gigabit Ethernet PCIe
Power Supply Quantity and Rating (W)1 x 460
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 6.4 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.4 (Santiago)-2.6.32-358.el6.x86_64 x86_64
AvailableFeb-2013
Bitness64
Notes
  • SELinux disabled at OS boot up
  • installed tuned-0.2.19-12.el6.noarch.rpm
Java Virtual Machine jvm_1
NameOracle Java SE 7u17
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.7.0_17
AvailableMar-2013
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -showversion -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseBiasedLocking -XX:+UseParallelOldGC -XX:+AlwaysPreTouch -Xms31G -Xmx31G -Xmn29G
Tuning
  • numactl used to affinitize each Backend JVM to a single memory node, eg
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g -XX:+UseLargePages
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 41477 41954 42431 42907 43384
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 10250 11759 13984 21130 25446 15540
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 477 - / 477 - / 477 - / 477 - / 477 - / 477
1000us 2860 / 3337 477 / 953 - / 477 - / 477 - / 477 - / 477
5000us 32419 / 32896 12872 / 13349 8105 / 8581 7628 / 8105 6198 / 6674 - / 477
10000us 33849 / 34326 30035 / 30512 18593 / 19070 15256 / 15733 10488 / 10012 477 / 953
20000us 34326 / 34803 32419 / 32896 24314 / 24791 21454 / 19070 12395 / 10965 3337 / 1907
50000us 35279 / 35756 33849 / 34326 26698 / 27175 24314 / 19070 12395 / 11442 3337 / 1907
100000us 35756 / 36233 33849 / 34326 30035 / 27175 25744 / 19547 15256 / 11442 3337 / 1907
200000us 37186 / 37663 35279 / 35756 30512 / 30989 30512 / 27175 25744 / 11442 12872 / 11442
500000us 39570 / 39093 37186 / 37663 35279 / 34326 35279 / 31465 33849 / 11442 30512 / 11442
1000000us 40047 / 40524 39570 / 39093 38617 / 39093 38617 / 31465 38140 / 11442 36710 / 11442
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

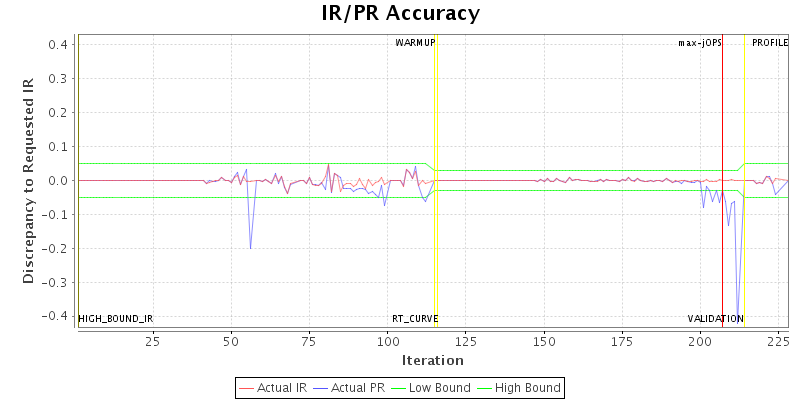

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 32 24
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 32 32
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 47675 IR
High-bound (settled) is 42844 IR
