Fujitsu SPARC M10-4S CODE DEFECT (CD) RESULT
Tested by: Fujitsu Test Sponsor: Fujitsu Test location: Kawasaki, Japan Test date: May 4, 2013
SPEC license #: 19 Hardware Availability: Mar-2013 Software Availability: Apr-2013 Publication: Jul 09, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

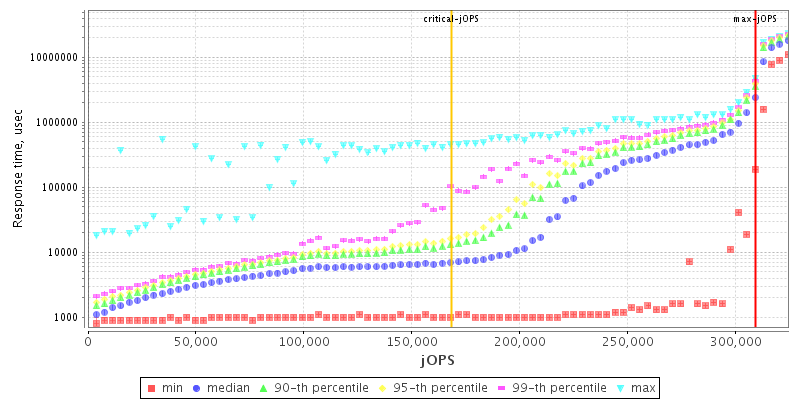

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips16
Total Cores256
Total Threads512
Total Memory Amount (GB)4352
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSPARC M10-4S
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
AvailableMar-2013
ModelSPARC M10-4S
Form Factor4 x 4RU rackmount server
CPU NameSPARC64 X
CPU Characteristics16 Core, 3.0GHz, 24MB L2 Cache
Number of Systems1
Nodes Per System1
Chips Per System16
Cores Per System256
Cores Per Chip16
Threads Per System512
Threads Per Core2
VersionNone
CPU Frequency (MHz)3000
Primary Cache64 KB I + 64 KB D on chip per core
Secondary Cache24 MB I+D on chip per chip
Tertiary CacheNone
Other CacheNone
Disk1 x 600 GB SAS, 10025 RPM SAS disk drive
File SystemZFS
Memory Amount (GB)4352
# and size of DIMM(s)16 x 32 GB + 240 x 16 GB
Memory Details32GB 4Rx4 PC3L-10600R-CL9 ECC; All slots populated for CPU#0, 16GB 2Rx8 PC3L-12800R-CL11 ECC; All slots populated for CPU#1-15
# and type of Network Interface Cards (NICs)16 x 10/100/1000 NICs (on board)
Power Supply Quantity and Rating (W)8 x 2500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameOracle Solaris 11.1 SRU 6.4
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.1 SRU 6.4
AvailableApr-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u17
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_17
AvailableMar-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning /etc/system parameters
lpg_alloc_prefer=1
Indicates that extra effort should be taken to ensure that pages are created in the nearby lgroup (NUMA location).
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Djava.awt.headless=true -Xmx2000m -Xms2000m -Xmn1200m -XX:+UseStringCache -XX:LargePageSizeInBytes=4m -XX:MaxInlineSize=200 -XX:FreqInlineSize=2000 -XX:InlineSmallCode=2000 -XX:LoopUnrollLimit=30 -verbose:gc -XX:ParallelGCThreads=4
Tuning Run in processor set #4.
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -verbose:gc -XX:+PrintGCDetails -XX:+UseStringCache -XX:+AlwaysPreTouch -XX:LargePageSizeInBytes=256m -XX:AllocatePrefetchLines=8 -XX:+UnlockDiagnosticVMOptions -XX:ScavengeRootsInCode=1 -XX:NmethodSweepFraction=4 -XX:Tier3BackEdgeThreshold=7000 -XX:InlineSmallCode=2000 -XX:MaxInlineSize=300 -XX:MultiArrayExpandLimit=30 -XX:MaxInlineLevel=30 -XX:MinInliningThreshold=100 -XX:LoopUnrollLimit=30 -XX:FreqInlineSize=2000 -Xms150g -Xmx150g -Xmn140g -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=32 -XX:SurvivorRatio=100 -XX:MaxTenuringThreshold=1
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
  • $GROUPID < $GROUP_COUNT:
    • psrset -c <all virtual processors of physical CPU#$GROUPID-1>
    • psrset -e $GROUPID $JAVA $JAVA_OPTS_BE -jar specjbb2013.jar -m BACKEND -G=$GROUPID -J=$JVMID
  • $GROUPID = $GROUP_COUNT:
    • $JAVA $JAVA_OPTS_BE -jar specjbb2013.jar -m BACKEND -G=$GROUPID -J=$JVMID
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Djava.awt.headless=true -Xmx2000m -Xms2000m -Xmn1200m -XX:+UseStringCache -XX:LargePageSizeInBytes=4m -XX:MaxInlineSize=200 -XX:FreqInlineSize=2000 -XX:InlineSmallCode=2000 -XX:LoopUnrollLimit=30 -verbose:gc -XX:ParallelGCThreads=4
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
  • $GROUPID < $GROUP_COUNT:
    • psrset -c <all virtual processors of physical CPU#$GROUPID-1>
    • psrset -e $GROUPID $JAVA $JAVA_OPTS_TI -jar specjbb2013.jar -m TXINJECTOR -G=$GROUPID -J=$JVMID
  • $GROUPID = $GROUP_COUNT:
    • $JAVA $JAVA_OPTS_TI -jar specjbb2013.jar -m TXINJECTOR -G=$GROUPID -J=$JVMID
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 305122 308936 312750 316564 320379
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 97258 161460 176398 200237 242191 168127
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3814 - / 3814 - / 3814 - / 3814 - / 3814 - / 3814
1000us 7628 / 11442 - / 3814 - / 3814 - / 3814 - / 3814 - / 3814
5000us 209772 / 213586 91537 / 95351 61024 / 64839 53396 / 57210 45768 / 49582 - / 3814
10000us 217400 / 221214 194516 / 198330 137305 / 141119 114421 / 106793 95351 / 99165 - / 3814
20000us 225028 / 228842 209772 / 213586 186887 / 190701 179259 / 183073 137305 / 141119 19070 / 7628
50000us 236470 / 240284 217400 / 221214 202144 / 205958 194516 / 198330 164003 / 156375 76281 / 15256
100000us 244098 / 247912 225028 / 228842 209772 / 213586 209772 / 205958 179259 / 167817 83909 / 15256
200000us 266982 / 270796 244098 / 247912 225028 / 228842 217400 / 221214 202144 / 198330 95351 / 15256
500000us 297494 / 301308 286052 / 289866 259354 / 263168 255540 / 259354 240284 / 244098 183073 / 34326
1000000us 305122 / 308936 301308 / 305122 293680 / 297494 293680 / 297494 289866 / 293680 259354 / 244098
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

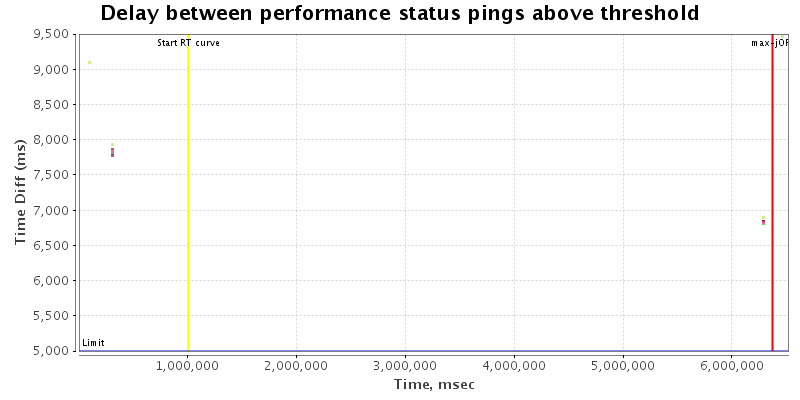

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.group.count 1 16
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 381403 IR
High-bound (settled) is 318102 IR
