SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP ProLiant ML310e Gen8 v2 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Aug 23, 2013
SPEC license #: 3 Hardware Availability: Aug-2013 Software Availability: Aug-2013 Publication: Oct 02, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 1)

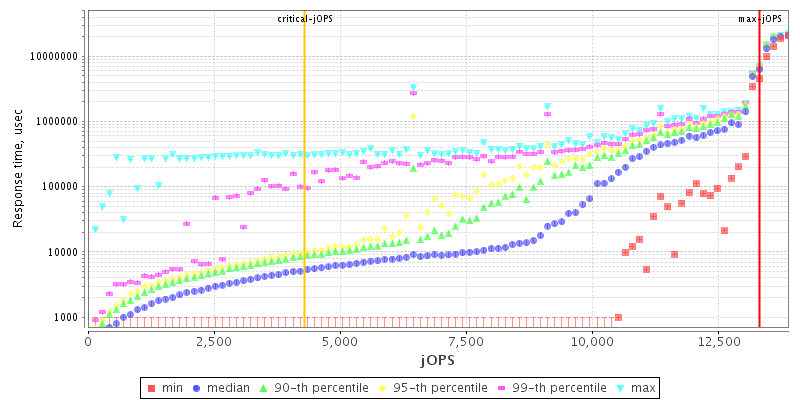

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores4
Total Threads8
Total Memory Amount (GB)32
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP ProLiant ML310e Gen8 v2
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableAug-2013
ModelHP ProLiant ML310e Gen8 v2
Form FactorTower
CPU NameIntel Xeon E3-1270 v3
CPU CharacteristicsTurbo Boost Technology up to 3.90 GHz
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System4
Cores Per Chip4
Threads Per System8
Threads Per Core2
VersionNone
CPU Frequency (MHz)3500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache8 MB I+D on chip per chip
Other CacheNone
Disk1 x 500 GB 7200 RPM SATA (658071-B21)
File Systemext4
Memory Amount (GB)32
# and size of DIMM(s)4 x 8192 MB
Memory Details2Rx4 PC3-12800E-11, ECC
# and type of Network Interface Cards (NICs)1 x 332i Dual Port Gigabit Ethernet Adapter
Power Supply Quantity and Rating (W)1 x 460
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 6.4 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.4 (Santiago)-2.6.32-358.el6.x86_64
AvailableFeb-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u21
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.7.0_21
AvailableMar-2013
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • SATA AHCI Support set to Enabled
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning
  • SELinux disabled at kernel boot up
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line None
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx28G -Xms28G -Xmn22G -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx1875m -Xms1875m -Xmn1200m
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 13175 13315 13455 13596 13736
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 2429 2747 3864 5536 10241 4295
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 420 / 561 140 / 280 - / 140 - / 140 - / 140 - / 140
1000us 1822 / 1962 701 / 841 280 / 420 280 / 420 140 / 280 - / 140
5000us 8830 / 8970 4065 / 4205 2523 / 2663 2243 / 2383 1542 / 1682 - / 140
10000us 9671 / 9811 7569 / 7709 4765 / 4906 4345 / 4485 2663 / 1962 - / 140
20000us 9951 / 10092 8970 / 9110 7148 / 6447 6167 / 5887 2663 / 1962 - / 140
50000us 10232 / 10372 9671 / 9811 7849 / 6447 7148 / 6447 3084 / 2523 701 / 420
100000us 10512 / 10652 9951 / 10092 8830 / 6447 7709 / 6447 4345 / 3504 981 / 561
200000us 10932 / 11073 10652 / 10792 9811 / 9110 8970 / 6447 5606 / 5466 1402 / 561
500000us 12614 / 12755 11633 / 11773 10932 / 11073 10652 / 6447 10512 / 6447 10092 / 6447
1000000us 13035 / 13175 12895 / 13035 12474 / 12614 12334 / 6447 12054 / 6447 11493 / 6447
Number of probes
Probes jOPS / Total jOPS

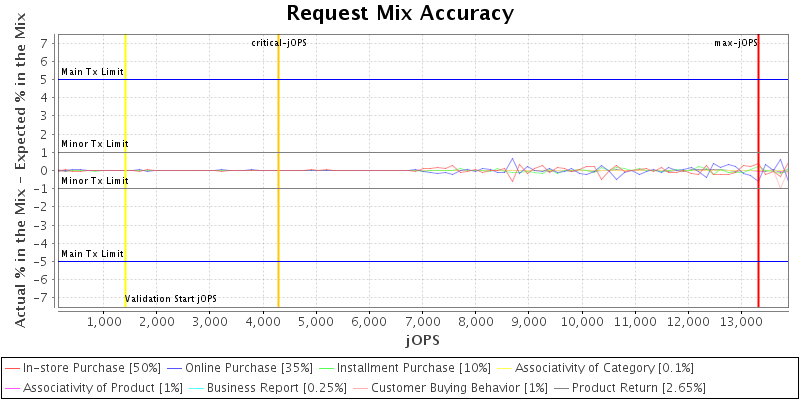

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

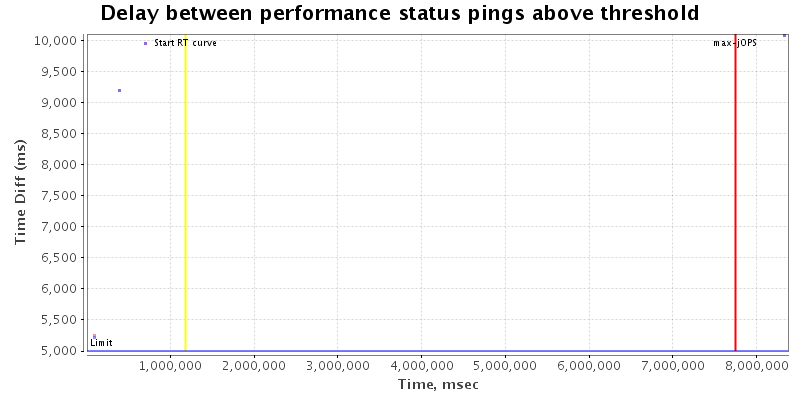

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

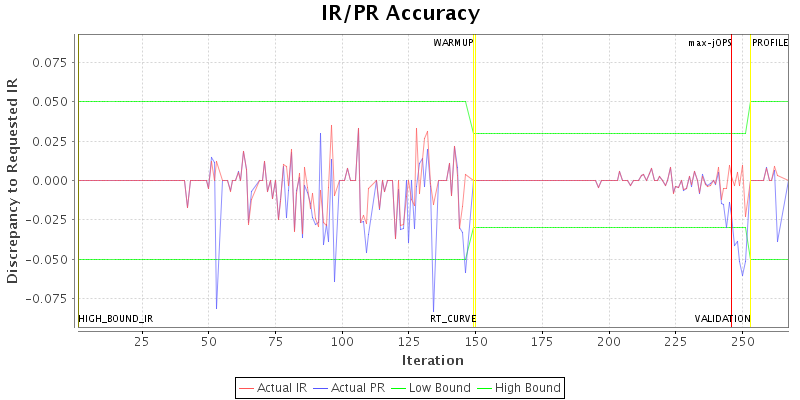

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 14016 IR
High-bound (settled) is 13913 IR
