SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Cisco UCS B200 M3 CODE DEFECT (CD) RESULT
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: September 3,2013
SPEC license #: 9019 Hardware Availability: September-2013 Software Availability: September-2013 Publication: Oct 04, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)

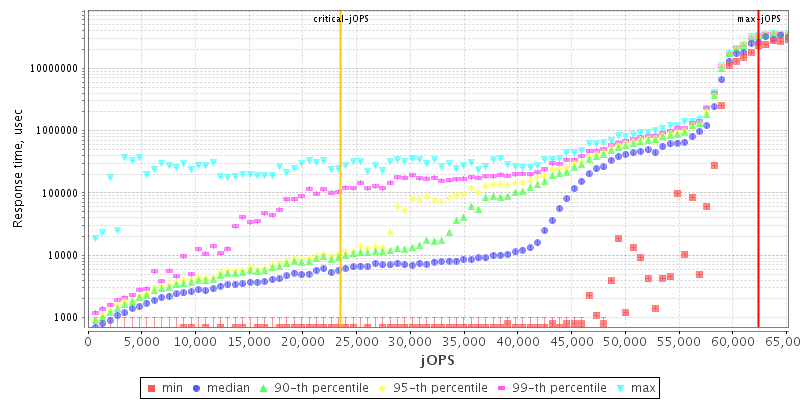

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores24
Total Threads48
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCisco UCS B200 M3
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableSeptember-2013
ModelCisco UCS B200 M3
Form Factor1U
CPU NameIntel Xeon E5-2697 v2
CPU Characteristics12-Core, 2.70GHz (Turbo Boost Technology up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System24
Cores Per Chip12
Threads Per System48
Threads Per Core2
VersionNone
CPU Frequency (MHz)2700
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache30MB (I+D) on chip per chip
Other CacheNone
Disk1x 100GB SSD
File Systemext4
Memory Amount (GB)128
# and size of DIMM(s)16 x 8192MB
Memory Details2RX4 PC3-14900R-13-12-E2, running 1866MHz (A0,A1,B0,B1,C0,C1,D0,D1,E0,E1,F0,F1,G0,G1,H0,H1 memory slots populated)
# and type of Network Interface Cards (NICs)1 X 10 Gbit NIC
Power Supply Quantity and Rating (W)Four 2500W, 208V single-phase, hot-swappable, redundant power supplies
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.4 (Santiago)
AvailableFeb-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameJava HotSpot(TM) 64-Bit Server VM on Linux, version 1.7.0_40
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM on Linux, version 1.7.0_40
AvailableSeptember-2013
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory RAS Configuration set to Maximum Performance
  • LowVoltage DDR Mode set to Performance
  • DRAM Refresh rate set to 1x
  • Processor C6 Report set to disabled
  • Processor C1E set to disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:-UseBiasedLocking -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:-PrintCompilation -Xms29g -Xmx29g -Xmn27g -XX:+UseParallelOldGC -XX:ParallelGCThreads=24 -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=90 -XX:-UseAdaptiveSizePolicy -XX:+AggressiveOpts
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 61708 62393 63079 63765 64450
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 9942 17484 21597 40110 47652 23505
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 686 - / 686 - / 686 - / 686 - / 686 - / 686
1000us 5485 / 6171 2057 / 2743 1371 / 2057 686 / 1371 - / 686 - / 686
5000us 41824 / 42510 20569 / 19198 12342 / 13027 11656 / 12342 9599 / 6171 - / 686
10000us 43881 / 44567 38396 / 39081 23312 / 23997 22626 / 21940 9599 / 10285 - / 686
20000us 44567 / 45252 41824 / 42510 32911 / 33596 27426 / 28111 13027 / 13713 686 / 1371
50000us 45938 / 46624 43195 / 43881 34968 / 35653 28111 / 28797 17141 / 17827 2743 / 2057
100000us 47995 / 47309 44567 / 45252 39081 / 39767 34968 / 35653 22626 / 20569 2743 / 2057
200000us 52794 / 49366 45938 / 46624 43195 / 43881 42510 / 43195 39767 / 40453 17141 / 3428
500000us 56222 / 56908 52794 / 53480 48680 / 49366 47995 / 48680 47309 / 47995 45938 / 46624
1000000us 57594 / 58279 56908 / 57594 55537 / 56222 55537 / 56222 54166 / 54851 52794 / 53480
Number of probes
Probes jOPS / Total jOPS

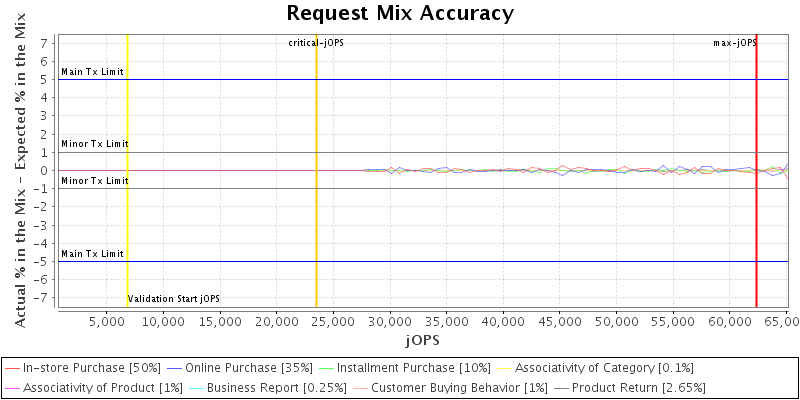

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

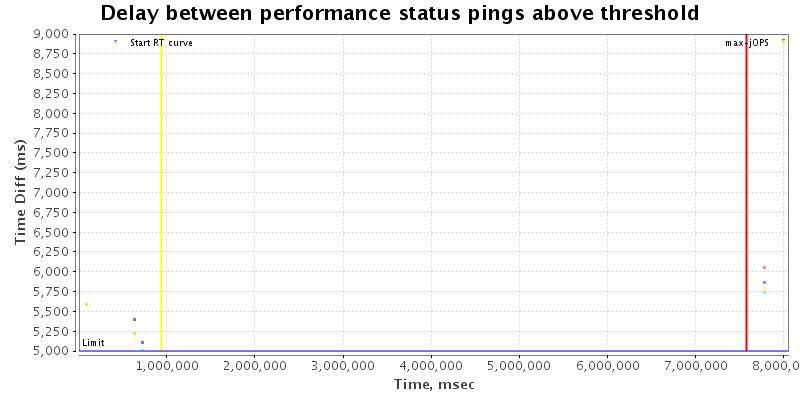

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

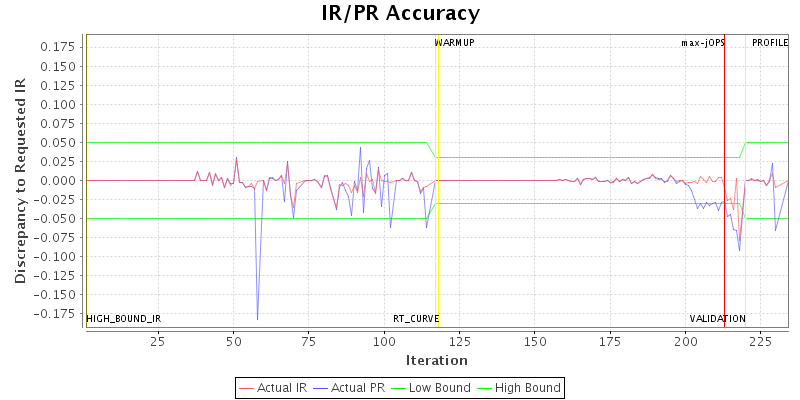

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.customerDriver.threads 64 128
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 68564 IR
High-bound (settled) is 60868 IR
