Hewlett-Packard Company HP ProLiant ML350p Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Sep 28, 2013
SPEC license #: 3 Hardware Availability: Sep-2013 Software Availability: Sep-2013 Publication: Oct 16, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

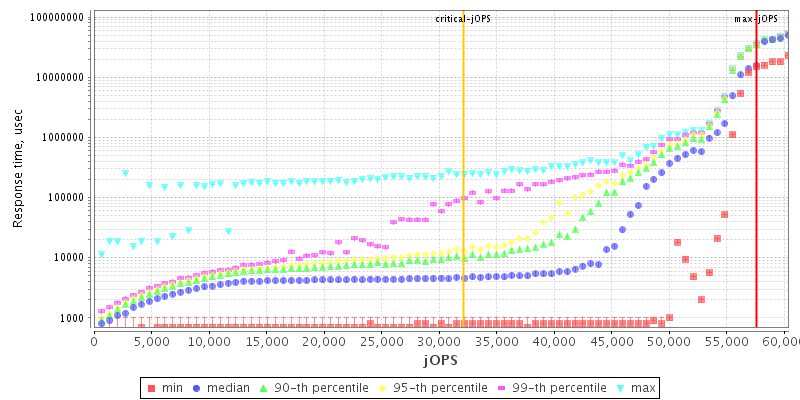

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores24
Total Threads48
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant ML350p Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableSep-2013
ModelHP ProLiant ML350p Gen8
Form Factor4U
CPU NameIntel Xeon E5-2697v2
CPU CharacteristicsIntel Turbo Boost up to 3.50 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System24
Cores Per Chip12
Threads Per System48
Threads Per Core2
VersionP72 09/08/2013
CPU Frequency (MHz)2700
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache30 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 400 GB SAS SSD
File Systemext4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16384 MB
Memory Details2Rx4 PC3-14900R ECC
# and type of Network Interface Cards (NICs)1 x NC361i Dual Port Gigabit Ethernet Adapter
Power Supply Quantity and Rating (W)2 x 750
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.4 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.4 (Santiago)-2.6.32-358.el6.x86_64 x86_64
AvailableFeb-2013
Bitness64
Notes
  • SE Linux = Disabled
  • Installed tuned-0.2.19-12.el6.noarch.rpm
  • Installed irqbalance-0.55-34.el6.x86_64.rpm
Java Virtual Machine jvm_1
NameOracle Java SE 7u40
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.7.0_40
AvailableSep-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • DIMM Voltage Preference = Optimized For Performance
  • Memory Power Savings Mode = Maximum Performance
  • Thermal Configuration = Maximum Cooling
  • Processor Power And Utilization Monitoring = Disabled
  • Memory Refresh Rate = 1x Refresh
  • ACPI SLIT Table = Enabled
  • A7 Memory Address Mode = Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes Stopped unnecessary services (see SUT OS notes)
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -showversion -Xmn100g -Xms110g -Xmx110g -XX:+UseLargePages -XX:-UseBiasedLocking -XX:+UseParallelOldGC -XX:+AlwaysPreTouch
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g -XX:+UseLargePages
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 56908 57594 58279 58965 59651
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 17484 29140 33939 40795 48337 32103
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 686 - / 686 - / 686 - / 686 - / 686 - / 686
1000us 3428 / 4114 1371 / 2057 686 / 1371 686 / 1371 - / 686 - / 686
5000us 45938 / 46624 37710 / 36339 10285 / 10970 9599 / 10285 8228 / 8913 - / 686
10000us 47309 / 47995 43881 / 44567 32225 / 31539 25369 / 26054 17827 / 17141 - / 686
20000us 47309 / 47995 45252 / 45938 39767 / 40453 36339 / 37025 25369 / 22626 5485 / 2743
50000us 49366 / 50052 45938 / 46624 42510 / 43195 39767 / 40453 28797 / 29483 11656 / 2743
100000us 49366 / 50052 47309 / 47995 43881 / 44567 41138 / 41824 34968 / 32911 11656 / 2743
200000us 50052 / 50737 47995 / 48680 45938 / 46624 45252 / 45938 40453 / 41138 24683 / 2743
500000us 53480 / 54166 50737 / 51423 48680 / 49366 48680 / 49366 47995 / 48680 46624 / 47309
1000000us 54851 / 55537 53480 / 54166 52794 / 53480 51423 / 52109 50737 / 51423 49366 / 50052

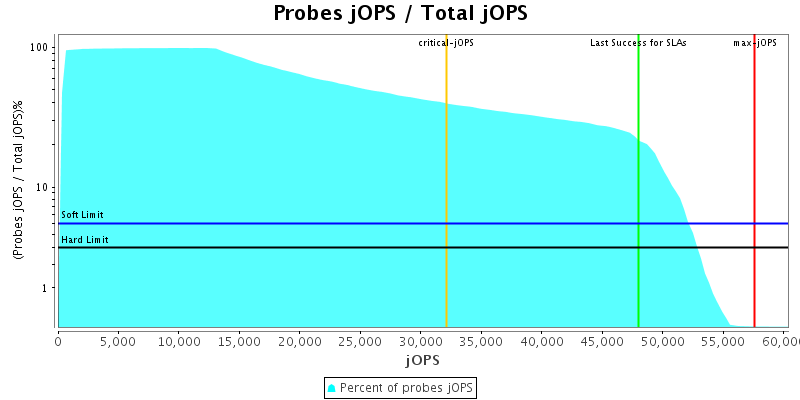

Probes jOPS / Total jOPS

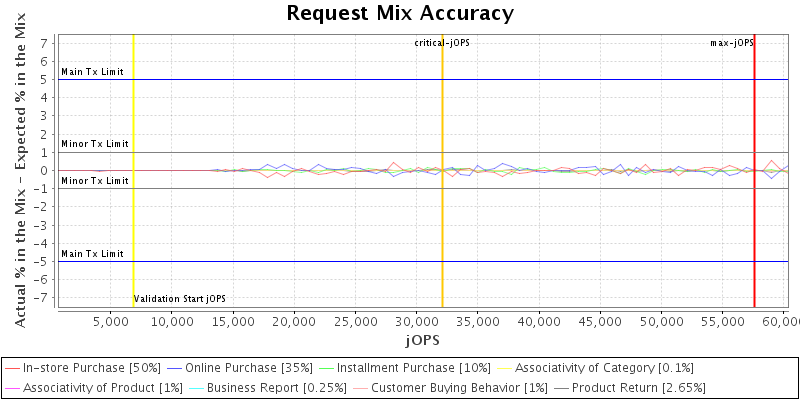

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

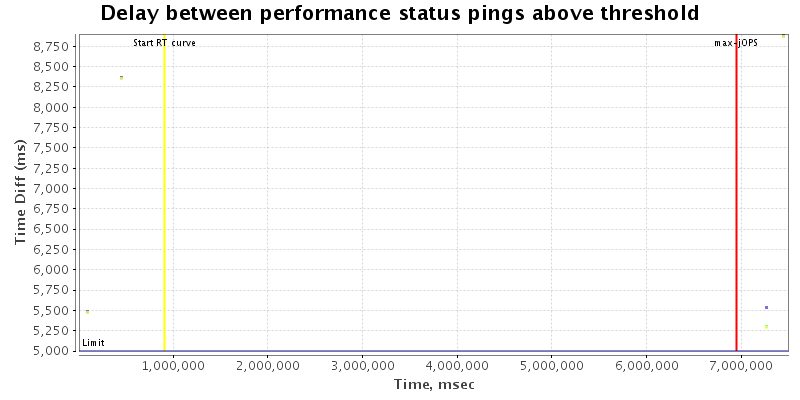

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 68564 IR
High-bound (settled) is 58202 IR
