SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP ProLiant BL460c Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Sep 30, 2013
SPEC license #: 3 Hardware Availability: Sep-2013 Software Availability: Sep-2013 Publication: Oct 16, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores24
Total Threads48
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP ProLiant BL460c Gen8
VendorHewlett-Packard Company
Vendor URLhttp://hp.com/
AvailableSep-2013
ModelHP ProLiant BL460c Gen8
Form FactorServer Blade
CPU NameIntel Xeon E5-2697v2
CPU CharacteristicsTurbo Boost Technology up to 3.50 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System24
Cores Per Chip12
Threads Per System48
Threads Per Core2
VersionI31 09/08/2013
CPU Frequency (MHz)2700
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache30 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 300 GB SSD SAS
File Systemext4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16384 MB
Memory Details2Rx4 PC3-14900R ECC
# and type of Network Interface Cards (NICs)1 x 554FLB Dual Port 10 Gigabit FlexFabric Adapter
Power Supply Quantity and Rating (W)3 x 2250
Other HardwareNone
Cabinet/Housing/EnclosureHP c7000 Enclosure
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.4 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.4 (Santiago)-2.6.32-358.el6.x86_64 x86_64
AvailableFeb-2013
Bitness64
Notes
  • SE Linux = Disabled
  • Installed tuned-0.2.19-12.el6.noarch.rpm
  • Installed irqbalance-0.55-34.el6.x86_64.rpm
Java Virtual Machine jvm_1
NameOracle Java SE 7u40
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.7.0_40
AvailableSep-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • DIMM Voltage Preference = Optimized For Performance
  • Memory Power Savings Mode = Maximum Performance
  • Thermal Configuration = Maximum Cooling
  • Processor Power And Utilization Monitoring = Disabled
  • Memory Refresh Rate = 1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -showversion -Xmn100g -Xms110g -Xmx110g -XX:+UseLargePages -XX:-UseBiasedLocking -XX:+UseParallelOldGC -XX:+AlwaysPreTouch
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn3550m -Xms4g -Xmx4g
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 55780 56367 56955 57542 58129
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 17908 23780 31413 38459 47853 30078
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 587 - / 587 - / 587 - / 587 - / 587 - / 587
1000us 4110 / 4697 1761 / 2349 1174 / 1761 587 / 1174 - / 587 - / 587
5000us 45798 / 46386 32881 / 33468 11156 / 11743 10569 / 11156 9395 / 9982 587 / 1174
10000us 46973 / 47560 42276 / 42863 28184 / 28771 23486 / 24074 17615 / 18202 1761 / 2349
20000us 47560 / 48147 45211 / 45798 38753 / 39340 36404 / 35817 22899 / 18202 7633 / 2936
50000us 48147 / 48734 45798 / 46386 41688 / 42276 38165 / 38753 25248 / 22312 7633 / 2936
100000us 48734 / 49321 46973 / 47560 44037 / 44624 41101 / 41688 31707 / 31119 7633 / 2936
200000us 49909 / 50496 48147 / 48734 45798 / 46386 44624 / 45211 38165 / 38753 27009 / 2936
500000us 52844 / 53432 51083 / 51670 49321 / 49909 48734 / 49321 47560 / 48147 46973 / 46386
1000000us 54019 / 54606 53432 / 54019 52844 / 53432 52257 / 52844 51670 / 52257 49321 / 49909

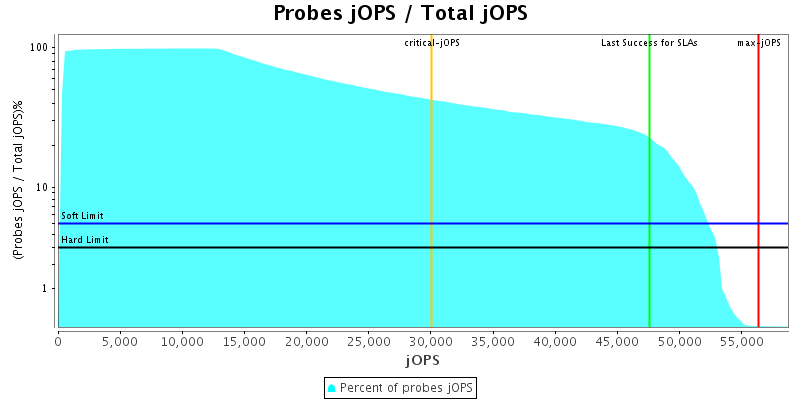

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 48 24
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 48 24
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 58716 IR
High-bound (settled) is 56876 IR
Copyright © 2012-2014 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2013 Version: [SPECjbb2013 1.0, January 22, 2013]
