Hewlett-Packard Company HP ProLiant DL360e Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Nov 6, 2013
SPEC license #: 3 Hardware Availability: Jan-2014 Software Availability: Sep-2013 Publication: Jan 22, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores20
Total Threads40
Total Memory Amount (GB)96
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant DL360e Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableJan-2014
ModelHP ProLiant DL360e Gen8
Form Factor2U
CPU NameIntel Xeon E5-2470 v2
CPU CharacteristicsIntel Turbo Boost up to 3.20 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System20
Cores Per Chip10
Threads Per System40
Threads Per Core2
VersionP73 01/20/2014
CPU Frequency (MHz)2400
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache25 MB (I+D) on chip per chip
Other CacheNone
Disk2 x 300 GB 15K SAS
File Systemext4
Memory Amount (GB)96
# and size of DIMM(s)12 x 8192 MB
Memory Details2Rx4 PC3-12800R ECC
# and type of Network Interface Cards (NICs)1 x I350 Quad Port Gigabit Ethernet Adapter
Power Supply Quantity and Rating (W)2 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.4 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.4 (Santiago)-2.6.32-358.el6.x86_64
AvailableFeb-2013
Bitness64
Notes
  • SELinux = Disabled
  • set GOVERNOR=performance in /etc/sysconfig/cpuspeed
Java Virtual Machine jvm_1
NameOracle Java SE 7u40
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.7.0_40
AvailableSep-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • HP Power Profile = Maximum Performance
    • Collaborative Power Control = Disabled
    • DIMM Voltage Preference = Optimized For Performance
    • Memory Power Savings Mode = Maximum Performance
    • Thermal Configuration = Maximum Cooling
    • Processor Power And Utilization Monitoring = Disabled
    • Memory Refresh Rate = 1x Refresh
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes Stopped unnecessary services (see SUT OS notes)
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:+UseBiasedLocking -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:-PrintCompilation -Xms29g -Xmx29g -Xmn27g -XX:+UseParallelOldGC -XX:ParallelGCThreads=20 -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=90 -XX:-UseAdaptiveSizePolicy -XX:+AggressiveOpts
Tuning
  • numactl used to affinitize each Backend JVM to a single memory node, eg
    • numactl --cpunodebind=$gnum --membind=$gnum
    Notes None
    JVM Instance jvm_TxInjector_1
    Parts of Benchmark TxInjector
    JVM Instance Description jvm_1
    Command Line -Xmn1536m -Xms2g -Xmx2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
    Tuning None
    Notes None
    max-jOPS = jOPS passed before the First Failure
    Pass/Fail Pass Pass Fail Fail Fail
    jOPS 48264 48772 49280 49788 50296
    critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
    Response time percentile is 99-th
    SLA (us) 10000 50000 100000 200000 500000 Geomean
    jOPS 8806 12447 15495 28704 37849 17915
      Percentile
      10-th 50-th 90-th 95-th 99-th 100-th
    500us - / 508 - / 508 - / 508 - / 508 - / 508 - / 508
    1000us 3048 / 3556 1524 / 2032 1016 / 1524 508 / 1016 - / 508 - / 508
    5000us 38103 / 38611 23370 / 22354 9145 / 9653 8129 / 8637 6605 / 5080 - / 508
    10000us 39627 / 40135 36071 / 36579 22354 / 22862 18289 / 18797 9653 / 7113 508 / 1016
    20000us 39627 / 40135 37087 / 37595 28958 / 29466 23878 / 22862 9653 / 8637 2540 / 1016
    50000us 40135 / 40643 38103 / 38611 31498 / 30990 26418 / 24894 12701 / 12193 2540 / 1016
    100000us 40643 / 41151 39119 / 39627 32515 / 33023 28958 / 29466 16765 / 14225 2540 / 1016
    200000us 43183 / 42167 40135 / 40643 36071 / 36579 32515 / 33023 28958 / 28450 8129 / 1016
    500000us 44708 / 45216 43183 / 43691 40135 / 40643 39119 / 39627 37595 / 38103 36579 / 34039
    1000000us 46232 / 46740 44708 / 45216 44199 / 44708 44199 / 44708 43183 / 43691 41659 / 42167
    Probes jOPS / Total jOPS

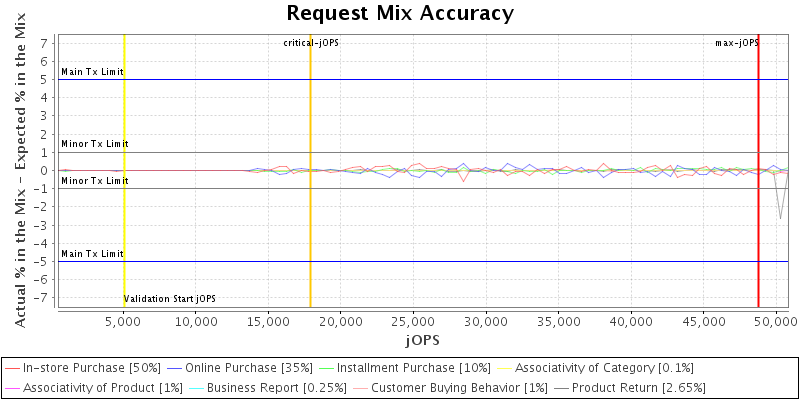

    Request Mix Accuracy
    Note
    (Actual % in the Mix - Expected % in the Mix) must be within:
    'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
    'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
    There were no non-critical failures in Response Time curve building

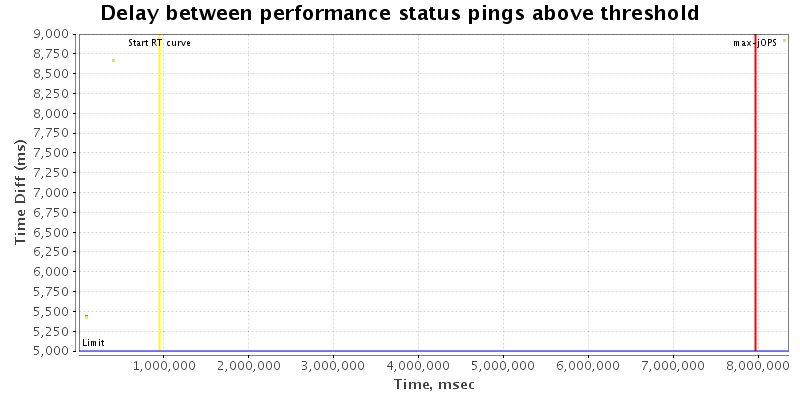

    Delay between status pings

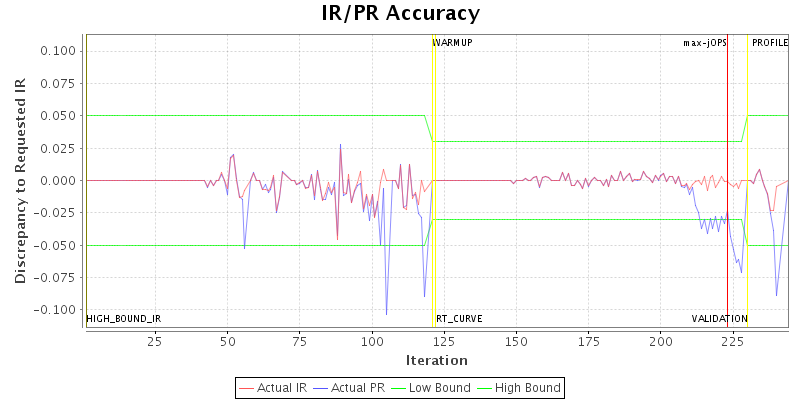

    IR/PR Accuracy
    This section lists properties only set by user
    Property Name Default Controller
    specjbb.group.count 1 2
    specjbb.txi.pergroup.count 1 1
    View table in csv format

    Level: COMPLIANCE
    Check Agent Result
    Check properties on compliance All PASSED

    Level: CORRECTNESS
    Check Agent Result
    Compare SM and HQ Inventory All PASSED
    High-bound (max attempted) is 50804 IR
    High-bound (settled) is 48964 IR
